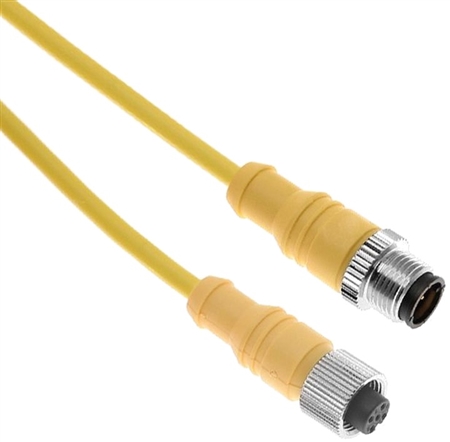

The Mencom MDCM-4MFP-5M Micro DC (M12) male/female straight shielded extension cordset features a 4 pin insert, 22 AWG wire and 5 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets use an M12 coupling nut and provide plug and play solutions for various applications.
Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Specifications
- Body- Yellow PVC
- Insulator- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 22/4 AWM 2661 Yellow PVC Jacket w/ Foil Mylar Shield
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22 AWG
- Pin Count- 4
- Cable Length- 5 meters (16.4 ft)
- Cable O.D.- 0.2
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head 1- Male Straight
- Orientation Head 2- Female Straight
- Coupling Thread 1- Male
- Coupling Thread 2- Female
- Mating Thread / Type Head- M12
- Nut- No
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
