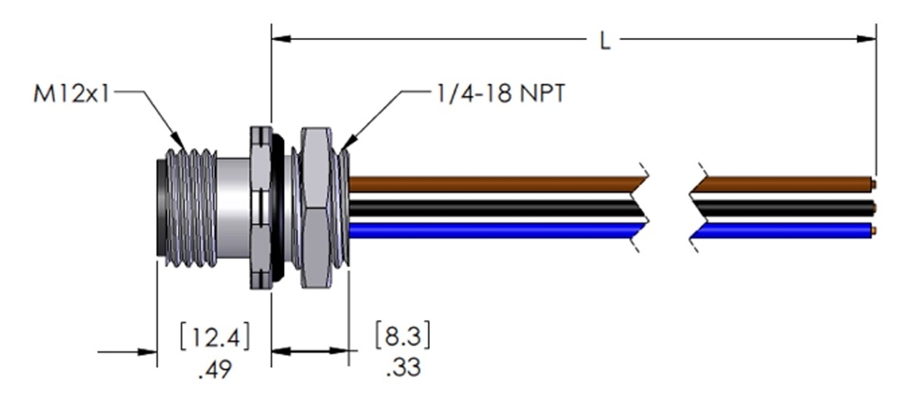

The Mencom MDC-4MR-4 Micro DC (M12) male straight receptacle features a 4 Pin insert, 22 gauge wire, 12" lead length and 1/4" NPT thread size. The shell is nickel plated brass with gold plated copper alloy contacts. The wire is rated at 300V. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Recommended mounting hole size: 0.53". Mencom MDC receptacles are adaptable and provide plug and play solutions for various applications.
Can be compatible with certain Turck Microfast M12 Receptacles
Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Specifications
- Body- Nickel Plated Brass
- Insulator- Polyamide
- Contacts- Gold Plated Copper Alloy
- Wire Gauge- 22 AWG UL1007/1569
- Rated Voltage- 300V
- Rated Current- 4 Amps
- Pin Count- 4
- Cable Length- 1 Foot (0.3 Meters)
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Male Straight
- Coupling Thread- Male
- Mounting Thread- 1/4" NPT
- Mating Thread- M12
- Mounting Style- Front Mount
- Nut- Yes
- Termination- Discrete
- Approvals- UL & CUL Listed
