Mencom MDC-4FR-2 M12 Receptacle, 4 Pole, Female Straight, 4A, 1/2" NPT

Mencom M12 Receptacle - MDC-4FR-2
Mencom MDC-4FR-2 M12 Receptacle, 4 Pole, Female Straight, 4A, 1/2" NPT

Alternative Views:

Price: $13.91
MFG: Mencom
Weight (lbs): 0.1

Quantity in Stock :201

In Stock
Product Code: MDC-4FR-2


The Mencom MDC-4FR-2 Micro DC (M12) female straight receptacle features a 4 Pin insert, 22 gauge wire, 12" lead length and 1/2" NPT thread size. The shell is clear anodized aluminum with gold plated copper alloy contacts. The wire is rated at 300V. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC receptacles are adaptable and provide plug and play solutions for various applications.


  • Body- Clear Anodized Aluminum
  • Insulator- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Wire Gauge- 22 AWG UL1007/1569
  • Rated Voltage- 300V
  • Rated Current- 4 Amps
  • Pin Count- 4
  • Cable Length- 1 Foot (0.3 Meters)
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Straight
  • Coupling Thread- Female

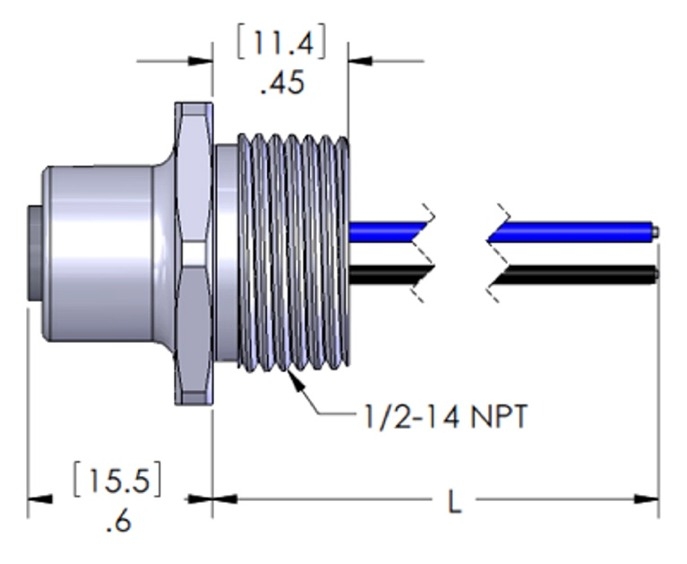

  • Mounting Thread- 1/2" NPT
  • Mating Thread- M12
  • Mounting Style- Front Mount
  • Nut- No
  • Termination- Discrete
  • Approvals- UL & CUL Listed

Mencom MDC-4FR-2

Additional Product Information
Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black

Can be compatible with certain Turck Microfast and Brad Harrison/Molex Micro-Change M12 Receptacles
