Mencom MDC-5MPX-2M M12 Cordset, 5 Pole, Male Straight, 18 AWG, 2 M

Mencom Micro DC Cordset - MDC-5MPX-2M
Mencom MDC-5MPX-2M M12 Cordset, 5 Pole, Male Straight, 2 M



Alternative Views:


Price: $28.19
MFG P/N: MDC-5MPX-2M
MFG: Mencom
Weight (lbs): 0.43

Quantity in Stock :17


Availability:
In Stock
Product Code: MDC-5MPX-2M
Qty:

Description

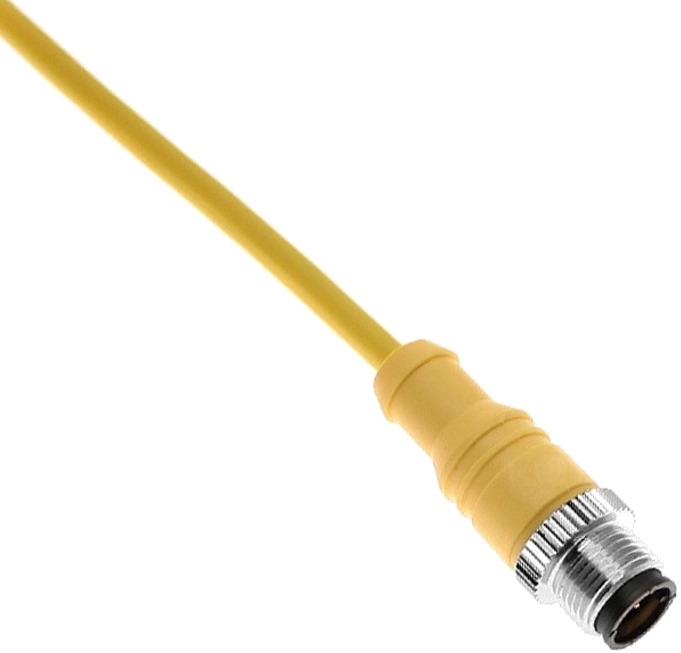

The Mencom MDC-5MPX-2M Micro DC (M12) male straight cordset features a 5 pin insert, 18 gauge wire and 2 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets use an M12 coupling nut with a single keyway, and provide plug and play solutions for various applications. Note: The ground pin is no longer a part of the 5 pin male M12 inserts

Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Pin #5 - Gray

Specifications

  • Body- Yellow PVC
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 18/5 AWM Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 18
  • Pin Count- 5
  • Cable Length- 2 meters (6.56 ft)
  • Cable O.D.- 0.29
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Male Straight
  • Coupling Thread- Male
  • Mating Thread / Type Head- M12
  • Nut- No
  • Approvals- UL & CUL Listed

Mencom 18 AWG 2 Meter Male M12 Molded Cable MDC-5MPX-2M

Additional Product Information
M12 Molded Cable Cordsets & Connectors Overview

Mencom M12 Molded Cordset Part Number Guide

Mencom Male Straight M12 Molded Cable Cordsets
Pin Count Cable Length (meters) Cable Type Wire AWG Part Number
2 1 Yellow PVC 22 MDC-2MP-1M
2 2 Yellow PVC 22 MDC-2MP-2M
2 4 Yellow PVC 22 MDC-2MP-4M
2 10 Yellow PVC 22 MDC-2MP-10M
3 1 Yellow PVC 22 MDC-3MP-1M
3 2 Yellow PVC 22 MDC-3MP-2M
3 4 Yellow PVC 22 MDC-3MP-4M
3 5 Yellow PVC 22 MDC-3MP-5M
3 1 Yellow PVC Shielded 22 MDCM-3MP-1M
3 10 Yellow PVC Shielded 22 MDCM-3MP-10M
4 1 Yellow PVC 22 MDC-4MP-1M
4 2 Yellow PVC 22 MDC-4MP-2M
4 4 Yellow PVC 22 MDC-4MP-4M
4 5 Yellow PVC 22 MDC-4MP-5M
4 10 Yellow PVC 22 MDC-4MP-10M
4 1 Yellow PVC 18 MDC-4MPX-1M
4 2 Yellow PVC 18 MDC-4MPX-2M
4 4 Yellow PVC 18 MDC-4MPX-4M
4 5 Yellow PVC 18 MDC-4MPX-5M
4 10 Yellow PVC 18 MDC-4MPX-10M
4 15 Yellow PVC 18 MDC-4MPX-15M
4 1 Yellow PUR 22 MDCP-4MP-1M
4 2 Yellow PUR 22 MDCP-4MP-2M
4 10 Yellow PUR 22 MDCP-4MP-10M
5 1 Yellow PVC 22 MDC-5MP-1M
5 2 Yellow PVC 22 MDC-5MP-2M
5 4 Yellow PVC 22 MDC-5MP-4M
5 5 Yellow PVC 22 MDC-5MP-5M
5 6 Yellow PVC 22 MDC-5MP-6M
5 10 Yellow PVC 22 MDC-5MP-10M
5 2 Yellow PVC 18 MDC-5MPX-2M
5 5 Yellow PVC 18 MDC-5MPX-5M
5 5 Yellow PVC Shielded 22 MDCM-5MP-5M
5 2 Yellow PUR 22 MDCP-5MP-2M
5 5 Yellow PUR 22 MDCP-5MP-5M
5 10 Yellow PUR 22 MDCP-5MP-10M
8 2 Yellow PUR 24 MDCP-8MP-2M
8 5 Yellow PUR 24 MDCP-8MP-5M
8 10 Yellow PUR 24 MDCP-8MP-10M
12 2 Black PUR Shielded 24 MDCPM-12MP-2M-B
12 5 Black PUR Shielded 24 MDCPM-12MP-5M-B
12 10 Black PUR Shielded 24 MDCPM-12MP-10M-B
