Mencom MDC-2MP-10M M12 Cordset, 2 Pole, Male Straight, 10 M

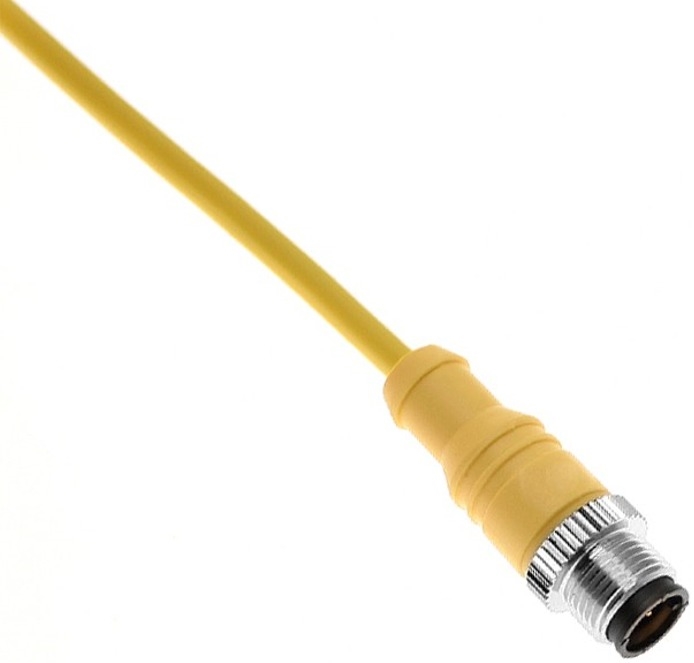

Mencom M12 Male Straight Cordset - MDC-2MP-10M
Mencom MDC-2MP-10M M12 Cordset, 2 Pole, Male Straight, 10 M



Alternative Views:


Price: $33.29
MFG P/N: MDC-2MP-10M
MFG: Mencom
Weight (lbs): 0.7

Quantity in Stock :9


Availability:
In Stock
Product Code: MDC-2MP-10M
Qty:

Description


The Mencom MDC-2MP-10M Micro DC (M12) male straight cordset features a 2 pin insert, 22 gauge wire and 10 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets use an M12 coupling nut, a single keyway, and provide plug and play solutions for a number of applications.

Pin #1 - Not Used
Pin #2 - Not Used
Pin #3 - Brown
Pin #4 - Blue

Specifications

  • Body- Yellow PVC
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/2 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 22
  • Pin Count- 2
  • Cable Length- 10 meters (32.8 ft)
  • Cable O.D.- 0.2
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Male Straight
  • Coupling Thread- Male
  • Mating Thread / Type Head- M12
  • Nut- No
  • Approvals- UL & CUL Listed

Mencom 2 Pin Male M12 Molded Cordset MDC-2MP-10M

Additional Product Information
M12 Molded Cable Cordsets & Connectors Overview

Mencom M12 Molded Cordset Part Number Guide

Mencom Male Straight M12 Molded Cable Cordsets
Pin Count Cable Length (meters) Cable Type Wire AWG Part Number
2 1 Yellow PVC 22 MDC-2MP-1M
2 2 Yellow PVC 22 MDC-2MP-2M
2 4 Yellow PVC 22 MDC-2MP-4M
2 10 Yellow PVC 22 MDC-2MP-10M
3 1 Yellow PVC 22 MDC-3MP-1M
3 2 Yellow PVC 22 MDC-3MP-2M
3 4 Yellow PVC 22 MDC-3MP-4M
3 5 Yellow PVC 22 MDC-3MP-5M
3 1 Yellow PVC Shielded 22 MDCM-3MP-1M
3 10 Yellow PVC Shielded 22 MDCM-3MP-10M
4 1 Yellow PVC 22 MDC-4MP-1M
4 2 Yellow PVC 22 MDC-4MP-2M
4 4 Yellow PVC 22 MDC-4MP-4M
4 5 Yellow PVC 22 MDC-4MP-5M
4 10 Yellow PVC 22 MDC-4MP-10M
4 1 Yellow PVC 18 MDC-4MPX-1M
4 2 Yellow PVC 18 MDC-4MPX-2M
4 4 Yellow PVC 18 MDC-4MPX-4M
4 5 Yellow PVC 18 MDC-4MPX-5M
4 10 Yellow PVC 18 MDC-4MPX-10M
4 15 Yellow PVC 18 MDC-4MPX-15M
4 1 Yellow PUR 22 MDCP-4MP-1M
4 2 Yellow PUR 22 MDCP-4MP-2M
4 10 Yellow PUR 22 MDCP-4MP-10M
5 1 Yellow PVC 22 MDC-5MP-1M
5 2 Yellow PVC 22 MDC-5MP-2M
5 4 Yellow PVC 22 MDC-5MP-4M
5 5 Yellow PVC 22 MDC-5MP-5M
5 6 Yellow PVC 22 MDC-5MP-6M
5 10 Yellow PVC 22 MDC-5MP-10M
5 2 Yellow PVC 18 MDC-5MPX-2M
5 5 Yellow PVC 18 MDC-5MPX-5M
5 5 Yellow PVC Shielded 22 MDCM-5MP-5M
5 2 Yellow PUR 22 MDCP-5MP-2M
5 5 Yellow PUR 22 MDCP-5MP-5M
5 10 Yellow PUR 22 MDCP-5MP-10M
8 2 Yellow PUR 24 MDCP-8MP-2M
8 5 Yellow PUR 24 MDCP-8MP-5M
8 10 Yellow PUR 24 MDCP-8MP-10M
12 2 Black PUR Shielded 24 MDCPM-12MP-2M-B
12 5 Black PUR Shielded 24 MDCPM-12MP-5M-B
12 10 Black PUR Shielded 24 MDCPM-12MP-10M-B
