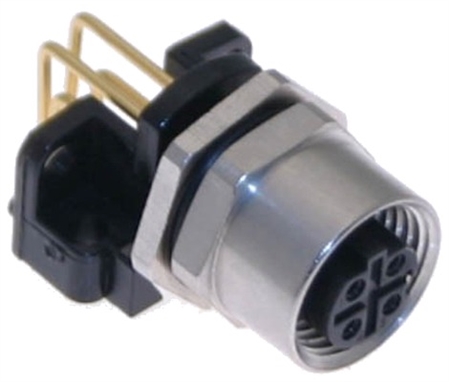

Mencom MDC-5FR-PCB-R M12 Receptacle, 5 Pole, Female Right Angle, 4A, M12

Alternative Views:

Price: $17.66

Note: Delivery: 2-5 Business Days
MFG P/N: MDC-5FR-PCB-R
MFG: Mencom
Weight (lbs): 0.1

Quantity in Stock :13

Availability: In Stock
Product Code: MDC-5FR-PCB-R

Qty:

Description

The Mencom MDC-5FR-PCB-R Micro DC (M12) female right angle receptacle features a 5 Pin insert and M12 thread size. The body is polyamide with gold plated copper alloy contacts. The MDC-5FR-PCB-R is rated at 250V. Rated IP 69. Mencom MDC receptacles are adaptable and provide plug and play solutions for various applications. They are known by their M12 mating thread and single keyway.

Specifications

Body- Polyamide
Fittings- Nickel Plated Brass
Contacts- Gold Plated Copper Alloy
Rated Voltage- 250V
Rated Current- 4 Amps
Pin Count- 5
Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
Orientation Head- Female Right Angle
Coupling Thread- Female
Mounting Thread- M12
Mating Thread- M12
Mounting Style- Front Mount
Nut- Yes
Termination- PCB
Approvals- UL & CUL Listed
