Mencom MDC-2MP-2M M12 Cordset, 2 Pole, Male Straight, 2 M

Mencom Micro DC Cordset - MDC-2MP-2M
Mencom MDC-2MP-2M M12 Cordset, 2 Pole, Male Straight, 2 M



Alternative Views:


Our Price: $14.57
MFG P/N: MDC-2MP-2M
MFG: Mencom
Weight (lbs): 0.16


Availability:
Call for Availability
Product Code: MDC-2MP-2M
Qty:


Description


The Mencom MDC-2MP-2M Micro DC (M12) male straight cordset features a 2 pin insert, 22 gauge wire and 2 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 300V and 105 C. Rated IP 67. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets use an M12 coupling nut and provide plug and play solutions for various applications.

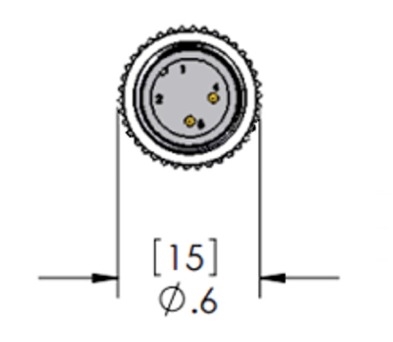

Pin #1 - Not Used
Pin #2 - Not Used
Pin #3 - Brown
Pin #4 - Blue

Specifications

  • Body- Yellow PVC
  • Insulator- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/2 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 A
  • Wire Gauge- 22
  • Pin Count- 2
  • Cable Length- 2 meters (6.56 ft)
  • Cable O.D.- 0.2
  • Ingress Protection- IP 67
  • Orientation Head- Male Straight
  • Coupling Thread- Male
  • Mating Thread / Type Head- M12
  • Nut- No
  • Approvals- UL & CUL Listed

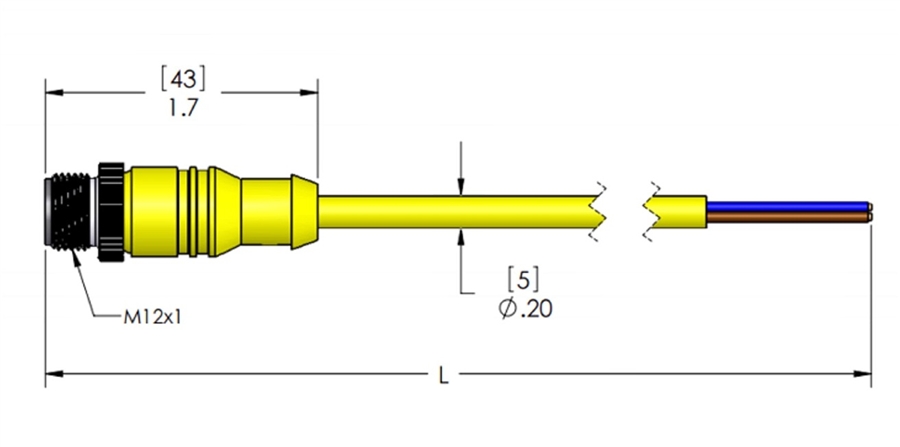

MDC-2MP-2M Mencom Micro DC 2 Pin Male M12 Molded Cable

Additional Product Information
M12 Molded Cable Cordsets & Connectors Overview

Can be compatible with certain Turck Microfast and Brad Harrison/Molex Micro-Change M12 connectors

Mencom M12 Molded Cordset Part Number Guide

Mencom Male Straight M12 Molded Cable Cordsets
Pin Count Cable Length (meters) Cable Type Wire AWG Part Number
2 1 Yellow PVC 22 MDC-2MP-1M
2 2 Yellow PVC 22 MDC-2MP-2M
2 4 Yellow PVC 22 MDC-2MP-4M
2 10 Yellow PVC 22 MDC-2MP-10M
3 1 Yellow PVC 22 MDC-3MP-1M
3 2 Yellow PVC 22 MDC-3MP-2M
3 4 Yellow PVC 22 MDC-3MP-4M
3 5 Yellow PVC 22 MDC-3MP-5M
3 1 Yellow PVC Shielded 22 MDCM-3MP-1M
3 10 Yellow PVC Shielded 22 MDCM-3MP-10M
4 1 Yellow PVC 22 MDC-4MP-1M
4 2 Yellow PVC 22 MDC-4MP-2M
4 4 Yellow PVC 22 MDC-4MP-4M
4 5 Yellow PVC 22 MDC-4MP-5M
4 10 Yellow PVC 22 MDC-4MP-10M
4 1 Yellow PVC 18 MDC-4MPX-1M
4 2 Yellow PVC 18 MDC-4MPX-2M
4 4 Yellow PVC 18 MDC-4MPX-4M
4 5 Yellow PVC 18 MDC-4MPX-5M
4 10 Yellow PVC 18 MDC-4MPX-10M
4 15 Yellow PVC 18 MDC-4MPX-15M
4 1 Yellow PUR 22 MDCP-4MP-1M
4 2 Yellow PUR 22 MDCP-4MP-2M
4 10 Yellow PUR 22 MDCP-4MP-10M
5 1 Yellow PVC 22 MDC-5MP-1M
5 2 Yellow PVC 22 MDC-5MP-2M
5 4 Yellow PVC 22 MDC-5MP-4M
5 5 Yellow PVC 22 MDC-5MP-5M
5 6 Yellow PVC 22 MDC-5MP-6M
5 10 Yellow PVC 22 MDC-5MP-10M
5 2 Yellow PVC 18 MDC-5MPX-2M
5 5 Yellow PVC 18 MDC-5MPX-5M
5 5 Yellow PVC Shielded 22 MDCM-5MP-5M
5 2 Yellow PUR 22 MDCP-5MP-2M
5 5 Yellow PUR 22 MDCP-5MP-5M
5 10 Yellow PUR 22 MDCP-5MP-10M
8 2 Yellow PUR 24 MDCP-8MP-2M
8 5 Yellow PUR 24 MDCP-8MP-5M
8 10 Yellow PUR 24 MDCP-8MP-10M
12 2 Black PUR Shielded 24 MDCPM-12MP-2M-B
12 5 Black PUR Shielded 24 MDCPM-12MP-5M-B
12 10 Black PUR Shielded 24 MDCPM-12MP-10M-B
