Mencom MDC-4MP-10M-R M12 Cordset, 4 Pole, Male, 10 Meter

Mencom Micro DC Cordset - MDC-4MP-10M-R
Mencom MDC-4MP-10M-R M12 Cordset, 4 Pole, Male, 10 Meter



Alternative Views:


Price: $40.85
Note: Please call or email [email protected] for alternatives
MFG P/N: MDC-4MP-10M-R
MFG: Mencom
Weight (lbs): 0.85

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: MDC-4MP-10M-R
Qty:

Description

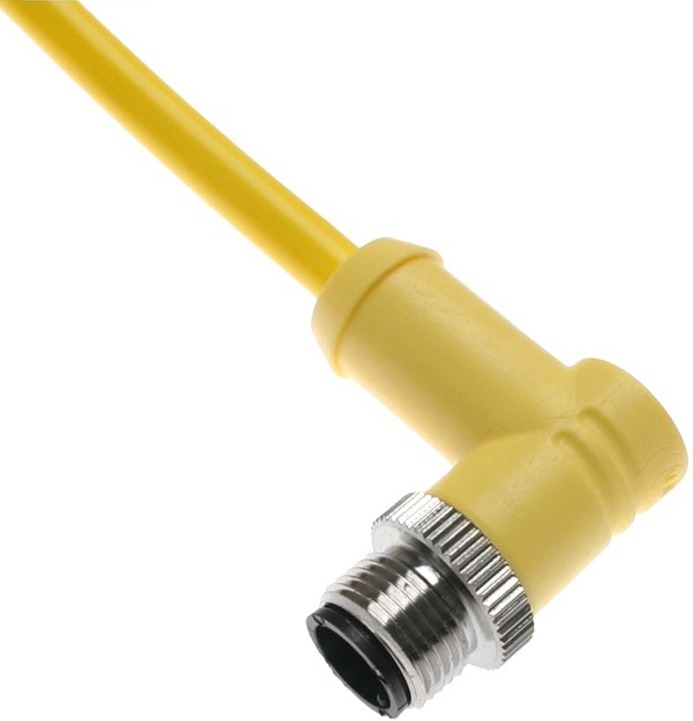

The Mencom MDC-4MP-10M-R Micro DC (M12) male right angle cordset features a 4 pin insert, 22 gauge wire and 10 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets use an M12 coupling nut and provide plug and play solutions for various applications.

Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Pin #5 - Not Used

Specifications

  • Body- Yellow PVC
  • Insulator- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/4 AWM 2661 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 22
  • Pin Count- 4
  • Cable Length- 10 meters (32.8 ft)
  • Cable O.D.- 0.2
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure an high temperature water jets from any direction)
  • Orientation Head- Male Right Angle
  • Coupling Thread- Male
  • Mating Thread / Type Head- M12
  • Nut- No
  • Approvals- UL & CUL Listed

Mencom MDC-4MP-10M-R Male Right Angle 4 Pin 10 Meter M12 Molded Cable

Additional Product Information
M12 Molded Cable Cordsets & Connectors Overview

Can be compatible with certain Turck Microfast M12 connectors

Mencom M12 Molded Cordset Part Number Guide

Mencom Male Right Angle M12 Molded Cable Cordsets
Pin Count Cable Length (meters) Cable Type Wire AWG Part Number
3 1 Yellow PVC 22 MDC-3MP-1M-R
3 2 Yellow PVC 22 MDC-3MP-2M-R
3 2 Yellow PVC 18 MDC-3MPX-2M-R
4 1 Yellow PVC 22 MDC-4MP-1M-R
4 2 Yellow PVC 22 MDC-4MP-2M-R
4 5 Yellow PVC 22 MDC-4MP-5M-R
4 10 Yellow PVC 22 MDC-4MP-10M-R
5 4 Yellow PVC 22 MDC-5MP-4M-R
5 5 Yellow PVC 22 MDC-5MP-5M-R
5 10 Yellow PVC 22 MDC-5MP-10M-R
5 10 Yellow PVC Shielded 22 MDCM-5MP-10M-R
8 10 Yellow PUR 24 MDCP-8MP-10M-R
