Mencom MDC-4FR-PCB M12 Receptacle, 4 Pole, Female Straight, 4A, M12

Mencom M12 Receptacle - MDC-4FR-PCB
Mencom MDC-4FR-PCB M12 Receptacle, 4 Pole, Female Straight, 4A, M12

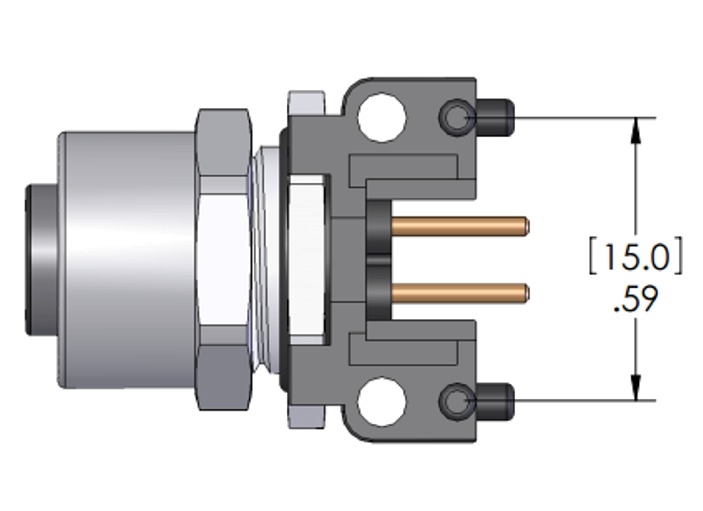

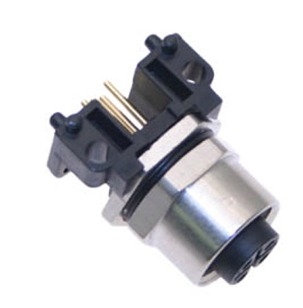

Alternative Views:
Price: $9.31
Note: Delivery: 2-5 Business Days
MFG P/N: MDC-4FR-PCB
MFG: Mencom
Weight (lbs): 0.1

Quantity in Stock :119


Availability: In Stock
Product Code: MDC-4FR-PCB
Qty:


Description


The Mencom MDC-4FR-PCB Micro DC (M12) female straight receptacle features a 4 Pin insert and M12 thread size. The body is polyamide with gold plated copper alloy contacts. The MDC-4FR-PCB is rated at 250V. Rated IP 69. Mencom MDC receptacles are adaptable and provide plug and play solutions for various applications.

Specifications

  • Body- Polyamide
  • Metal Hardware- Nickel Plated Brass
  • Contacts- Gold Plated Copper Alloy
  • Rated Voltage- 250V
  • Rated Current- 4 Amps
  • Pin Count- 4
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Temperature- -40 C to 105 C (-40 F to 221 F)
  • Orientation Head- Female Straight
  • Coupling Thread- Female
  • Mounting Thread- M12
  • Mating Thread- M12
  • Mounting Style- Front Mount
  • Nut- Yes
  • Termination- PCB
  • Approvals- UL & CUL Listed
