Mencom MDC-4FR-FLPG9 M12 Receptacle, 4 Pole, Female, Front Mount, PG 9

Mencom M12 Front Mount Receptacle - MDC-4FR-FLPG9
Mencom MDC-4FR-FLPG9 M12 Receptacle, 4 Pole, Female, Front Mount, PG 9

Alternative Views:

Price: $18.32
Note: Please call or email [email protected] for alternatives
MFG: Mencom
Weight (lbs): 0.1

Quantity in Stock :(Out of Stock)

Out of Stock
Product Code: MDC-4FR-FLPG9


The Mencom MDC-4FR-FLPG9 Micro DC (M12) female receptacle features a 4 Pin insert, 22 gauge wire, 12" lead length and a PG 9 mounting thread size. The shell is nickel plated brass with gold plated copper alloy contacts. The wire is rated at 300V, 4 A, and 105 C. Rated IP 69. Mencom MDC receptacles have plug and play abilities for a variety of applications. They feature a single keyway and are classified by their M12 mating thread. This front mount receptacle also has a unique front locking nut, intended for applications that need the keyway to be at a certain orientation. The connector is threaded into a PG 9 threaded opening, then the lock nut is tightened after the the keyway is properly positioned.


  • Shell- Nickel Plated Brass
  • Contacts- Gold Plated Copper Alloy
  • Insulator- Polyamide
  • Wires- 22 AWG UL1007/1569
  • Lock Nut- Nickel Plated Brass
  • Rated Voltage- 300V
  • Rated Current- 4 Amps
  • Pin Count- 4
  • Lead Length- 1 Foot (0.3 Meters)
  • Temperature- -40 C to 105 C (-40 F to 221 F)
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Straight
  • Coupling Thread- Female
  • Mounting Thread- PG 9

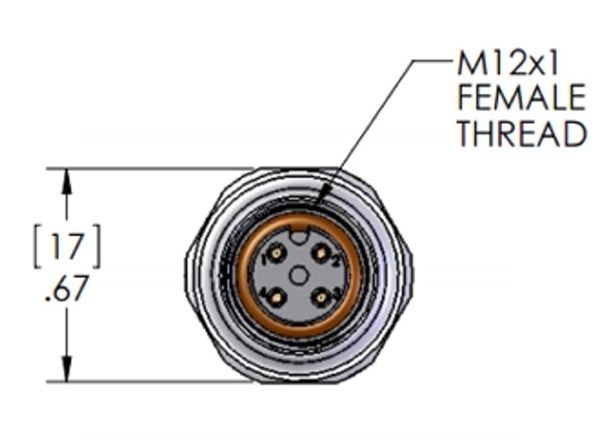

  • Mating Thread- M12
  • Mounting Style- Front Mount w/ Front Lock Nut
  • Termination- Discrete
  • Color Code- DC
  • Approvals- UL & CUL Listed

PG 9 4 Pin Female M12 Front Mount Receptacle Mencom MDC-4FR-FLPG9

Additional Product Information
Pin #1- Brown
Pin #2- White
Pin #3- Blue
Pin #4- Black
Pin #5- Not Used
