The Red Lion Sixnet ^® Series SLX-6ES-5ST is a 6 port unmanaged Industrial Ethernet Switch. Housed in an aluminum DIN rail enclosure, this SlimLine Plus SLX series switch features 20 km singlemode fiber optic cable with an ST style fiber connector. It has four 10/100BaseTX RJ45 ports and two 100BaseFX fiber ports. It is intended to work at an efficient speed for real-time performance, as well as to withstand the conditions of industrial environments. The plug and play capability ensures that the switch will operate immediately, without requiring a complex user set-up beforehand.

PRODUCT FEATURES

• Compact housing
• Unmanaged plug and play operation
• Full IEEE 802.3 Compliance
• 6 Ports: Four RJ45 ports, two fiber ports
• Extended Environmental Specifications
• -40 C to 85 C Operating temperature
• >1M+ Hours MTBF
• Supports Full/Half Duplex Operation
• LED link/activity status indication
• Auto senses speed and flow
• MDIX auto sensing cable
• Redundant Power Inputs (10-30VDC)
• Power inputs with surge protection
• Intelligent routing to eliminate collisions
• Self test/alarm output contact
• Reverse polarity protection
• Rugged Metal DIN-Rail Enclosure
• UL/CSA (CUL), CE, Hazardous Locations (Zone 2) rated

Red Lion Sixnet SLX-6ES Series User Manual

Red Lion Sixnet SLX-6ES-5ST Ethernet Switch

Ethernet Performance
Unmanaged, Store & Forward, Wire Speed
Full Duplex Operation with flow control
MAC Addresses supported: 1024
Memory Bandwidth: 3.2 Gbps
Typical Latency for 10Mbps Ports: 16 us + frame time
Typical Latency for 100Mbps Ports: 5 us + frame time
Ethernet Isolation: 1500 VRMS 1 min
RJ45 Ports: 10/100BaseTX
RJ45 MDI/MDIX Auto-crossover
Auto-polarity for crossed +/- signals
Auto negotiation for 10 or 100 Mbps
Fiber Optic Port Speed: 100BaseFX (100Mbps)
Full Duplex Operation with flow control
Typical Fiber Wavelength: 1310 nm
Fiber max. Distance: 20 km for singlemode 9-10/125 um ST
Ethernet Compliance
IEEE 802.3 (10Mbps Ethernet supports legacy devices)
IEEE 802.3u (Fast Ethernet 100Mbps for new devices)
IEEE 802.3x (Full-Duplex with flow control)
Power Input
Input Power: 5 W
Transient Protection: 15,000 watts peak
Spike Protection: 5000 watts (10 times for 10 uS)
Environmental
Operating Temperature: -40 C to 85 C (cold startup -40 C)
Storage Temperature: -40 C to 85 C
Humidity (Non-Condensing): 5 to 95% RH
Vibration & Shock: IEC60068-2-6, -27
OK Alarm Output
Shows power and operational status
Voltage equal to switch input voltage
Max current output: 0.5 A
Standards Compliance
Electrical Safety: UL 508/CSA C22.2/14, EN61010-1, CE
EMC: FCC Part 15, ICES-003, EN61000-6-2/4
Hazardous Locations: ISA 12.12.01/CSA C22.2/213 (Class I, Div 2),
EN60079-15 (Zone 2, Category 3), CE (ATEX)
Maritime: Marine & Offshore per ABS
RoHS and WEEE Compliant
Physical
DIN-Rail or panel mount

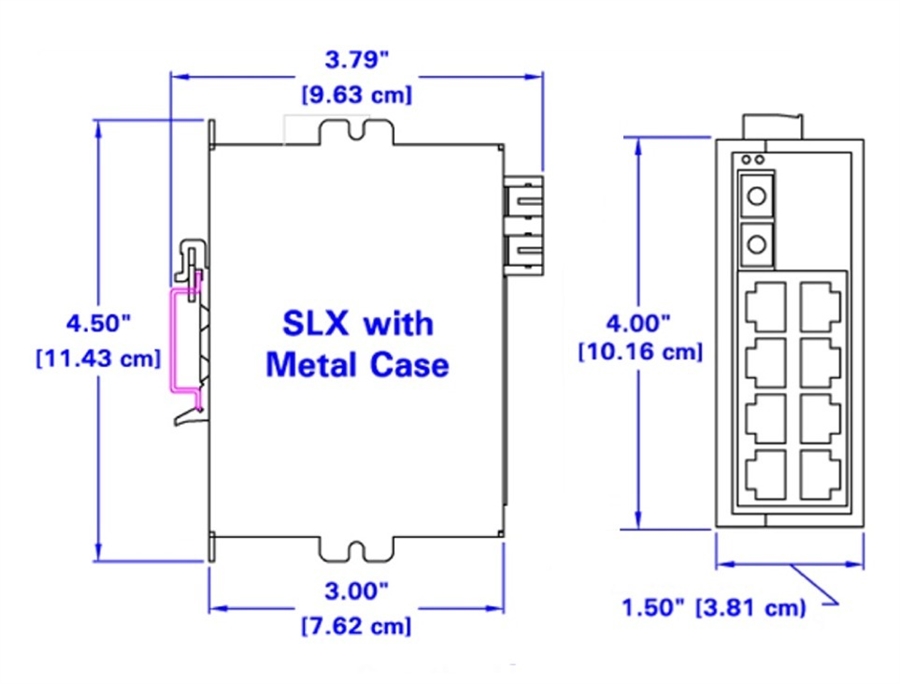

Dimensions: 4.5" H x 1.5" W x 3.79" L
Case: Corrosion-resistant aluminum, rated IP 40
