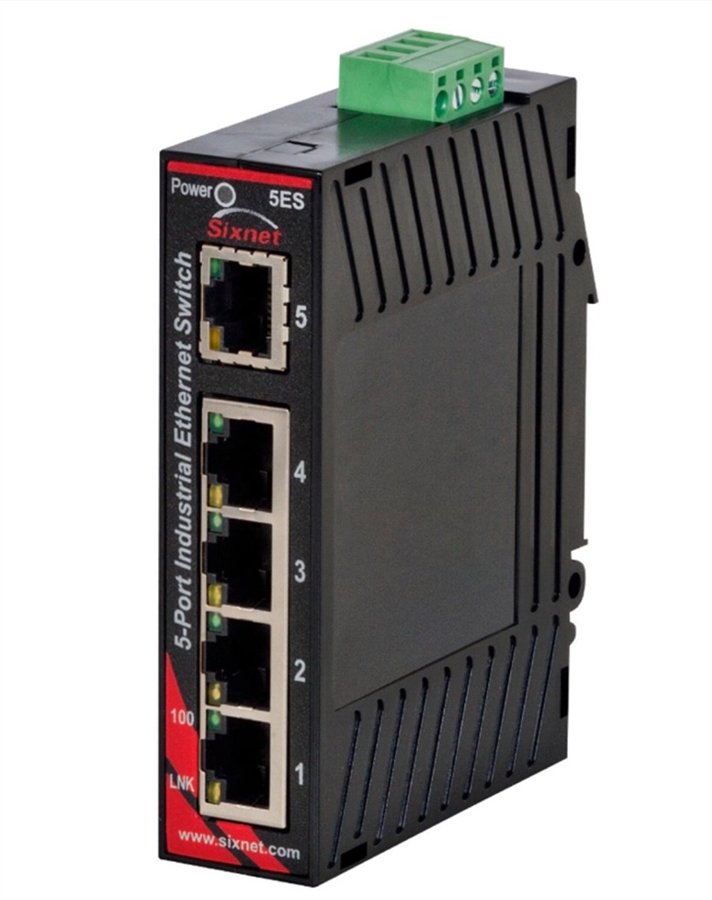

The Red Lion Sixnet
® Series SL-5ES-1 is an unmanaged five port Industrial Ethernet Switch. This SlimLine SL series switch is housed in a Lexan DIN rail enclosure, and features five 10/100BaseTX RJ45 ports. It is made to operate for the best real-time performance, as well as to withstand the demands of industrial applications. No complicated user set-up is necessary beforehand, as the switch has total plug and play capability, which saves time during installation. The SlimLine housing ensures that it won't take up much space, leaving more room on the DIN-Rail.
PRODUCT FEATURES
- Compact Housing
- Unmanaged Plug & Play Capability
- Full IEEE 802.3 Compliance
- 5 RJ45 Ports
- Extended Environmental Specifications
- -40 C to 60 C Operating Temperature
- >1M+ Hours MTBF
- Supports Full/Half Duplex Operation
- LED Link/Activity Status Indication
- Auto Senses Speed and Flow
- MDIX Auto Sensing Cable
- Redundant Power Inputs (10-30 VDC)
- Power Inputs with Surge Protection
- Lexan DIN-Rail Enclosure
- Fast wire-speed switching
- Intelligent routing to prevent collisions
- Auto Polarity Corrects Crossed Signals
- UL/CSA (CUL), CE & Hazardous Locations (Zone 2) & Maritime rated
Red Lion Sixnet SL-5ES Series Downloads
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
Ethernet Performance
Unmanaged, Store & Forward Wire Speed Switching
Automatic Learning, Aging, Migration for Addresses
Typical Latency for 10Mbps Ports: 16 us + frame time- varies on load
Typical Latency for 100Mbps Ports: 5 us + frame time- varies on load
Full Duplex Operation w/ Flow Control
MAC Addresses supported: 1024
Memory Bandwidth: 3.2 Gbps
Ethernet Isolation: 1500 VRMS 1 min
Ethernet Ports
Shielded RJ45 Ports: 10/100BaseTX
RJ45 Port Speed Auto-negotiation
RJ45 MDI/MDIX Auto-crossover
Auto-Polarity corrects crossed +/- signals
Ethernet Compliance
IEEE 802.3 (10Mbps Ethernet supports legacy devices)
IEEE 802.3u (Fast Ethernet 100Mbps for new devices)
IEEE 802.3x (Full-Duplex with flow control)
Power Input
Typical Input Power: 2 W (all ports active)
Transient Protection: 15,000 watts peak
Spike Protection: 5000 watts (10 times for 10 uS)
Environmental
Operating Temperature: -40 C to 60 C
Storage Temperature: -40 C to 85 C
Humidity (Non-Condensing): 5 to 95% RH
Vibration & Shock: IEC60068-2-6
Standards Compliance
Electrical Safety: UL 508/CSA C22.2/14, EN61010-1, CE
EMC: FCC Part 15, ICES-003, EN55022, EN61000-6, CE
Hazardous Locations: UL 1604/CSA C22.2/213 (Class I, Div 2),
EN60079-15 (Zone 2, Category 3), CE (ATEX)
Maritime: Marine & Offshore per ABS
Physical
DIN-Rail or Panel Mount
Dimensions: 4" H x 1" W x 3.26" L
Case: UL94V0 Lexan rated IP 40
|
|
|
|
|
|
|
