The Red Lion Sixnet
® Series SLX-3ES-3SC is a 3 port unmanaged copper to fiber industrial media converter. This SlimLine Plus SLX series switch is housed in an aluminum DIN-Rail enclosure, and features 20km singlemode fiber optic cable with an SC style fiber connector. It has two 10/100BaseTX RJ45 ports and one 100BaseFX fiber port. It is made to operate at an optimal speed for real-time data, as well as to meet the demands of industrial networks. The plug and play capability indicates that the switch is ready to go, without needing a user set-up beforehand. This switch works well in applications such as video & security, transportation, oil & gas, maritime, and mining. Comes with a 5 year warranty on defects in manufacturing or design.
PRODUCT FEATURES
- Compact housing
- Unmanaged plug and play operation
- Full IEEE 802.3 Compliance
- 3 Ports: Two RJ45 ports, One fiber port
- Extended Environmental Specifications
- -40 C to 85 C Operating temperature
- >1M+ Hours MTBF
- Supports Full/Half Duplex Operation
- LED link/activity status indication
- Auto senses speed and flow
- MDIX auto sensing cable
- Redundant Power Inputs (10-30VDC)
- Power inputs with surge protection
- Intelligent routing of messages
- Rugged Metal DIN-Rail Enclosure
- Hazardous Locations (Class I, Division 2 and Zone 2) rated
Red Lion Sixnet SLX-3ES Series Downloads
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
Ethernet Performance
Unmanaged, Store & Forward Wire Speed Switching, Non-blocking
Full/Half Duplex Operation with flow control
MAC Addresses supported: 1024
Memory Bandwidth: 3.2 Gbps
Typical Latency for 10Mbps Ports: 16 us + frame time
Typical Latency for 100Mbps Ports: 5 us + frame time
Ethernet Isolation: 1500 VRMS 1 min
RJ45 Copper Ports
RJ45 Ports: 10/100BaseTX
Auto detect full/half duplex
RJ45 MDI/MDIX Auto-crossover
RJ45 TD & RD auto-polarity
Fiber Optic Port
Fiber Port: 100BaseFX
Connector style: SC
Singlemode: 20KM, 9/125 micron fiber
Power Input
Power consumption: 3 W
Transient Protection: 15,000 watts peak
Spike Protection: 5000 watts (10 times for 10 uS)
Environmental
Operating Temperature: -40 C to 85 C (cold startup -40 C)
Storage Temperature: -40 C to 85 C
Humidity (Non-Condensing): 5 to 95% RH
Vibration & Shock: IEC60068-2-6, -27
Standards & Compliance
IEEE 802.3u, IEEE 802.3, IEEE 802.3x, IEEE 802.1D/w, IEEE 802.1p,
IEEE 802.1Q
Electrical Safety: UL 508/CSA C22.2/14, EN61010-1, CE
EMC: FCC Part 15, ICES-003, EN61000-6-4, EN61000-6-2, CE
Hazardous Locations: ISA 12.12.01, CSA C22.2/213 (Class I, Div 2),
EN60079-15 (Zone 2, Category 3), CE (ATEX)
Maritime/Marine/Offshore per ABS
NEMA TS-2 for traffic control systems
RoHS and WEEE Compliant
Physical
DIN-Rail or panel mount

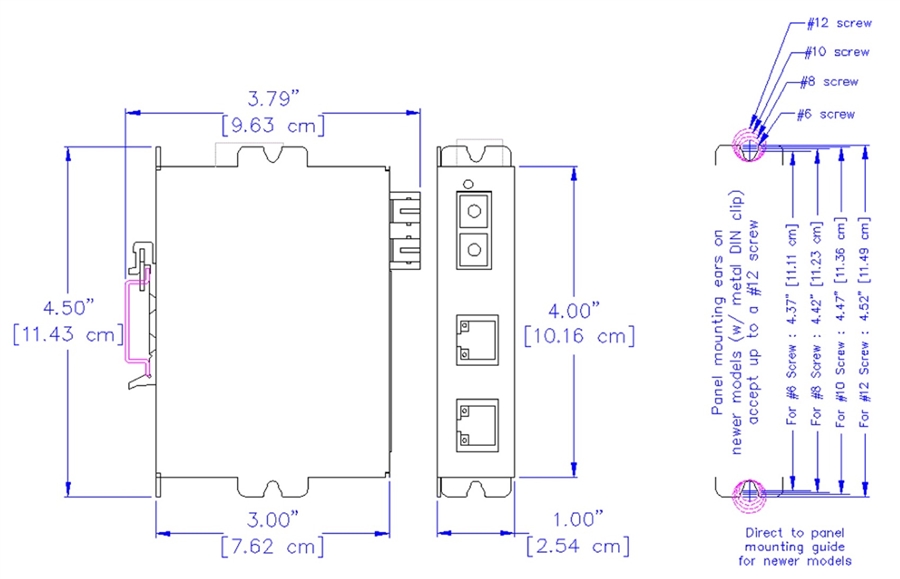

Dimensions: 4.5" H x 1" W x 3.79" L
Case: Corrosion-resistant aluminum, rated IP 40
|
|
|
|
|
|
|
