The Red Lion Sixnet

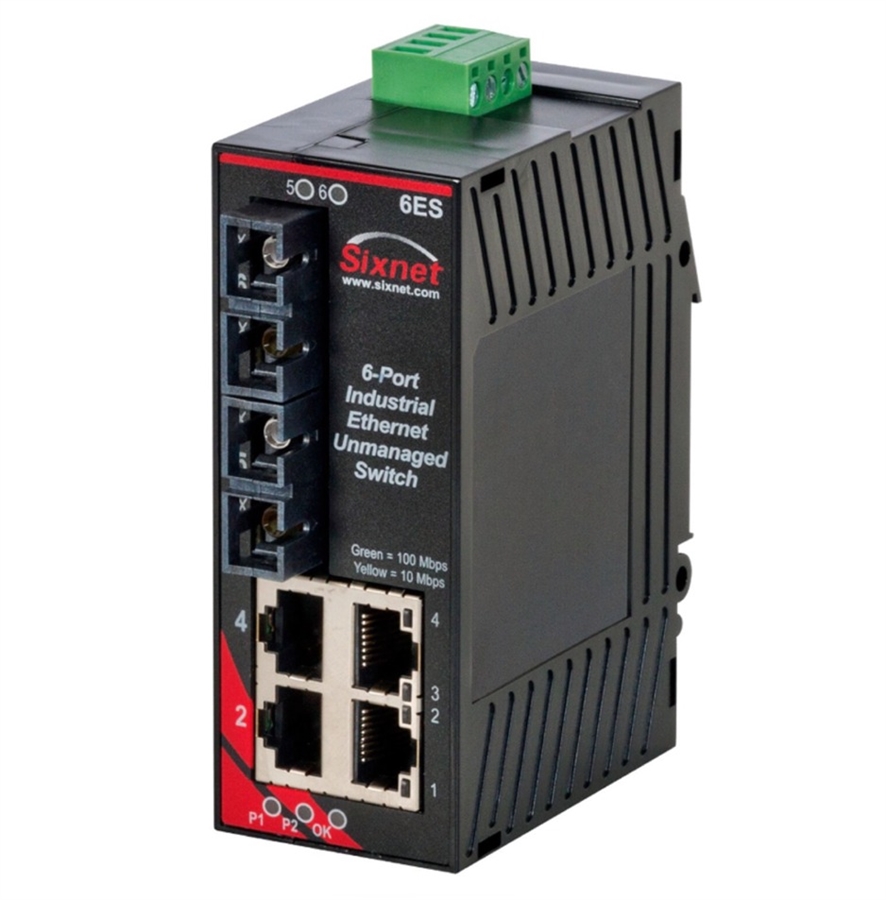

® Series SL-6ES-5SCL is an unmanaged 6 port Industrial Ethernet Switch. This SlimLine SL series switch is housed in a Lexan DIN rail enclosure, and features 60km singlemode fiber optic cable with an SC style fiber connector. It is made to work at an optimum speed for real-time operation, as well as to withstand the demands of industrial applications. No complicated user set-up is needed, as the switch has plug and play capability, so it is totally functional from the start.
PRODUCT FEATURES
- Compact Housing
- Unmanaged Plug & Play Capability
- Full IEEE 802.3 Compliance
- 6 Ports: Four RJ45 Ports, Two Fiber Optic Ports
- Extended Environmental Specifications
- -40 C to 60 C Operating Temperature
- >1M+ Hours MTBF
- Supports Full/Half Duplex Operation
- LED Link/Activity Status Indication
- Auto Senses Speed and Flow
- MDIX Auto Sensing Cable
- Redundant Power Inputs (10-30 VDC)
- Power Inputs with Surge Protection
- Lexan DIN-Rail Enclosure
- Fast wire-speed switching
- Intelligent routing to prevent collisions
- Self test/alarm output contact
- UL/CSA (CUL), CE & Hazardous Locations (Zone 2) rated
Red Lion Sixnet SL-6ES Series Downloads
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
Ethernet Performance
Unmanaged, Store & Forward, Wire Speed
Shielded RJ45 Ports: 10/100BaseTX
RJ45 Port Speed Auto-negotiation
RJ45 MDI/MDIX Auto-crossover
RJ45 TD/RD Auto-Polarity
Fiber Optic Port Speed: 100BaseFX (100Mbps)
Typical Fiber Optic Port Wavelength: 1310 nm center
Typical Singlemode Fiber: 9-10/125 um SC
Fiber max. Distance: 60km
Typical Latency for 10Mbps Ports: 16 us + frame time- varies on load & settings
Typical Latency for 100Mbps Ports: 5 us + frame time- varies on load & settings
Full Duplex Operation w/ Flow Control
MAC Addresses supported: 1024
Memory Bandwidth: 3.2 Gbps
Ethernet Isolation: 1500 VRMS 1 min
Ethernet Compliance
IEEE 802.3 (10Mbps Ethernet supports legacy devices)
IEEE 802.3u (Fast Ethernet 100Mbps for new devices)
IEEE 802.3x (Full-Duplex with flow control)
Power Input
Reverse Polarity Protection
Typical Input Power: 5 W (all ports active)
Transient Protection: 15,000 watts peak
Spike Protection: 5000 watts (10 times for 10 uS)
Environmental
Operating Temperature: -40 C to 60 C
Storage Temperature: -40 C to 85 C
Humidity (Non-Condensing): 5 to 95% RH
Vibration & Shock: IEC60068-2-6 & -27
OK Alarm Output
Indicates power & operational status
Voltage equal to switch input voltage
Max Current Output: 0.5 Amp
Physical
DIN-Rail or Panel Mount
Case: Lexan rated IP 40
Standards Compliance
Electrical Safety: UL 508/CSA C22.2/14, EN61010-1, CE
EMC: FCC Part 15, ICES-003, EN61000-6-2/4
Hazardous Locations: ISA 12.12.01 / CSA C22.2/213 (Class I, Div 2),
EN60079-15 (Zone 2, Category 3), CE (ATEX)
Maritime: Marine & Offshore per ABS

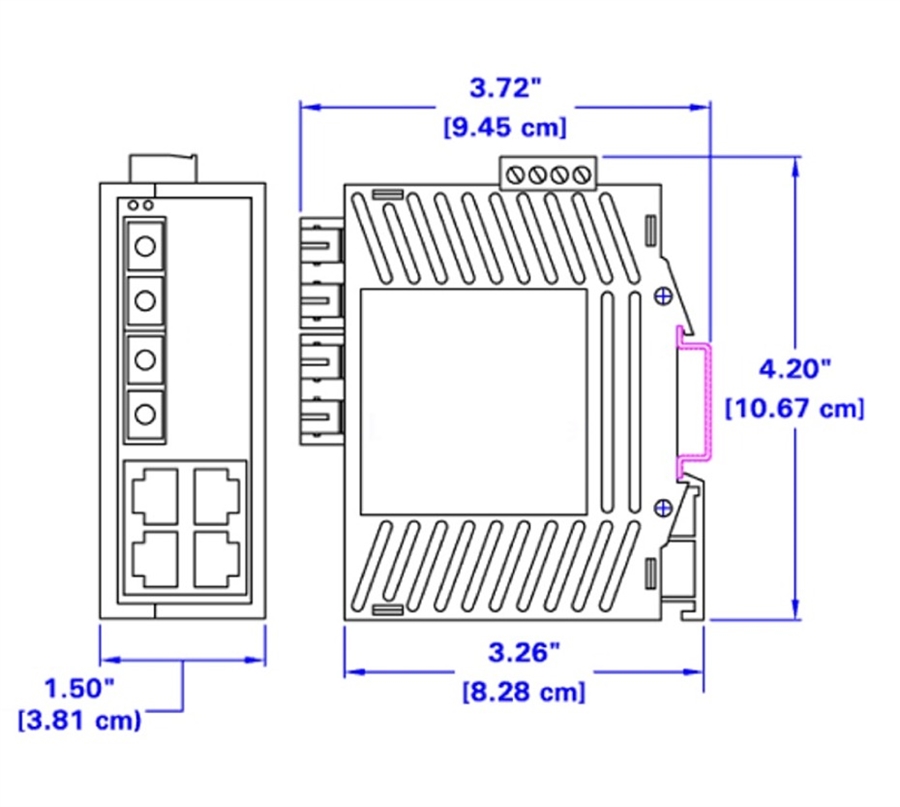

Dimensions: 4.2" H x 1.5" W x 3.72" L
RoHS & WEEE Compliant
|
|
|
|
|
|
|
