The Red Lion Sixnet

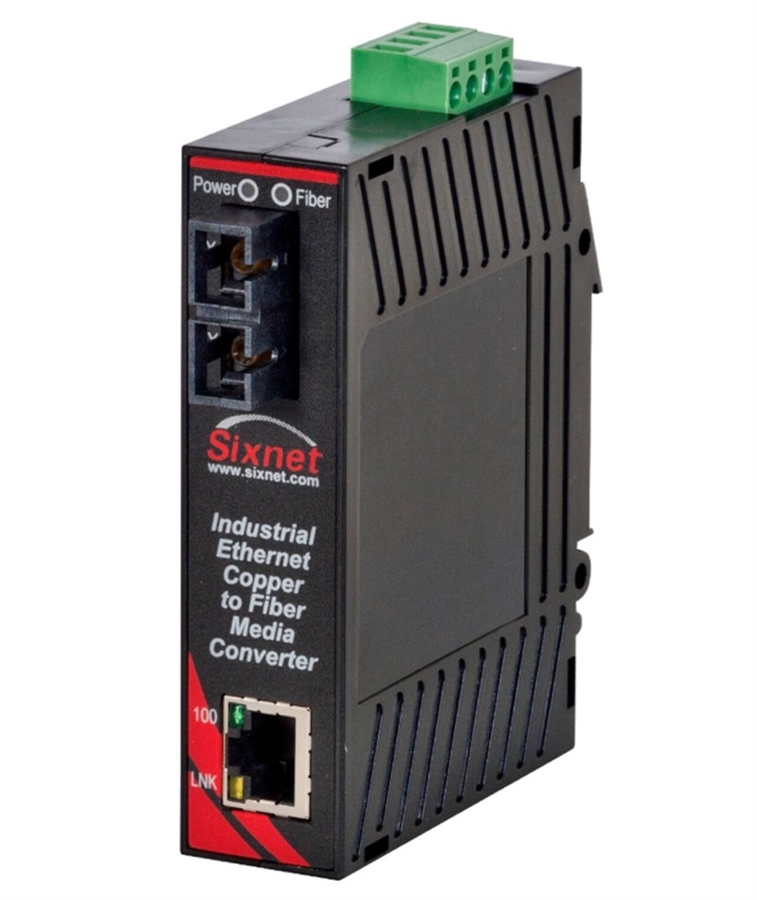

® Series SL-2ES-2SC is an unmanaged 10/100BaseTX copper to 100BaseFX fiber Industrial Media Converter. Housed in a Lexan DIN rail enclosure, this SlimLine SL switch features 4km multimode fiber optic cable with an SC style fiber connector. It is designed to work at an efficient speed for real-time operation, as well as to stand up to the demands of industrial applications. The plug and play capability ensures that the switch is immediately ready to go without needing a complicated user set-up.
PRODUCT FEATURES
- Compact Housing
- Unmanaged Plug & Play Operation
- Full IEEE 802.3 Compliance
- 2 Ports: One RJ45 Copper Port, One Fiber Optic Port
- Extended Environmental Specifications
- -10 C to 60 C Operating Temperature
- 1M+ Hours MTBF
- Supports Full/Half Duplex Operation
- LED Link/Activity Status Indication
- Auto Senses Speed and Flow
- MDIX Auto Sensing Cable
- Redundant Power Inputs (10-30 VDC)
- Power Inputs with Surge Protection
- Lexan DIN-Rail Enclosure
- UL/CSA, CE, Hazardous Locations (Zone 2) & Maritime rated
Red Lion Sixnet SL Series Downloads
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
Ethernet Compliance
IEEE 802.3 (10Mbps Ethernet supports legacy devices)
IEEE 802.3u (Fast Ethernet 100Mbps for new devices)
IEEE 802.3x (Full-Duplex with flow control)
Ethernet Performance
Shielded RJ45 Port: 10/100BaseTX
RJ45 Speed (10 or 100Mbps): Auto-negotiation
RJ45 MDI/MDIX: Auto-crossover & TD/RD Auto-Polarity
Fiber Optic Port Speed: 100BaseFX (100Mbps)
Typical Fiber Optic Port Wavelength: 1300 nm center
Typical Multimode Fiber: 50 or 62.5/125 um SC
Fiber max. Distance: (Full Duplex) 4km
Typical Latency for 100Mbps Ports: 5 us + frame time- varies on load
Fiber Duplex Operation: Full
MAC Addresses supported: 1024
Memory Bandwidth: 3.2 Gbps
Ethernet Isolation: 1500 VRMS 1 min
Power Input
Typical Input Power: 2 W (all ports active)
Transient Protection: 15,000 watts peak
Spike Protection: 5000 watts (10 times for 10 uS)
Environmental
Operating Temperature: -10 C to 60 C
Storage Temperature: -40 C to 85 C
Humidity (Non-Condensing): 5 to 95% RH
Vibration: IEC60068-2-6
Standards Compliance
Electrical Safety: UL 508/CSA C22.2/14, EN61010-1, CE
EMI Emissions: FCC Part 15, ICES-003, EN61000-6-4, CE
EMC immunity: EN61000-6-2, CE
Hazardous Locations: UL 1604/CSA C22.2/213 (Class I, Div 2),
EN60079-15 (Zone 2, Category 3), CE (ATEX)
Maritime: Marine & Offshore per ABS
Eye Safety: IEC60825-1, Class 1; FDA 21 CFR 1040.10 & 1040.11
Physical
DIN-Rail or Panel Mount

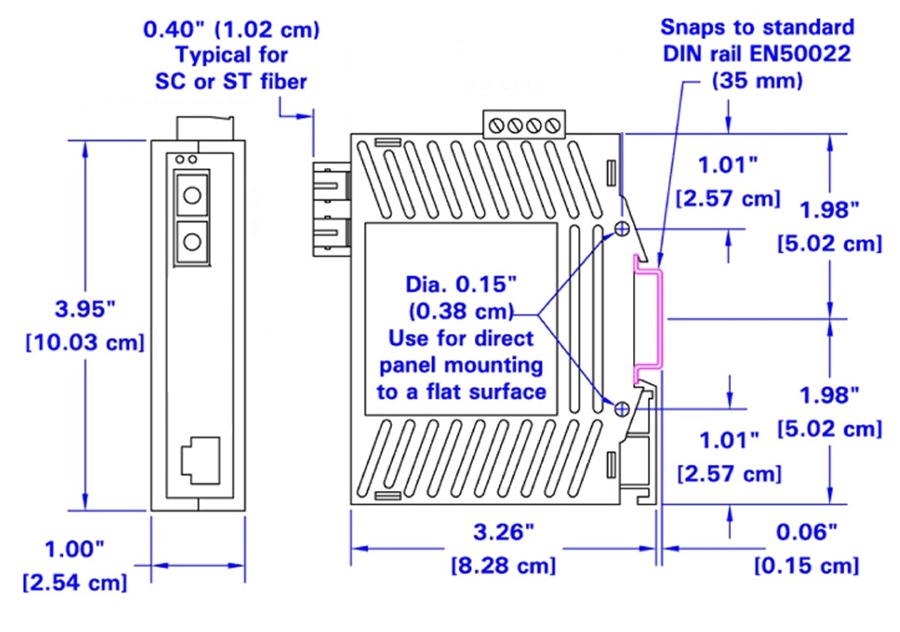

Dimensions: 3.95" H x 1" W x 3.26" L
Case: UL94V0 Lexan rated IP 30
|
|
|
|
|
|
|
