Mencom MDC-5FPX-2M M12 Cordset, 5 Pole, Female Straight, 18 AWG, 2 M

Mencom Micro DC Cordset - MDC-5FPX-2M
Mencom MDC-5FPX-2M M12 Cordset, 5 Pole, Female Straight, 2 M



Alternative Views:


Price: $22.52
MFG P/N: MDC-5FPX-2M
MFG: Mencom
Weight (lbs): 0.43

Quantity in Stock :107


Availability:
In Stock
Product Code: MDC-5FPX-2M
Qty:

Description

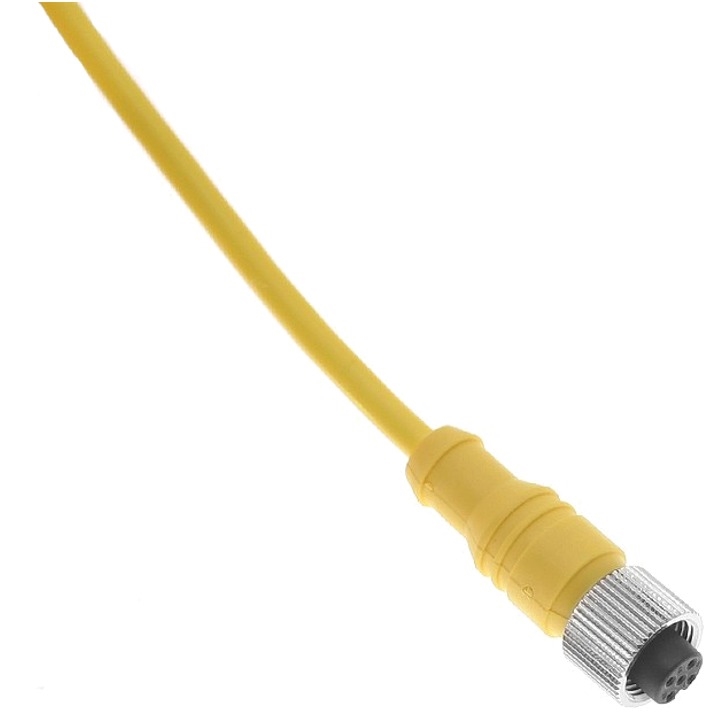

The Mencom MDC-5FPX-2M Micro DC (M12) female straight cordset features a 5 pin insert, 18 gauge wire and 2 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets use an M12 coupling nut and provide plug and play solutions for various applications.

Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Pin #5 - Gray

Specifications

  • Body- Yellow PVC
  • Insulator- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 18/5 AWM 2661 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 18
  • Pin Count- 5
  • Cable Length- 2 meters (6.56 ft)
  • Cable O.D.- 0.29
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Straight
  • Coupling Thread- Female
  • Mating Thread / Type Head- M12
  • Nut- No
  • Approvals- UL & CUL Listed

Mencom 5 Pin 2 Meter Female M12 Molded Cable MDC-5FPX-2M

Additional Product Information
M12 Molded Cable Cordsets & Connectors Overview

Mencom M12 Molded Cordset Part Number Guide

Mencom Female Straight M12 Molded Cable Cordsets
Pin Count Cable Length (meters) Cable Type Wire AWG Part Number
2 10 Yellow PVC 22 MDC-2FP-10M
3 1 Yellow PVC 22 MDC-3FP-1M
3 2 Yellow PVC 22 MDC-3FP-2M
3 4 Yellow PVC 22 MDC-3FP-4M
3 5 Yellow PVC 22 MDC-3FP-5M
3 6 Yellow PVC 22 MDC-3FP-6M
3 10 Yellow PVC 22 MDC-3FP-10M
3 2 Yellow PVC 18 MDC-3FPX-2M
3 4 Yellow PVC 18 MDC-3FPX-4M
3 10 Yellow PVC 18 MDC-3FPX-10M
3 2 Yellow PUR 22 MDCP-3FP-2M
4 1 Yellow PVC 22 MDC-4FP-1M
4 1 Black PVC Jacketed
Stainless Steel
22 MDC-4FP-1M-A03
4 1 Black PVC 22 MDC-4FP-1M-B
4 2 Yellow PVC 22 MDC-4FP-2M
4 2 Black PVC Jacketed
Stainless Steel
22 MDC-4FP-2M-A03
4 2 Black PVC 22 MDC-4FP-2M-B
4 4 Yellow PVC 22 MDC-4FP-4M
4 5 Yellow PVC 22 MDC-4FP-5M
4 5 Black PVC 22 MDC-4FP-5M-B
4 10 Yellow PVC 22 MDC-4FP-10M
4 10 Black PVC 22 MDC-4FP-10M-B
4 15 Yellow PVC 22 MDC-4FP-15M
4 20 Yellow PVC 22 MDC-4FP-20M
4 1 Yellow PVC 18 MDC-4FPX-1M
4 2 Yellow PVC 18 MDC-4FPX-2M
4 4 Yellow PVC 18 MDC-4FPX-4M
4 5 Yellow PVC 18 MDC-4FPX-5M
4 10 Yellow PVC 18 MDC-4FPX-10M
4 15 Yellow PVC 18 MDC-4FPX-15M
4 2 Yellow PVC Shielded 22 MDCM-4FP-2M
4 5 Yellow PVC Shielded 22 MDCM-4FP-5M
4 5 Yellow PUR 22 MDCP-4FP-5M
5 1 Yellow PVC 22 MDC-5FP-1M
5 2 Yellow PVC 22 MDC-5FP-2M
5 4 Yellow PVC 22 MDC-5FP-4M
5 5 Yellow PVC 22 MDC-5FP-5M
5 10 Yellow PVC 22 MDC-5FP-10M
5 15 Yellow PVC 22 MDC-5FP-15M
5 2 Yellow PVC 18 MDC-5FPX-2M
5 5 Yellow PVC 18 MDC-5FPX-5M
5 10 Yellow PVC 18 MDC-5FPX-10M
5 15 Yellow PVC 18 MDC-5FPX-15M
5 1 Yellow PVC Shielded 22 MDCM-5FP-1M
5 5 Yellow PVC Shielded 22 MDCM-5FP-5M
5 10 Yellow PVC Shielded 22 MDCM-5FP-10M
5 10 Yellow PUR 22 MDCP-5FP-10M
8 2 Yellow PVC Shielded 24 MDCM-8FP-2M
8 1 Yellow PUR 24 MDCP-8FP-1M
8 2 Yellow PUR 24 MDCP-8FP-2M
8 5 Yellow PUR 24 MDCP-8FP-5M
8 6 Yellow PUR 24 MDCP-8FP-6M
8 8 Yellow PUR 24 MDCP-8FP-8M
8 10 Yellow PUR 24 MDCP-8FP-10M
8 15 Yellow PUR 24 MDCP-8FP-15M
8 20 Yellow PUR 24 MDCP-8FP-20M
12 2 Black PUR 24 MDCPM-12FP-2M-B
12 5 Black PUR 24 MDCPM-12FP-5M-B
12 10 Black PUR 24 MDCPM-12FP-10M-B
12 15 Black PUR 24 MDCPM-12FP-15M-B
