Mencom MDC-2FP-10M M12 Cordset, 2 Pole, Female Straight, 10 M

Mencom M12 Female Cordset - MDC-2FP-10M
Mencom MDC-2FP-10M M12 Cordset, 2 Pole, Female Straight, 10 M



Alternative Views:


Our Price: $20.48
MFG P/N: MDC-2FP-10M
MFG: Mencom
Weight (lbs): 0.7


Availability:
Ships in 1-2 business days
Product Code: MDC-2FP-10M
Qty:


Description

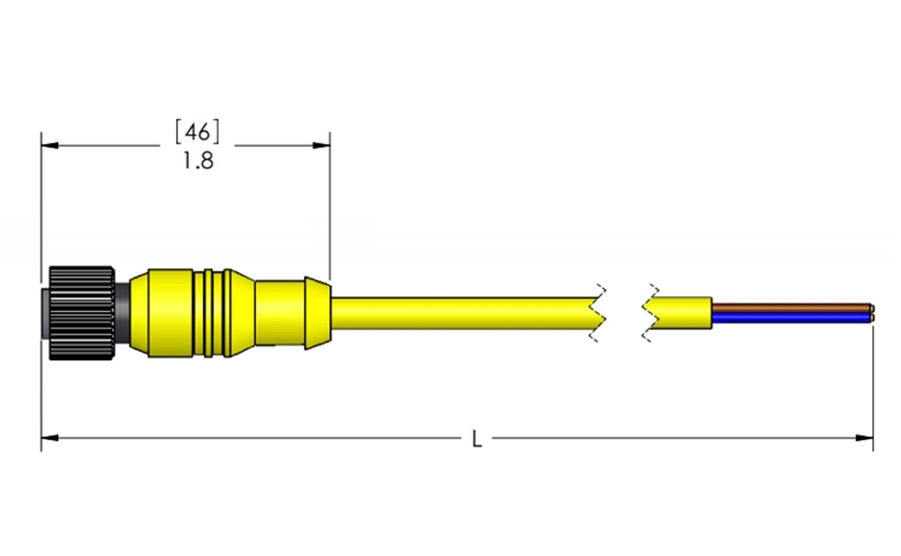

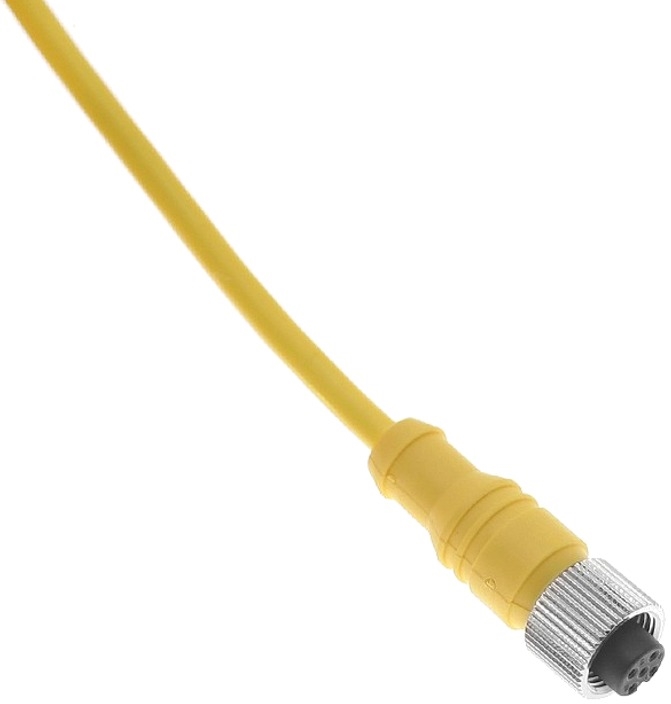

The Mencom MDC-2FP-10M Micro DC (M12) female straight cordset features a 2 pin insert, 22 gauge wire and 10 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 300V and 105 C. Rated IP 67. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets feature an M12 coupling nut, single keyway, and provide plug and play solutions for different applications.

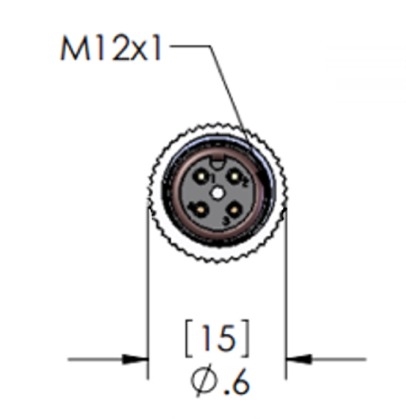

Pin #1 - Not Used
Pin #2 - Not Used
Pin #3 - Brown
Pin #4 - Blue
Pin #5 - Not Used

Specifications

  • Body- Yellow PVC
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/2 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 A
  • Wire Gauge- 22
  • Pin Count- 2
  • Cable Length- 10 meters (32.8 ft)
  • Cable O.D.- 0.2
  • Ingress Protection- IP 67
  • Orientation Head- Female Straight
  • Coupling Thread- Female
  • Mating Thread / Type Head- M12
  • Nut- No
  • Approvals- UL & CUL Listed

MDC-2FP-10M Mencom M12 2 Pin Female Molded Cordset
