ILME CSHF-16 CSH Series Insert, Female, Size 77.27, 16 Pin, 16A

ILME CSHF-16
ILME CSHF-16 CSH Series Insert, Female, Size 77.27, 16 Pin, 16A

Alternative Views:
Price: $20.71
Note: Delivery: 2-5 Business Days
MFG P/N: CSHF-16
MFG: ILME
Weight (lbs): 0.2

Quantity in Stock :1619


Availability: In Stock
Product Code: CSHF-16
Qty:


Description

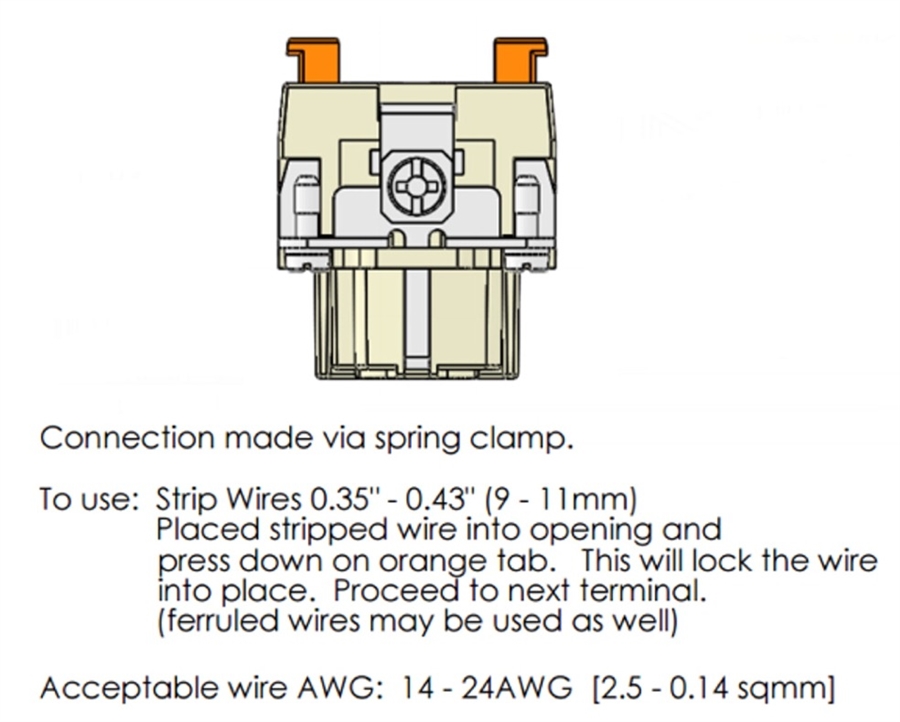

The ILME CSHF-16 CSH series standard female insert fits size 77.27 enclosures and is 16 pin + ground with a voltage rating of 600V and a rated current of 16A. The housing is glass reinforced thermoplastic with silver plated contacts. The housing is self-extinguishing and is rated UL 94 V0. Rated IP 20. Termination: Squich spring. The Squich spring on the CSHF-16 makes it ideal for high vibration or gas tight applications, due to the push button spring clamp termination.

Specifications

  • Housing- Glass Reinforced Thermoplastic
  • Contacts- Silver Plated Copper Alloy
  • Gender- Female

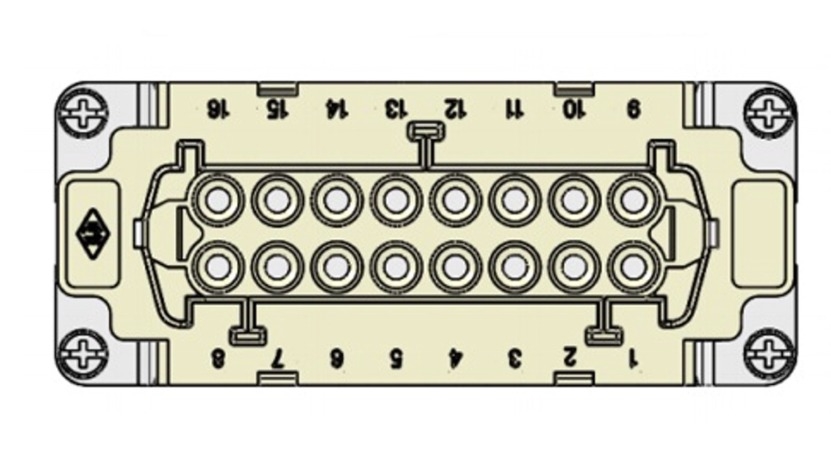

  • Pin Count- 16 + Ground
  • Rated Current- 16 Amps
  • Rated Voltage- 600 V
  • ILME Series- CSH
  • Housing Type- Standard
  • Operating Temperature- -40 C to 125 C (-40 F to 257 F)
  • Insert Dimension- 77.27
  • Double Insert- 77.62
  • Enclosure Dimension- 77.27
  • Termination- Squich Spring
  • Upper AWG- 14
  • Lower AWG- 26
  • Insulation Resistance- >= 10 GOhm
  • Mechanical Life- >= 500 Cycles
  • Contact Resistance- <= 3 mOhm
  • Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
  • Approvals- UL, CSA, CCC, GOST

Compatible Enclosures

Series Part Number
CH CHI-16, CHI-16CP, CHI-16CS, CHI-16L, CHI-16LS
CH, CA, MH CHP-16, CHP-16.2, CHP-16CS, CHP-16CS2, CHP-16L, CHP-16LS, CHP-16LS2
CAP-16.21, CAP-16.221, CAP-16.229, CAP-16.29, CAP-16CS2, CAP-16CS229
CAP-16L, CAP-16L2, CAP-16L229, CAP-16L29, CAP-16LS, CAP-16LS2, CAP-16LS29
CHP-16L2, MHP-16LS225, MHP-16.225, CAP-16LS229, CAP-16CS29
CH, CA, MH, MA CHO-16, CHO-16L, CHV-16, CHV-16L, CAF-16, CAV-16.221
CAO-16.21, CAO-16.29, CAO-16L21, CAO-16L29, CAV-16.21, CAV-16L29
MHO-16.32, MHV-16.25, MHO-16L25, MHO-16L32, MAO-16L40
MHV-16L25, MAO-16.40, CAF-16.221, MHO-16.25, MHV-16.32
CH, CA, MA CHV-16G, CHV-16LG, CAV-16.29, MAV-16.40, MAV-16L32, MAV-16L40
CAV-16G, CAV-16G29, CAV-16LG21, CAV-16LG29, MAV-16.32
CH, CA CHO-16X, CHC-16, CHC-16C, CHC-16L, CHC-16LG, CHV-16X
CAO-16X, CAO-16X29, CAV-16X, CAV-16X29, CHC-16G
CH, CA CHIW-16, CHCW-16G, CHOW-16, CHCW-16
CAVW-16.29, CAOW-16.29
CH, CA CHIS-16, CHVS-16
CAOS-16.29, CHOS-16
CH, CA CHI-16YC
TC, TM TCHI-16, TCHC-16, THIH-16
TMAP-16.32, TMAP-16.40, TMAO-16.32, TMAO-16.40, TMAV-16.40
JCVI JCVI-16, JCVI-16L
CG CGI-16, CGO-16.21

ILME 77.27 16 Pin Female Insert CSHF-16
