ILME CHP-16LS2 C-Type Surface Mount Housing, Size 77.27, Lever & Cover, PG 21

CHP-16LS2
ILME C-Type Surface Mount Housing, Size 77.27, Lever & Cover, PG 21 - CHP-16LS2



Alternative Views:


Our Price: $33.95
MFG P/N: CHP-16LS2
MFG: ILME
Weight (lbs): 0.8


Availability:
Ships in 1-2 business days
Product Code: CHP-16LS2
Qty:


Description

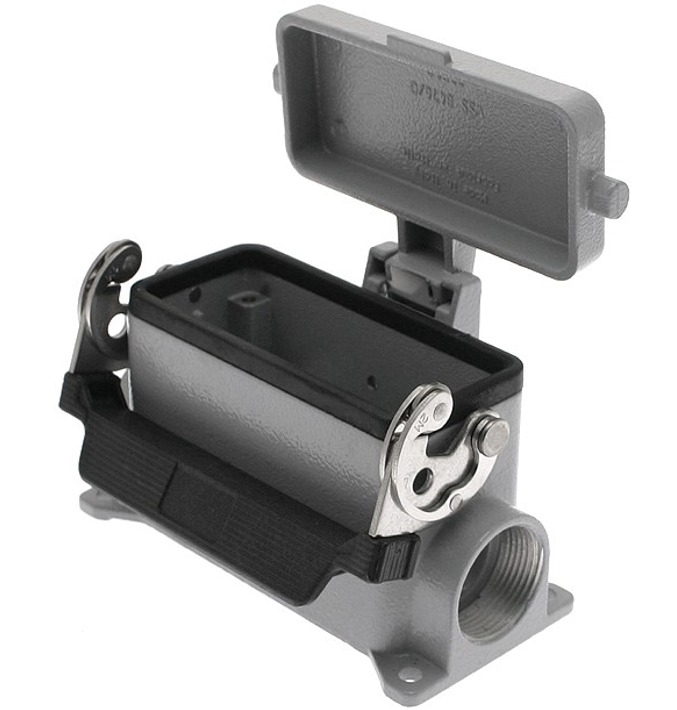

The ILME CHP-16LS2 C-Type surface mount standard housing is size 77.27 and features a single lever & a cover with two PG 21 cable entries. The body is epoxy coated die cast aluminum with a polyamide handle and stainless steel lever. Insert center distance: 77.5 x 27 mm. Rated IP 65 when attached and locked down. The clamping force supplied by the CHP-16LS2 is constant due to the stainless steel locking system.

Specifications

  • Body- Epoxy Coated Die Cast Aluminum
  • Gasket- Thermoplastic Elastomer
  • Handle- Polyamide
  • Lever- Stainless Steel
  • ILME Series- CH
  • Insert Dimension- 77.27
  • Enclosure Dimension- 77.27
  • Housing Type- Standard
  • Enclosure Type- 1 Lever
  • Mounting Style- Surface Mount
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Hood Entry- Side
  • Hood Thread- PG 21
  • Gasket- Yes
  • Number of Entries- 2
  • Ingress Protection- IP 65 when attached & locked down
  • Insert Center Distance- 77.5 x 27 mm
  • Approvals- C UR US, CCC, GL

Compatible Inserts

Series Part Number
CD CDF-40, CDM-40
CDD CDDF-72, CDDM-72
CQE CQEF-32, CQEM-32
CSH CSHF-16, CSHM-16
CCE CCEF-16, CCEM-16
CNE CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
CSS CSSF-16, CSSM-16
CP CPF-06, CPM-06
CX CXF-6/36, CXM-6/36
CXF-12/2, CXM-12/2
CXF-4/0, CXM-4/0, CXF-4/2, CXM-4/2

ILME CHP-16LS2 PG 21 Dual Cable Entry 77.27 Surface Mount Base
