The ILME CAP-16CS29 C-Type surface mount standard housing is size 77.27 and features 4 pegs with a cover and PG 29 cable entry. The body is epoxy coated die cast aluminum. Insert center distance: 77.5 x 27 mm. Rated IP 65 when attached and locked down. The CAP-16CS29 has a life expectancy of over 500 cycles, and is useful for supplying a connection for power & signal circuits.
Specifications
- Body- Epoxy Coated Die Cast Aluminum
- Gasket- Thermoplastic Elastomer
- ILME Series- CA
- Insert Dimension- 77.27
- Enclosure Dimension- 77.27
- Housing Type- Standard, Metallic
- Pegs- 4 Pegs
- Mounting Style- Surface Mount
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Hood Entry- Side

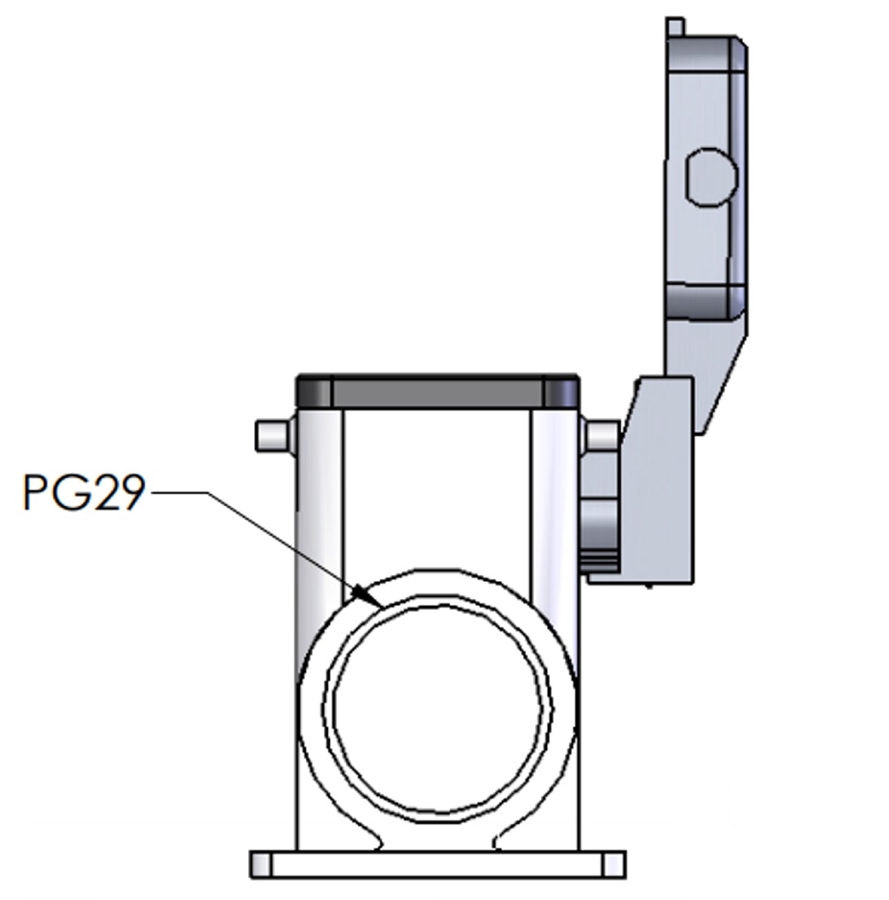

- Hood Thread- PG 29
- Gasket- Yes
- Ingress Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)
- Insert Center Distance- 77.5 x 27 mm (3.05" x 1.06")
- Approvals- C UR US, CQC, GL, CE, EAC
Compatible Inserts
|
Series
|
Part Number
|
|
CD
|
CDF-40, CDM-40
|
|
CDD
|
CDDF-72, CDDM-72
|
|
CQE
|
CQEF-32, CQEM-32
|
|
CSH, CDSH
|
CSHF-16, CSHM-16
CDSHF-27, CDSHM-27
|
|
CCE
|
CCEF-16, CCEM-16
|
|
CNE
|
CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
|
|
CSS
|
CSSF-16, CSSM-16
|
|
CP
|
CPF-06, CPM-06
|
|
CX
|
CXF-6/36,
CXM-6/36
CXF-12/2, CXM-12/2
CXF-4/0, CXM-4/0, CXF-4/2, CXM-4/2
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
