ILME CHOW-16 W-Type Metallic Hood, Size 77.27, PG 21, 4 Pegs

CHOW-16
ILME W-Type Metallic Hood, Size 77.27, PG 21, 4 Pegs - CHOW-16



Alternative Views:


Our Price: $23.91
MFG P/N: CHOW-16
MFG: ILME
Weight (lbs): 0.4


Availability:
Call for Availability
Product Code: CHOW-16
Qty:


Description

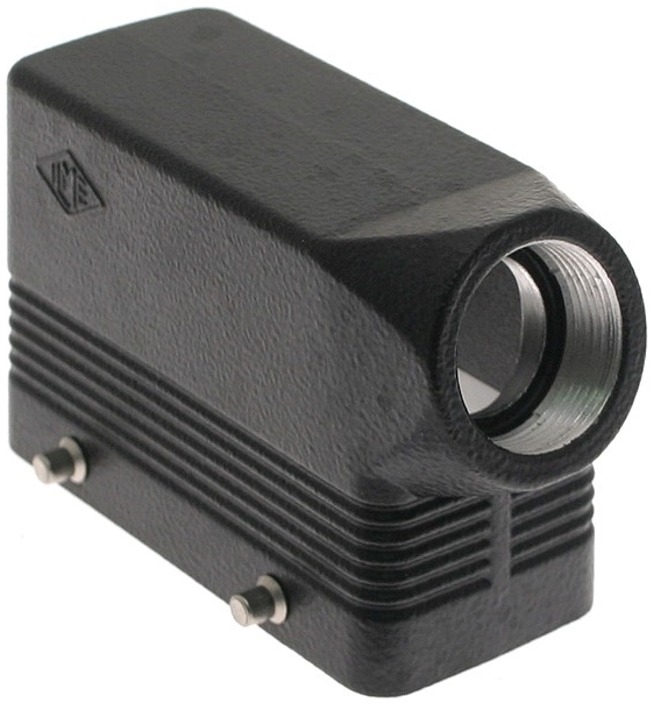

The ILME CHOW-16 W-Type aggressive environment metallic hood is size 77.27 and features 4 pegs with a PG 21 cable entry. The body is die cast aluminum with cable entry through the side. Insert center distance: 77.5 x 27mm. Rated IP 66 & IP 69K. The CHOW-16 has a unique painted finish that makes it ideal for use under more harsh conditions.

Specifications

  • Body- Die Cast Aluminum
  • ILME Series- CH
  • Insert Dimension- 77.27
  • Enclosure Dimension- 77.27
  • Housing Type- Metallic, Aggressive Environment
  • Enclosure Type- Hoods for 2 Levers
  • Mounting Style- Cable
  • Hood Entry- Side
  • Hood Thread- PG 21
  • Pegs- 4 Pegs
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 & IP 69K (Total protection from dust, high pressure and high temperature water jets from any direction)
  • Insert Center Distance- 77.5 x 27 mm (3.05" x 1.06")
  • Approvals- C UR US, CCC, GL

Compatible Inserts

Series Part Number
CD CDM-40, CDF-40
CDD CDDF-72, CDDM-72
CQE CQEF-32, CQEM-32
CSH, CDSH CSHF-16, CSHM-16
CDSHF-27, CDSHM-27
CCE CCEF-16, CCEM-16
CNE CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
CME CMEF-06T, CMEM-06T
CSS CSSF-16, CSSM-16
CP CPF-06, CPM-06
CX CXF-6/36, CXM-6/36
CXF-12/2, CXM-12/2
CXF-4/0, CXM-4/0, CXF-4/2, CXM-4/2

77.27 Harsh Environment PG 21 Side Entry Hood CHOW-16
