ILME C-Type Surface Mount Housing, Size 77.27, 4 Pegs & Cover, PG 21, 2 Entries


CAP-16CS2

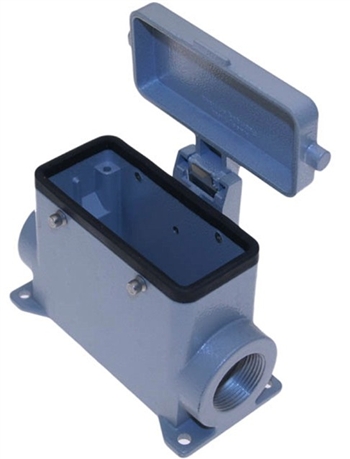

ILME C-Type Surface Mount Housing, Size 77.27, 4 Pegs & Cover, PG 21 - CAP-16CS2

Alternative Views:


Price: $48.26
Note: Please call or email [email protected] for alternatives
MFG P/N: CAP-16CS2
MFG: ILME
Weight (lbs): 0.9



Availability:
Out of Stock
Product Code: CAP-16CS2
No Longer Available


Description


The ILME CAP-16CS2 C-Type surface mount standard housing is size 77.27 and features 4 pegs with a cover and two PG 21 cable entries. The body is epoxy coated die cast aluminum. Insert center distance: 77.5 x 27 mm. Rated IP 65 when attached and locked down. The CAP-16CS2 has a life expectancy of over 500 cycles.

Specifications

  • Body- Epoxy Coated Die Cast Aluminum
  • Gasket- Thermoplastic Elastomer
  • ILME Series- CA
  • Insert Dimension- 77.27
  • Enclosure Dimension- 77.27
  • Housing Type- Standard
  • Pegs- 4
  • Mounting Style- Surface Mount
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Hood Entry- Side
  • Hood Thread- PG 21
  • Gasket- Yes
  • Number of Entries- 2
  • Ingress Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)
  • Insert Center Distance- 77.5 x 27 mm (3.05" x 1.06")
  • Approvals- C UR US, CCC, GL

Compatible Inserts

Series Part Number
CD CDF-40, CDM-40
CDD CDDF-72, CDDM-72
CQE CQEF-32, CQEM-32
CSH, CDSH CSHF-16, CSHM-16
CDSHF-27, CDSHM-27
CCE CCEF-16, CCEM-16
CNE CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
CSS CSSF-16, CSSM-16
CP CPF-06, CPM-06
CX CXF-6/36, CXM-6/36
CXF-12/2, CXM-12/2
CXF-4/0, CXM-4/0, CXF-4/2, CXM-4/2

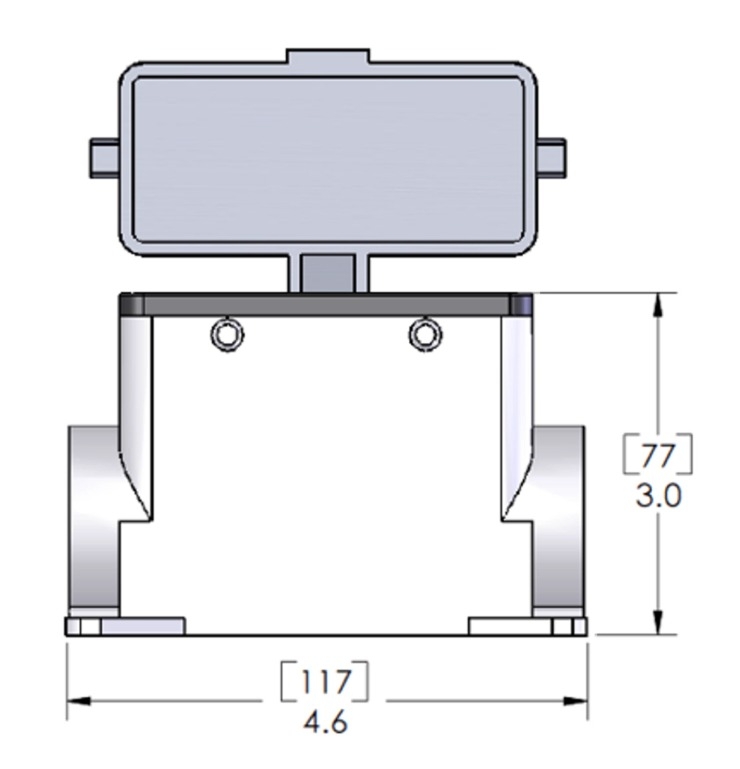

CAP-16CS2 ILME 77.27 Surface Mount Base
