ILME TMAP-16.32 T-Type Surface Mount Housing, Size 77.27, Double Lever, M32

TMAP-16.32
ILME T-Type Surface Mount Housing, Size 77.27, Double Lever, M32 - TMAP-16.32

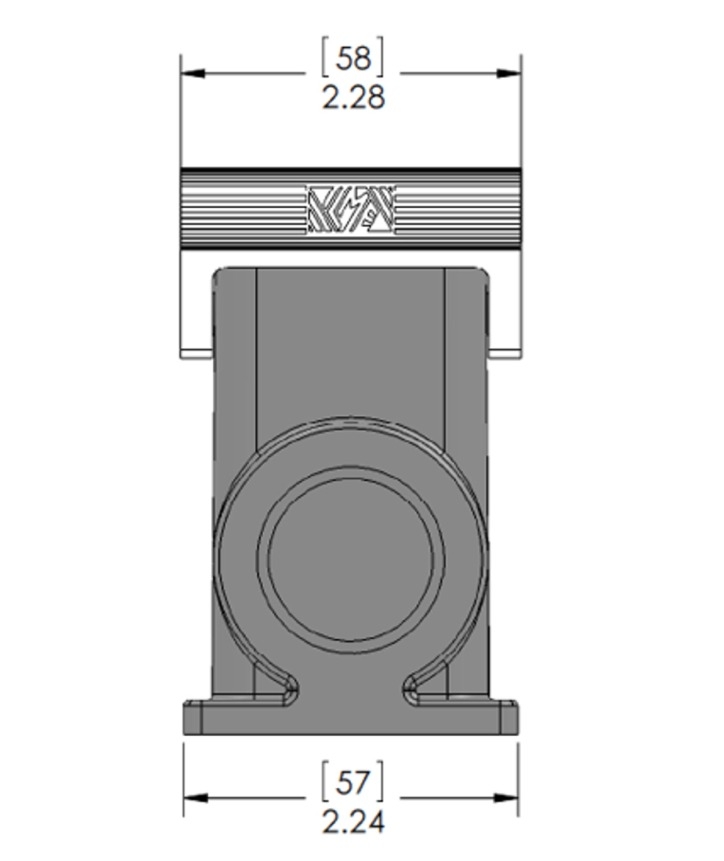

Alternative Views:


Our Price: $25.49
MFG P/N: TMAP-16.32
MFG: ILME
Weight (lbs): 0.4


Availability:
Ships in 1-2 business days
Product Code: TMAP-16.32
Qty:


Description


The ILME TMAP-16.32 T-Type surface mount standard housing is size 77.27 and features two levers with an M32 cable entry. The body is made from thermoplastic material with thermoplastic levers. Insert center distance: 77.5 x 27 mm. Rated IP 65 when attached and locked down. The TMAP-16.32 is durable and resistant to corrosion, which makes it ideal for extreme conditions.

Specifications

  • Body- Thermoplastic
  • ILME Series- T
  • Insert Dimension- 77.27
  • Enclosure Dimension- 77.27
  • Housing Type- Insulating
  • Enclosure Type- 2 Levers
  • Mounting Style- Surface Mount
  • Temperature Range- -40 C to 90 C (-40 F to 194 F)
  • Hood Entry- Side
  • Hood Thread- M32
  • Gasket- Yes
  • Ingress Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)
  • Insert Center Distance- 77.5 x 27 mm (3.05" x 1.06")
  • Approvals- C UR US, CCC

Compatible Inserts

Series Part Number
CD CDF-40, CDM-40
CDD CDDF-72, CDDM-72
CQE CQEF-32, CQEM-32
CSH, CDSH CSHF-16, CSHM-16
CDSHF-27, CDSHM-27
CCE CCEF-16, CCEM-16
CNE CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
CSS CSSF-16, CSSM-16
CME CMEF-06T, CMEM-06T
CP CPF-06, CPM-06
CX CXF-6/36, CXM-6/36
CXF-12/2, CXM-12/2
CXF-4/0, CXM-4/0, CXF-4/2, CXM-4/2

77.27 2 Lever M32 Cable Entry Insulating Surface Mount Base TMAP-16.32
