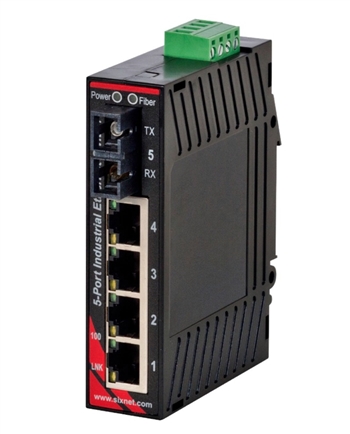

The Red Lion Sixnet
® Series SL-5ES-3SCL is an
unmanaged 5 port Industrial Ethernet Switch. Housed in a Lexan DIN rail enclosure, this SlimLine SL series switch features 60km singlemode fiber optic cable with an SC style fiber connector. It is designed to run at a speed for optimal real-time performance. It's also built to take the demands of industrial applications. A user set-up not required, as the switch has complete plug and play capability, reducing installation time. The SlimLine housing is compact, so it won't take up too much space, thereby leaving more room on the DIN-Rail.
PRODUCT FEATURES
- Compact Housing
- Unmanaged Plug & Play Capability
- Full IEEE 802.3 Compliance
- 5 Ports: Four RJ45 Ports, One Fiber Port
- Extended Environmental Specifications
- -40 C to 60 C Operating Temperature
- >1M+ Hours MTBF
- Supports Full/Half Duplex Operation
- LED Link/Activity Status Indication
- Auto Senses Speed and Flow
- MDIX Auto Sensing Cable
- Redundant Power Inputs (10-30 VDC)
- Power Inputs with Surge Protection
- Lexan DIN-Rail Enclosure
- Fast wire-speed switching
- Intelligent routing to prevent collisions
- Auto Polarity Corrects Crossed Signals
- UL/CSA (CUL), CE & Hazardous Locations (Zone 2) & Maritime rated
Red Lion Sixnet SL-5ES Series Downloads
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
Ethernet Performance
Unmanaged, Store & Forward Wire Speed Switching
Automatic Learning, Aging, Migration for Addresses
Typical Latency for 10Mbps Ports: 16 us + frame time- varies on load
Typical Latency for 100Mbps Ports: 5 us + frame time- varies on load
Full Duplex Operation w/ Flow Control
MAC Addresses supported: 1024
Memory Bandwidth: 3.2 Gbps
Ethernet Isolation: 1500 VRMS 1 min
Ethernet Ports
Shielded RJ45 Ports: 10/100BaseTX
RJ45 Port Speed Auto-negotiation
RJ45 MDI/MDIX Auto-crossover
Auto-Polarity corrects crossed +/- signals
Fiber Optic Port Speed: 100BaseFX (100Mbps)
Full Duplex Operation
Typical Fiber Wavelength: 1300 nm center
Fiber max. Distance: 60 km SC
Ethernet Compliance
IEEE 802.3 (10Mbps Ethernet supports legacy devices)
IEEE 802.3u (Fast Ethernet 100Mbps for new devices)
IEEE 802.3x (Full-Duplex with flow control)
Power Input
Typical Input Power: 3 W (all ports active)
Transient Protection: 15,000 watts peak
Spike Protection: 5000 watts (10 times for 10 uS)
Environmental
Operating Temperature: -40 C to 60 C
Storage Temperature: -40 C to 85 C
Humidity (Non-Condensing): 5 to 95% RH
Vibration & Shock: IEC60068-2-6
Standards Compliance
Electrical Safety: UL 508/CSA C22.2/14, EN61010-1, CE
EMC: FCC Part 15, ICES-003, EN55022, EN61000-6, CE
Hazardous Locations: UL 1604/CSA C22.2/213 (Class I, Div 2),
EN60079-15 (Zone 2, Category 3), CE (ATEX)
Maritime: Marine & Offshore per ABS
Physical
DIN-Rail or Panel Mount
Dimensions: 4" H x 1" W x 3.26" L
Case: UL94V0 Lexan rated IP 40
|
|
|
|
|
|
|
