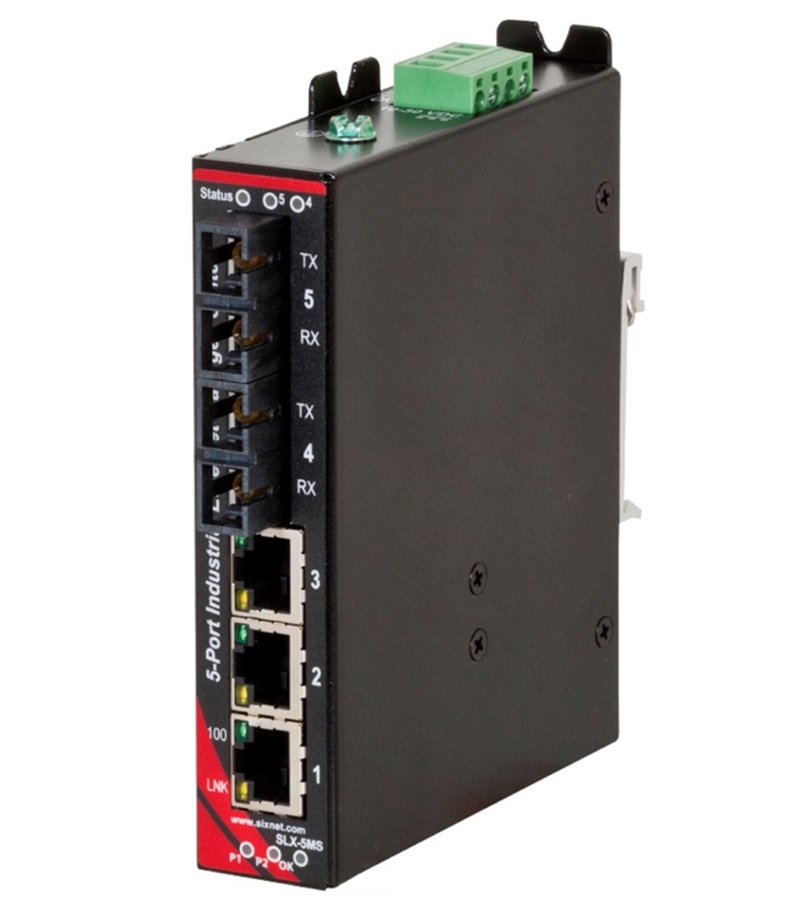

The Red Lion Sixnet
® Series SLX-5MS-4SC is a fully managed five port Industrial Ethernet Switch. This SlimLine Plus SLX series switch is housed in an aluminum DIN rail enclosure, and features 4km multimode fiber optic cable with an SC style fiber connector. It has three 10/100BaseTX RJ45 ports and two 100BaseFX fiber ports. This switch can provide data in real-time and a secure operation, with several management and monitoring features. The compact housing ensures that it won't take up too much room, leaving more space on the DIN-Rail. It is designed to handle the demands of industrial environments.
PRODUCT FEATURES
- Auto sensing 10/100BaseTX, Duplex, & MDIX
- Store and Forward Technology
- Redundant Power Inputs (10-30VDC)
- Configurable Self Test/Alarm Contact
- Rugged Metal DIN-Rail Enclosure
- Power inputs with spike protection
- Lifetime free firmware upgrades
- Full IEEE 802.3 Compliance
- >2M hours MTBF
- Broadcast & multi-cast storm protection
- UL/CSA (CUL), CE, Hazardous Locations (Zone 2), maritime rated
- Standard 5 year industrial warranty on manufacturing & design defects
MANAGEMENT FEATURES
- SNMPv1/v2/v3 - v1& v2 for managing networks, v3 authentication & encryption for security - reports on events
- RMON & port mirroring for advanced diagnostics
- DHCP server
- SNTP
- TFTP
- STP
- Rapid Spanning Tree (RSTP) or Real-Time Ring for redundant ring or mesh networks
- QoS/CoS/ToS/DS - prioritizes queuing
- IGMPv1/v2 - Multicast filtering (snooping & querying)
- VLAN (tag and port based) - traffic segregation
- HTTP/HTTPS (SSL & TSL), SSH for security
- Telnet, CLI Interface, or Web configuration
- Modbus/TCP
Red Lion Sixnet SLX-5MS Series Downloads
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
Ethernet Performance
Managed, Store & Forward Wire Speed Switching
Shielded RJ45 Ports: 10/100BaseTX
RJ45 Port Speed Auto-negotiation
RJ45 MDI/MDIX Auto-crossover
RJ45 TD & RD auto-polarity
Fiber Optic Port Speed: 100BaseFX (100Mbps)
Typical Fiber Wavelength: 1300 nm center
Fiber max. Distance: 4 km for multimode 50 or 62.5/125 um SC
Typical Latency for 10Mbps Ports: 16 us + frame time- varies on load & settings
Typical Latency for 100Mbps Ports: 5 us + frame time- varies on load & settings
Full/Half Duplex Operation configurable per port
MAC Addresses supported: 2048
Memory Bandwidth: 3.2 Gbps
Ethernet Isolation: 1500 VRMS 1 min
Ethernet Compliance
IEEE 802.3u (Fast Ethernet 100Mbps for new devices)
IEEE 802.3 (10Mbps Ethernet supports legacy devices)
IEEE 802.3x (Full-Duplex with flow control)
IEEE 802.3D/w (Rapid spanning tree for redundant rings & Spanning Tree for interoperability)
IEEE 802.3p (Priority Queuing - QoS, CoS, ToS/DS)
IEEE 802.3Q (VLAN for traffic segregation)
OK Output
Shows power and operational status
Voltage same as input voltage
Max. current output: 0.5 A
Power Input
Typical Input Power: 5.6 W
Transient Protection: 15,000 watts peak
Spike Protection: 5000 watts (10 times for 10 uS)
Environmental
Operating Temperature: -40 C to 75 C (cold startup -40 C)
Storage Temperature: -40 C to 85 C
Humidity (Non-Condensing): 5 to 95% RH
Vibration & Shock: IEC60068-2-6, -27
Standards Compliance
Electrical Safety: UL 508/CSA C22.2/14, EN61010-1, CE
EMI emissions: FCC Part 15, ICES-003, EN61000-6-4, CE
EMC immunity: EN61000-6-2, CE
Hazardous Locations: UL 1604/CSA C22.2/213 (Class I, Div 2),
EN60079-15 (Zone 2, Category 3), CE (ATEX)
Marine & Offshore per ABS
Physical
DIN-Rail or Panel Mount
Dimensions: 5.2" H x 1.07" W x 4.21" L
Case: Corrosion-resistant aluminum, rated IP 40
|
|
|
|
|
|
|
