Sealcon CD63MA-FE M63 Dome 1.46" - 1.73" (37 - 44 mm) EMI/RFI Proof Cord Grip

Sealcon CD63MA-FE
Sealcon CD63MA-FE M63 37 - 44 mm EMI/RFI Proof Cord Grip



Alternative Views:


Our Price: $132.85
MFG P/N: CD63MA-FE
MFG: Sealcon
Weight (lbs): 0.4



Availability:
Lead Time: Typically 5 business days
Product Code: CD63MA-FE
Qty:


Description


Sealcon CD63MA-FE high quality EMI/RFI Proof nickel plated brass cord grip is liquid tight to 150 psi. M63 x 1.5 metric thread, Accommodates 1.46" - 1.73" (37 - 44 mm) O.D cable. Sold Individually. (Locking nut sold separately) Also known as Hummel #1.631.6300.50.

Thread Size/Type M63 x 1.5
  • Nickel Plated Brass Material with Buna-N Seal
  • Operating Temperature - -40 C to 100 C (-40 F to 212 F)
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

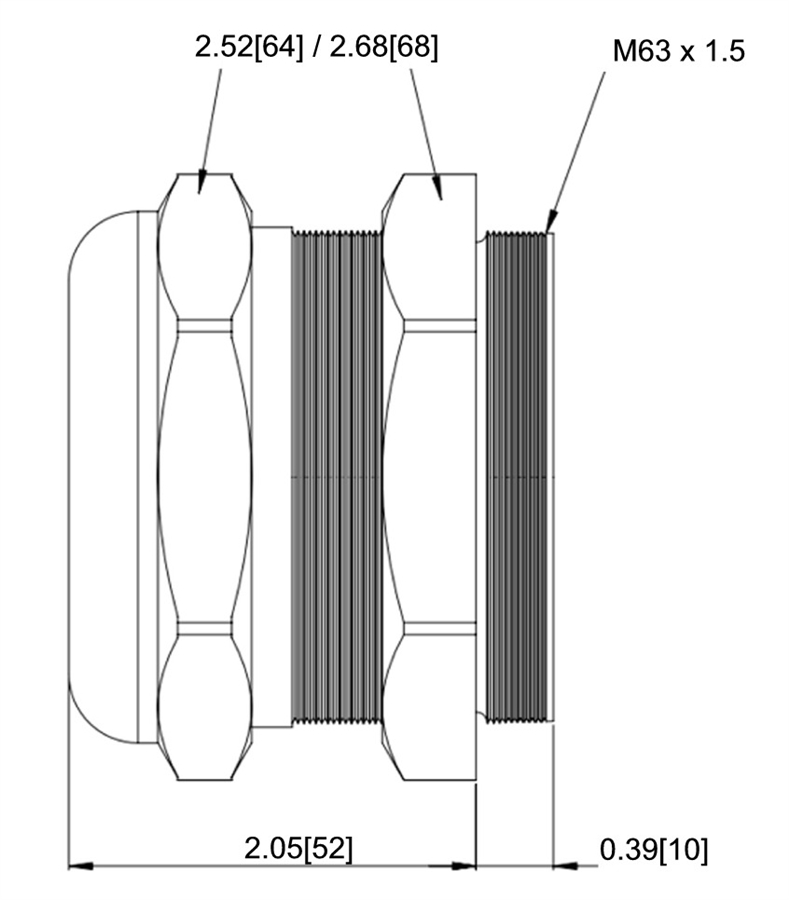

Through Hole Dia. 2.48" (63 mm)
Body Length 2.05" (52 mm)
Thread Length .39" (10 mm)
Wrench Flat Dome/Body 2.52" (64 mm) / 2.68" (68 mm)

Sealcon CD63MAFE Nickel Plated Brass cord grips, strain relief fittings, and cable glands, are used in nearly any industry when helping customers in connecting cable or wire to various applications. This cable gland provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Note: Image is for reference only, actual part many differ.

The self locking ACME thread on the dome top ensures that the overlapping splines provide an even seal. This keeps the form seal from being pulled out of the cable gland & provides your cable with pull-out protection without causing damage. EMI/RFI Proof fittings meet the requirements for electromagnetic interference / radio frequency interference protection and reliable grounding. This feed-through version applies grounding through metal spring fingers. It can be used with braided or foil shielding, and works with cable that has been partially or fully stripped. This cord grip is made to keep circuits functioning when electromagnetic conduction or radiation from an outside source can cause a disturbance for the circuit. Telecommunications, traffic, control panels, and measuring and feedback systems are all examples of applications that benefit from this type of fitting.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd

CD63MA-FE Sealcon M63 Nickel Plated Brass Cable Gland

Additional Product Information

Sealcon Metric Dome Cable Glands Comparison Chart


Options & Accessories
Sealcon NM-63-BE M63 EMI/RFI Proof Locking Nut
Our Price: $20.54

Add
Sealcon NM-63-BE
