Sealcon CD25MA-FE M25 Dome .51" - .71" (13 - 18 mm) EMI/RFI Proof Cord Grip

Sealcon CD25MA-FE
Sealcon CD25MA-FE M25 13 - 18 mm EMI/RFI Proof Cord Grip



Alternative Views:


Our Price: $21.96
Please Note: For quantities over 500, call for pricing
MFG P/N: CD25MA-FE
MFG: Sealcon
Weight (lbs): 0.2

Product Code: CD25MA-FE
Qty:

Description


Sealcon CD25MA-FE high quality EMI/RFI Proof nickel plated brass cord grip is liquid tight to 150 psi. M25 x 1.5 metric thread, Accommodates .51" - .71" (13 - 18 mm) O.D cable. Sold Individually. (Locking nut sold separately) Also known as Hummel #1.631.2500.50.

Thread Size/Type M25 x 1.5
  • Nickel Plated Brass Material with Buna-N Seal
  • Operating Temperature - -40 C to 100 C (-40 F to 212 F)
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval
Through Hole Dia. .98" (25 mm)
Body Length 1.54" (39 mm)
Thread Length .28" (7 mm)
Wrench Flat Dome/Body 1.18" (30 mm)

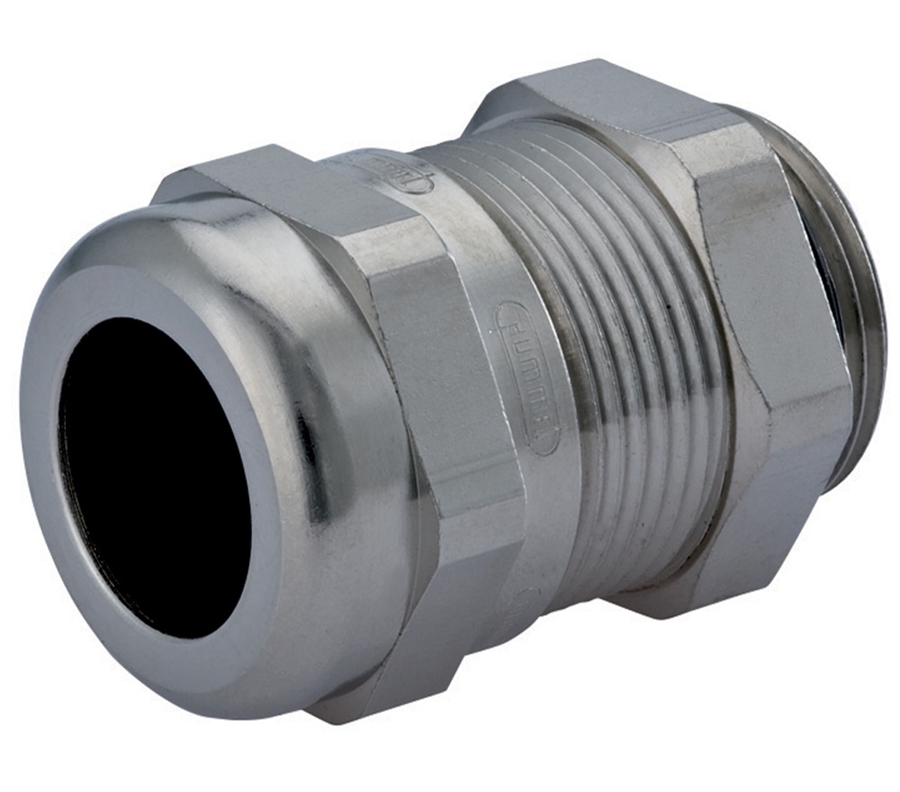

Sealcon CD25MAFE Nickel Plated Brass cord grips, sometimes called cable glands or strain relief fittings, are found in almost every industry when helping customers attach their cable or wire to different applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Note: Image is for reference only, actual part many differ.

The self locking ACME thread on the dome top ensures that the overlapping splines provide a concentric seal. This prevents the form seal from being pulled out of the cable gland & provides pull-out protection for your cable without causing damage. EMI/RFI Proof cord grips meet the requirements for electromagnetic interference / radio frequency interference protection and reliable grounding. This feed-through version applies grounding through metal spring fingers. It can be used with braided or foil shielding, and works with cable that has been partially or fully stripped. This cord grip is designed to keep circuits functioning when electromagnetic conduction or radiation from an outside source can cause a disturbance for the circuit. Telecommunications, traffic, control panels, and measuring and feedback systems are all applications that benefit from this type of fitting.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd

Sealcon CD25MA-FE M25 EMI/RFI Proof Feed Through Cord Grip
