Sealcon CD12MA-FE M12 Dome .12" - .26" (3 - 6.5 mm) EMI/RFI Proof Cord Grip

Sealcon CD12MA-FE
Sealcon CD12MA-FE M12 3 - 6.5 mm EMI/RFI Proof Cord Grip



Alternative Views:


Our Price: $11.34
MFG P/N: CD12MA-FE
MFG: Sealcon
Weight (lbs): 0.06

Quantity in Stock:4

Availability:
In Stock - Ships Today by 2PM EST
Product Code: CD12MA-FE
Qty:


Description


Sealcon CD12MA-FE high quality EMI/RFI Proof nickel plated brass cord grip is liquid tight to 150 psi. M12 x 1.5 metric thread, Accommodates .12" - .26" (3 - 6.5 mm) O.D cable. Sold Individually. (Locking nut sold separately) Also known as Hummel #1.631.1200.50.

Thread Size/Type M12 x 1.5
  • Nickel Plated Brass Material with Buna-N Seal
  • Operating Temperature - -40 C to 100 C (-40 F to 212 F)
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

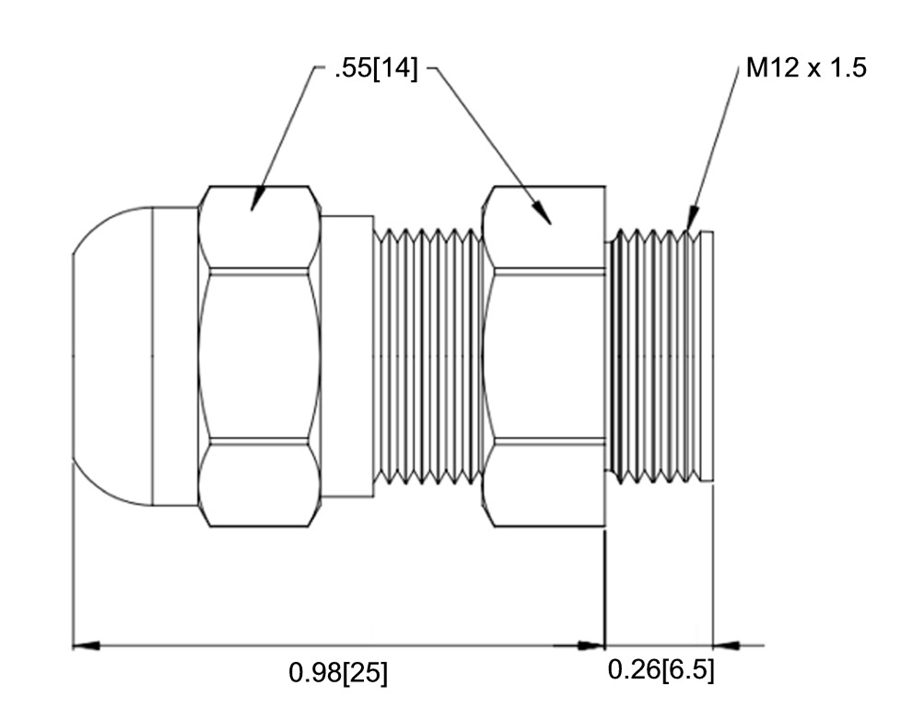

Through Hole Dia. .47" (12 mm)
Body Length .98" (25 mm)
Thread Length .26" (6.5 mm)
Wrench Flat Dome/Body .55" (14 mm)

Sealcon CD12MAFE Nickel Plated Brass Strain Relief Fittings, otherwise known as Cord Grips or Cable Glands, are used to help customers in nearly any industry connect their cable or wire to their applications. This cord grip provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Note: Image is for reference only, actual part many differ.

The self locking ACME thread on the dome top makes sure that the overlapping splines provide an even seal. This keeps the form seal from being pulled out of the cable gland & provides pull-out protection for your cable so no damage is caused. EMI/RFI Proof fittings meet the requirements for electromagnetic interference / radio frequency interference protection and reliable grounding. This feed-through version applies grounding through metal spring fingers. It can be used with braided or foil shielding, and works with cable that has been partially or fully stripped. This cord grip is designed to keep circuits functioning when electromagnetic conduction or radiation from an outside source can cause a disturbance for the circuit. Application examples include telecommunications, traffic, control panels, and measuring and feedback systems.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd

Hummel M12 Feed Through EMI/RFI Proof Strain Relief Fitting 1.631.1200.50
