Sealcon CD40MA-FE M40 Dome .94" - 1.26" (24 - 32 mm) EMI/RFI Proof Cord Grip

Sealcon CD40MA-FE

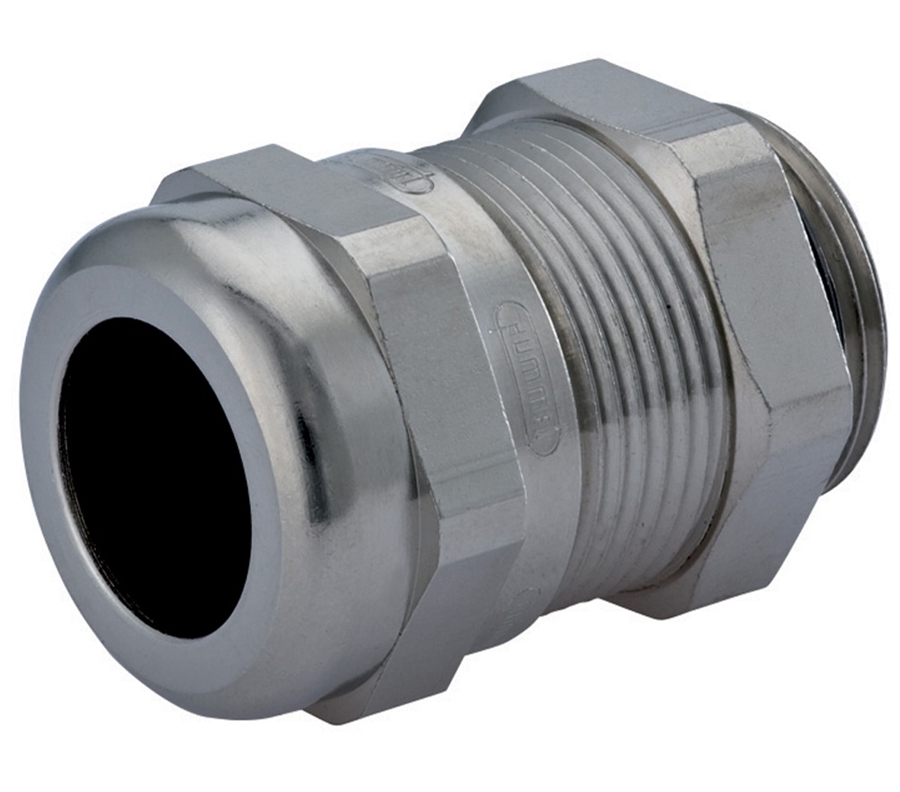

Sealcon CD40MA-FE M40 24 - 32 mm EMI/RFI Proof Cord Grip



Alternative Views:


Our Price: $86.69
Please Note: For quantities over 500, call for pricing
MFG P/N: CD40MA-FE
MFG: Sealcon
Weight (lbs): 0.3

Product Code: CD40MA-FE
Qty:

Description


Sealcon CD40MA-FE high quality EMI/RFI Proof nickel plated brass cord grip is liquid tight to 150 psi. M40 x 1.5 metric thread, Accommodates .94" - 1.26" (24 - 32 mm) O.D cable. Sold Individually. (Locking nut sold separately) Also known as Hummel #1.631.4000.50.

Thread Size/Type M40 x 1.5
  • Nickel Plated Brass Material with Buna-N Seal
  • Operating Temperature - -40 C to 100 C (-40 F to 212 F)
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval
Through Hole Dia. 1.57" (40 mm)
Body Length 2.01" (51 mm)
Thread Length .31" (8 mm)
Wrench Flat Dome/Body 1.97" (50 mm)

Sealcon CD40MAFE Nickel Plated Brass cable glands, strain relief fittings, and cord grips are used in nearly every industry when assisting customers in connecting cable or wire to various applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Note: Image is for reference only, actual part many differ.

The self locking ACME thread on the dome top makes sure that the overlapping splines provide a concentric seal. This prevents the form seal from being pulled out of the fitting & provides your cable with pull-out protection so no damage is caused. EMI/RFI Proof cable glands meet the requirements for electromagnetic interference / radio frequency interference protection and reliable grounding. This feed-through version applies grounding through metal spring fingers. It can be used with braided or foil shielding, and works with cable that has been partially or fully stripped. This cord grip is made to keep circuits functioning when electromagnetic conduction or radiation from an outside source can cause a disturbance for the circuit. Telecommunications, traffic, control panels, and measuring and feedback systems are all examples of applications that benefit from this type of fitting.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd

Sealcon CD40MA-FE M40 Nickel Plated Brass Strain Relief Cable Gland

Additional Product Information

Sealcon Metric Dome Cable Glands Comparison Chart
