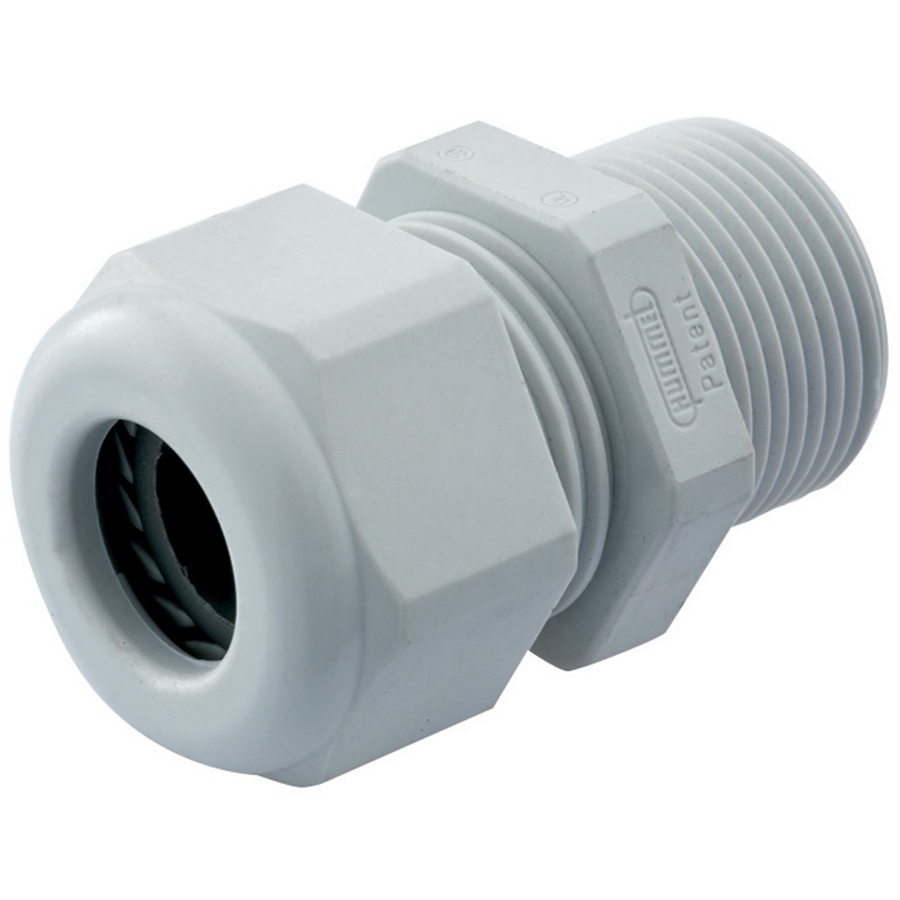

Sealcon CD50DR-GY M50 Dome .98" - 1.22" (25 - 31 mm) O.D. Elongated Cord Grip

Sealcon CD50DR-GY Plastic Strain Relief Fitting
Sealcon CD50DR-GY M50 Dome .98" - 1.22" (25 - 31 mm) O.D. Elongated Cord Grip



Alternative Views:


Our Price: $27.73
Please Note: For quantities over 500, call for pricing
MFG P/N: CD50DR-GY
MFG: Sealcon
Weight (lbs): 0.18

Product Code: CD50DR-GY
Qty:

Description

Sealcon CD50DR-GY high quality gray nylon cord grip is liquid tight to 150 psi. Elongated M50 x 1.5 Metric Thread, Accommodates .98" - 1.22" (25 - 31 mm) O.D cable. Sold Individually. (Locking nut & O-Ring sold separately) Also known as Hummel # 1.209.5000.31

Thread Size/Type M50 x 1.5
  • Nylon 6/6 Material with Buna-N Seal
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Vibration Resistant Dome
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval
Through Hole Dia. 1.97" (50 mm)
Body Length 1.93" (49 mm)
Thread Length .71" (18 mm)
Wrench Flat Dome/Body 2.36" (60 mm)

Sealcon Elongated M50 x 1.5 Metric Nylon / Plastic strain relief fittings, cord grips and cable glands are used when connecting wire or cable to applications in almost any industry. This liquid tight fitting provides a NEMA 4x 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Cable glands with elongated threads are typically used when the cord grip goes through a thick wall, or simply if a longer thread length serves the application better. Sealcon cord grips have patented overlapping clamping splines and recessed custom grommets to keep your cable protected from damage and the elements. The CD50DR-GY has a substantial amount of Pull-out resistance because it applies a concentric force on all points of the cable.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd
  • VDE

Sealcon Elongated M50 Gray Cable Gland CD50DR-GY

Additional Product Information

Sealcon Metric Dome Cable Glands Comparison Chart


Options & Accessories
Sealcon OM-50-BN M50 Buna-N O-Ring Sealcon NM-50-GY M50 Locking Nut
Our Price: $0.60

Add
Our Price: $2.60

Add
OM-50-BN NM-50-GY
