Sealcon CD22DA-GY Gray M20 Dome .39" - .55" (10 - 14 mm) O.D. Elongated Cord Grip

Sealcon CD22DA-GY

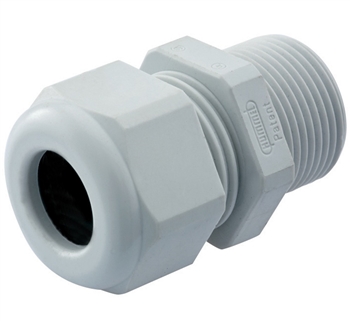

Sealcon CD22DA-GY M20 Dome .39" - .55" (10 - 14 mm) O.D. Elongated Cord Grip



Alternative Views:


Price: $2.35
MFG P/N: CD22DA-GY
MFG: Sealcon
Weight (lbs): 0.05

Quantity in Stock :45


Availability:
In Stock
Product Code: CD22DA-GY
Qty:


Description


Sealcon CD22DA-GY high quality gray nylon cord grip with elongated thread is designed for the toughest applications. Also known as Hummel 1.219.2000.30. Sold Individually. Locking nut & O-Ring sold separately

Specifications

  • Thread Size: M20 x 1.5
  • Cable O.D. Range: .39" - .55" (10 - 14 mm)
  • Through Hole Diameter: .79" (20 mm)
  • Body Length: 1.10" (28 mm)
  • Thread Length: .59" (15 mm)
  • Wrench Flat Dome: 1.06" (27 mm)
  • Wrench Flat Body: 1.06" (27 mm)

Features

  • Nylon 6/6 Material with Buna-N Seal
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Vibration Resistant Dome
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd
  • VDE

Sealcon Elongated M20 x 1.5 Metric Nylon / Plastic liquid tight strain relief, also referred to as cord grips or cable glands, is used to attach cable or wire to different applications in many industries. This fitting provides a NEMA 4x 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Elongated threads are usually implemented when the cable gland passes through a thick wall, or simply if a longer thread length better serves the application. Sealcon fittings have patented overlapping clamping splines and recessed custom grommets to help protect your cable from damage and the elements. The CD22DA-GY cord grip features a great amount of Pull-out resistance because it applies an even force on all points of the cable.

Hummel 1.219.2000.30 Elongated Cable Gland

Additional Product Information
Sealcon Metric Elongated Thread Nylon Dome Fittings
Part Numbers Cable Range Thread Range
Black Gray
CD12DA-BK CD12DA-GY .12" - .26" (3 - 6.5 mm) M12 x 1.5
CD12DR-BK CD12DR-GY .08" - .20" (2 - 5 mm) M12 x 1.5
CD16DA-BK CD16DA-GY .16" - .31" (4 - 8 mm) M16 x 1.5
CD16DR-BK CD16DR-GY .08" - .24" (2 - 6 mm) M16 x 1.5
CD17DA-BK CD17DA-GY .20" - .39" (5 - 10 mm) M16 x 1.5
CD17DR-BK CD17DR-GY .12" - .28" (3 - 7 mm) M16 x 1.5
CD20DA-BK CD20DA-GY .24" - .47" (6 - 12 mm) M20 x 1.5
CD20DR-BK CD20DR-GY .20" - .35" (5 - 9 mm) M20 x 1.5
CD22DA-BK CD22DA-GY .39" - .55" (10 - 14 mm) M20 x 1.5
CD22DR-BK CD22DR-GY .28" - .47" (7 - 12 mm) M20 x 1.5
CD25DA-BK CD25DA-GY .51" - .71" (13 - 18 mm) M25 x 1.5
CD25DR-BK CD25DR-GY .35" - .63" (9 - 16 mm) M25 x 1.5
CD32DA-BK CD32DA-GY .71" - .98" (18 - 25 mm) M32 x 1.5
CD32DR-BK CD32DR-GY .51" - .79" (13 - 20 mm) M32 x 1.5
CD40DA-BK CD40DA-GY .87" - 1.26" (22 - 32 mm) M40 x 1.5
CD40DR-BK CD40DR-GY .79" - 1.02" (20 - 26 mm) M40 x 1.5
CD50DA-BK CD50DA-GY 1.26" - 1.50" (32 - 38 mm) M50 x 1.5
CD50DR-BK CD50DR-GY .98" - 1.22" (25 - 31 mm) M50 x 1.5
CD63DA-BK CD63DA-GY 1.46" - 1.73" (37 - 44 mm) M63 x 1.5
CD63DR-BK CD63DR-GY 1.14" - 1.38" (29 - 35 mm) M63 x 1.5
