Sealcon CD20DA-GY M20 Dome .24" - .47" (6 - 12 mm) O.D. Elongated Cord Grip

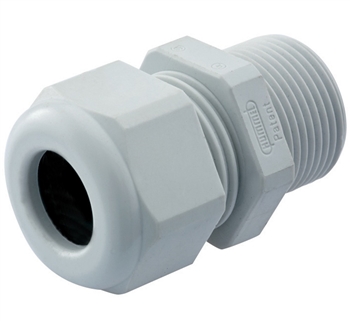

Sealcon CD20DA-GY Elongated M20 Cord Grip
Sealcon CD20DA-GY M20 Dome .24" - .47" (6 - 12 mm) O.D. Elongated Cord Grip



Alternative Views:


Our Price: $1.49
MFG P/N: CD20DA-GY
MFG: Sealcon
Weight (lbs): 0.03

Quantity in Stock:34

Availability:
In Stock - Ships Today by 2PM EST
Product Code: CD20DA-GY
Qty:


Description

Sealcon CD20DA-GY high quality gray nylon cord grip is liquid tight to 150 psi. Elongated M20 x 1.5 Metric Thread, Accommodates .24" - .47" (6 - 12 mm) O.D cable. Sold Individually. (Locking nut & O-Ring sold separately) Also known as Hummel # 1.209.2000.30

Thread Size/Type M20 x 1.5
  • Nylon 6/6 Material with Buna-N Seal
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Vibration Resistant Dome
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

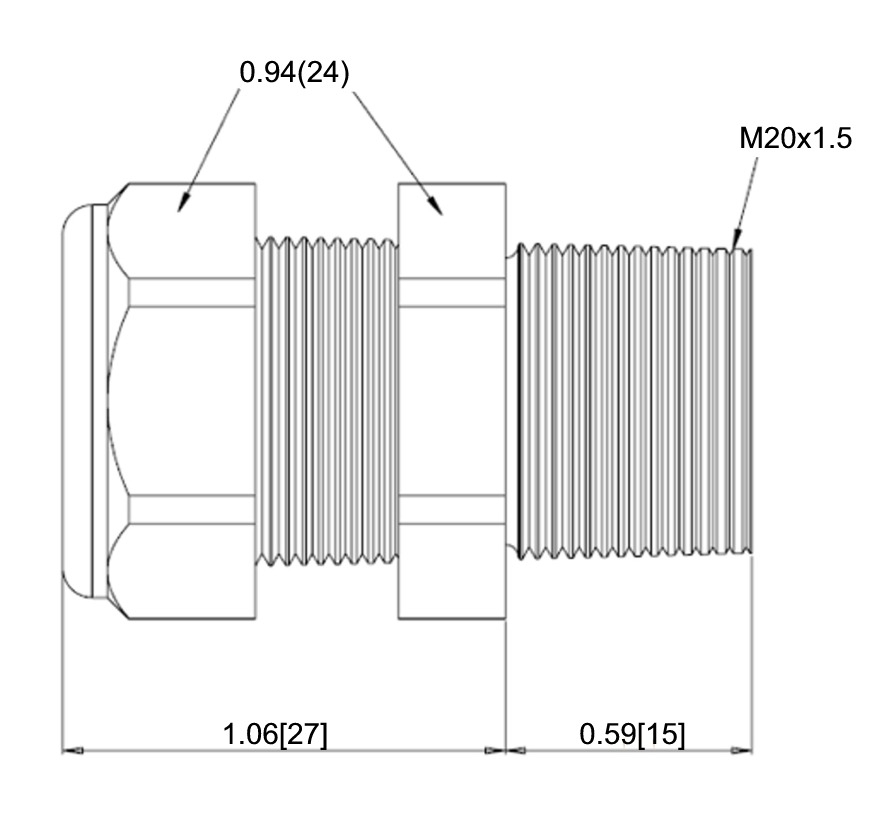

Through Hole Dia. .79" (20 mm)
Body Length 1.06" (27 mm)
Thread Length .59" (15 mm)
Wrench Flat Dome/Body .94" (24 mm)

Sealcon Elongated M20 x 1.5 Metric Nylon / Plastic liquid tight cord grips are used when attaching cable or wire to applications in a large number of industries. This strain relief fitting provides a NEMA 4x 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Elongated threads are used often when the cable gland is passing through a thick wall, or if a longer thread length simply serves the application better. Sealcon fittings have patented overlapping clamping splines and recessed custom grommets to help protect your cable from damage and the elements. The CD20DA-GY cord grip has a substantial amount of Pull-out resistance because it applies an even force on all points of the cable.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd
  • VDE

Sealcon M20 Gray Nylon Cable Gland CD20DA-GY

Additional Product Information

Sealcon Metric Dome Cable Glands Comparison Chart


Options & Accessories
Sealcon NM-20-GY M20 Locking Nut Sealcon OM-20-BN M20 Buna-N O-Ring
