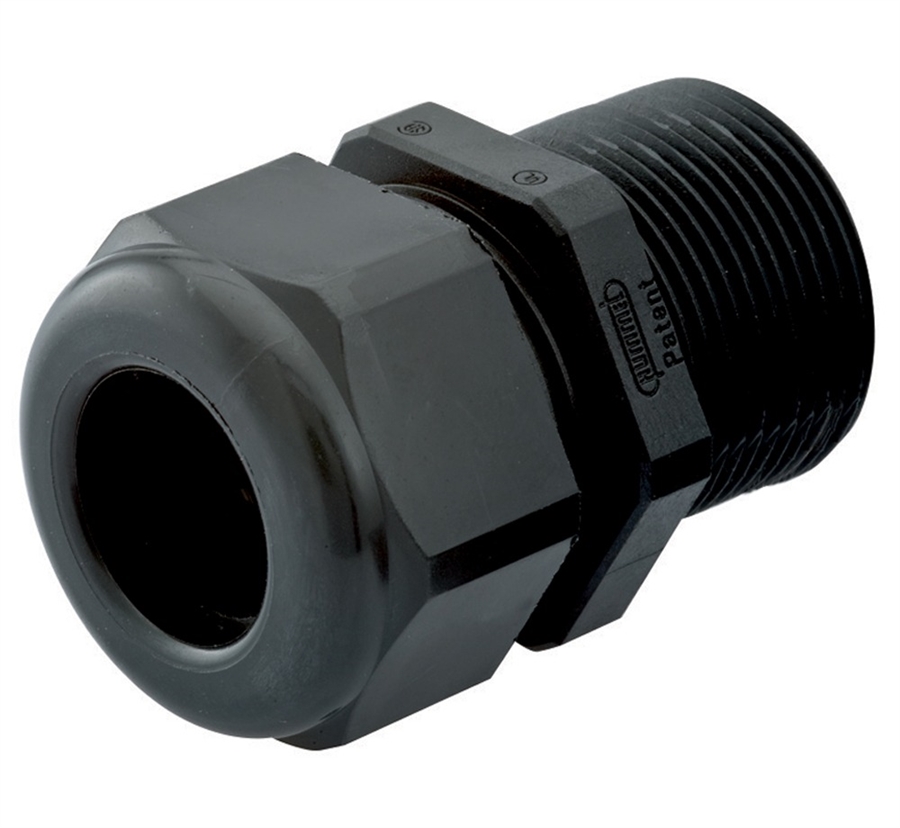

Sealcon CD25DA-BK M25 Dome .51" - .71" (13 - 18 mm) O.D. Elongated Cord Grip

Elongated Strain Relief Fitting
Sealcon CD25DA-BK M25 Dome .51" - .71" (13 - 18 mm) O.D. Elongated Cord Grip



Alternative Views:


Our Price: $2.34
MFG P/N: CD25DA-BK
MFG: Sealcon
Weight (lbs): 0.1

Product Code: CD25DA-BK
Qty:


Description

Sealcon CD25DA-BK high quality black nylon cord grip is liquid tight to 150 psi. Elongated M25 x 1.5 Metric Thread, Accommodates .51" - .71" (13 - 18 mm) O.D cable. Sold Individually. (Locking nut & O-Ring sold separately) Also known as Hummel # 1.209.2501.30

Thread Size/Type M25 x 1.5
  • Nylon 6/6 Material with Buna-N Seal
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Vibration Resistant Dome
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval
Through Hole Dia. .98" (25 mm)
Body Length 1.22" (31 mm)
Thread Length .59" (15 mm)
Wrench Flat Dome/Body 1.30" (33 mm)

Sealcon Elongated M25 x 1.5 Metric Nylon / Plastic cord grips, also known as liquid tight strain relief, are used to attach cable or wire to different applications in a large number of industries. This fitting provides a NEMA 4x 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Cord grips with elongated threads are often used when it goes through a thick wall, or simply if a longer thread length better serves the application. Sealcon fittings feature patented overlapping clamping splines and recessed custom grommets to help keep your cable protected from damage and the elements. The CD25DA-BK cable gland has a large amount of Pull-out resistance because it applies a concentric force on all points of the cable.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd
  • VDE
  • V0 UL94 Rated / Approved

Sealcon Metric Size Black Cable Gland CD25DA-BK

Additional Product Information

Sealcon Metric Dome Cable Glands Comparison Chart
