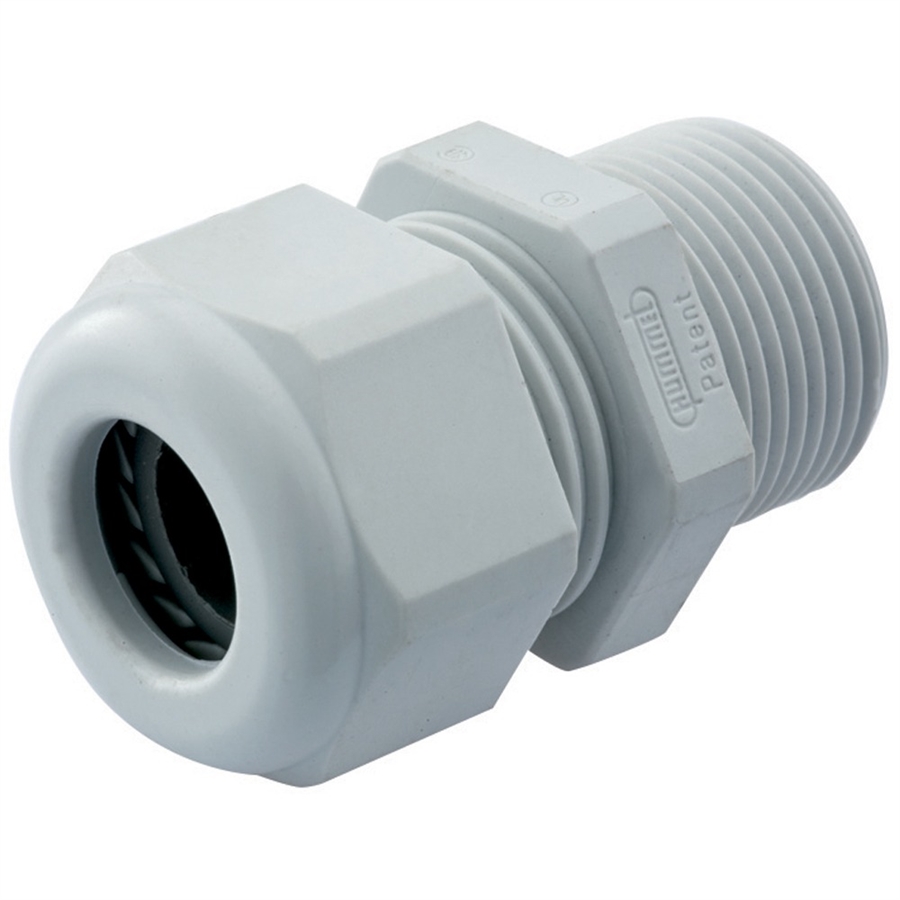

Sealcon CD40DR-GY M40 Dome .79" - 1.02" (20 - 26 mm) O.D. Elongated Cord Grip

CD40DR-GY Fitting with Reduced Insert
Sealcon CD40DR-GY M40 Dome .79" - 1.02" (20 - 26 mm) O.D. Elongated Cord Grip



Alternative Views:


Our Price: $16.58
Please Note: For quantities over 500, call for pricing
MFG P/N: CD40DR-GY
MFG: Sealcon
Weight (lbs): 0.15

Product Code: CD40DR-GY
Qty:

Description

Sealcon CD40DR-GY high quality gray nylon cord grip is liquid tight to 150 psi. Elongated M40 x 1.5 Metric Thread, Accommodates .79" - 1.02" (20 - 26 mm) O.D cable. Sold Individually. (Locking nut & O-Ring sold separately) Also known as Hummel # 1.209.4000.31

Thread Size/Type M40 x 1.5
  • Nylon 6/6 Material with Buna-N Seal
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Vibration Resistant Dome
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval
Through Hole Dia. 1.57" (40 mm)
Body Length 1.89" (48 mm)
Thread Length .71" (18 mm)
Wrench Flat Dome/Body 2.09" (53 mm)

Sealcon Elongated M40 x 1.5 Metric Nylon / Plastic cord grips, also known as cable glands or strain relief fittings, are used when attaching cable or wire to various applications in many different industries. This fitting provides a NEMA 4x 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Cable glands with elongated threads are often used when it goes through a thick wall, or simply if a longer thread length serves the application better. Sealcon fittings feature patented overlapping clamping splines and recessed custom grommets to protect your cable from damage and the elements. The CD40DR-GY has a substantial amount of Pull-out resistance because it applies a concentric force on all points of the cable.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd
  • VDE

Sealcon Elongated M40 Gray Strain Relief CD40DR-GY

Additional Product Information

Sealcon Metric Dome Cable Glands Comparison Chart


Options & Accessories
Sealcon NM-40-GY M40 Locking Nut Sealcon OM-40-BN M40 Buna-N O-Ring
