Mencom M12 Cordset, 3 Pole, Female Right Angle, 5 M


Mencom Micro DC Cordset - MDC-3FP-5M-R

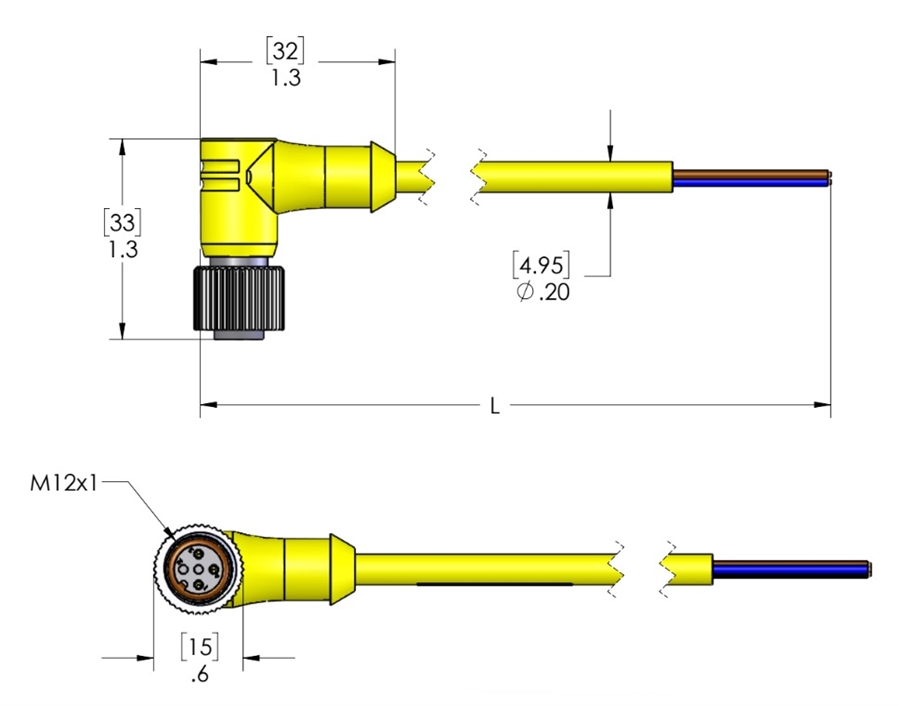

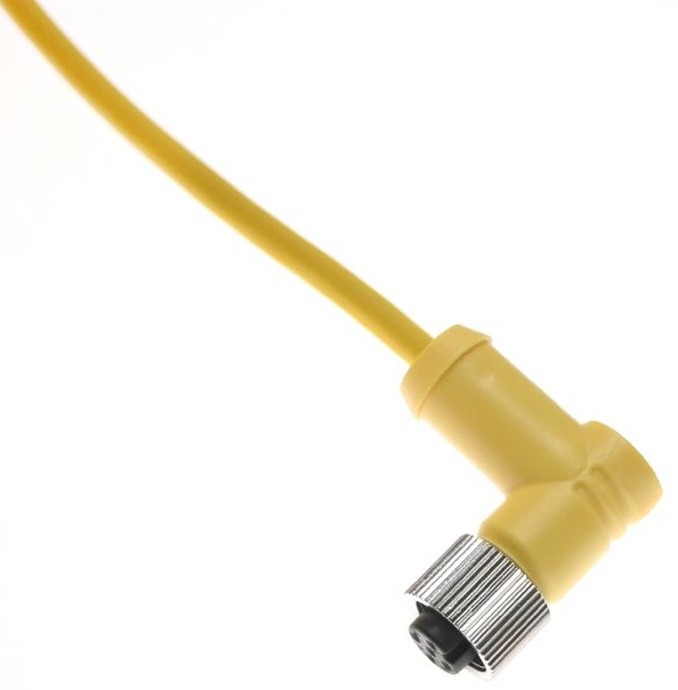

Mencom MDC-3FP-5M-R M12 Cordset, 3 Pole, Female Right Angle, 5 M

Alternative Views:


Price: $19.16
MFG P/N: MDC-3FP-5M-R
MFG: Mencom
Weight (lbs): 0.4

Quantity in Stock :69


Availability:
In Stock
Product Code: MDC-3FP-5M-R
Qty:

Description


The Mencom MDC-3FP-5M-R Micro DC (M12) female right angle cordset features a 3 pin insert, 22 gauge wire and 5 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets use an M12 coupling nut and provide plug and play solutions for various applications.

Pin #1 - Brown
Pin #2 - Not Used
Pin #3 - Blue
Pin #4 - Black
Pin #5 - Not Used

Specifications

  • Body- Yellow PVC
  • Insulator- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/3 AWM 2661 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 22
  • Pin Count- 3
  • Cable Length- 5 meters (16.4 ft)
  • Cable O.D.- 0.2
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Right Angle
  • Coupling Thread- Female
  • Mating Thread / Type Head- M12
  • Nut- No
  • Approvals- UL & CUL Listed

Can be compatible with certain Turck Microfast M12 Connectors and Brad Harrison/Molex 120065-1451

M12 Molded Cable Cordsets & Connectors Overview

Mencom M12 Molded Cordset Part Number Guide

Additional Product Information
Mencom Female Right Angle M12 Molded Cable Cordsets
Pin Count Cable Length (meters) Cable Type Wire AWG Part Number
2 4 Yellow PVC 22 MDC-2FP-4M-R
3 1 Yellow PVC 22 MDC-3FP-1M-R
3 2 Yellow PVC 22 MDC-3FP-2M-R
3 4 Yellow PVC 22 MDC-3FP-4M-R
3 5 Yellow PVC 22 MDC-3FP-5M-R
3 10 Yellow PVC 22 MDC-3FP-10M-R
3 4 Yellow PVC 18 MDC-3FPX-4M-R
3 1 Yellow PUR 22 MDCP-3FP-1M-R
4 1 Yellow PVC 22 MDC-4FP-1M-R
4 2 Yellow PVC 22 MDC-4FP-2M-R
4 4 Yellow PVC 22 MDC-4FP-4M-R
4 5 Yellow PVC 22 MDC-4FP-5M-R
4 5 Black PVC 22 MDC-4FP-5M-R-B
4 10 Yellow PVC 22 MDC-4FP-10M-R
4 15 Yellow PVC 22 MDC-4FP-15M-R
4 20 Yellow PVC 22 MDC-4FP-20M-R
4 1 Yellow PVC 18 MDC-4FPX-1M-R
4 2 Yellow PVC 18 MDC-4FPX-2M-R
4 4 Yellow PVC 18 MDC-4FPX-4M-R
4 5 Yellow PVC 18 MDC-4FPX-5M-R
4 10 Yellow PVC 18 MDC-4FPX-10M-R
4 15 Yellow PVC 18 MDC-4FPX-15M-R
4 2 Yellow PVC Shielded 22 MDCM-4FP-2M-R
4 4 Yellow PVC Shielded 22 MDCM-4FP-4M-R
4 5 Yellow PVC Shielded 22 MDCM-4FP-5M-R
5 1 Yellow PVC 22 MDC-5FP-1M-R
5 2 Yellow PVC 22 MDC-5FP-2M-R
5 2 Black PVC Jacketed
Stainless Steel
22 MDC-5FP-2M-R-A03
5 4 Yellow PVC 22 MDC-5FP-4M-R
5 5 Yellow PVC 22 MDC-5FP-5M-R
5 5 Black PVC Jacketed
Stainless Steel
22 MDC-5FP-5M-R-A03
5 10 Yellow PVC 22 MDC-5FP-10M-R
5 2 Yellow PVC 18 MDC-5FPX-2M-R
5 5 Yellow PVC 18 MDC-5FPX-5M-R
5 10 Yellow PVC 18 MDC-5FPX-10M-R
5 15 Yellow PVC 18 MDC-5FPX-15M-R
5 2 Yellow PVC Shielded 22 MDCM-5FP-2M-R
5 4 Yellow PVC Shielded 22 MDCM-5FP-4M-R
5 5 Yellow PVC Shielded 22 MDCM-5FP-5M-R
5 5 Yellow PUR 22 MDCP-5FP-5M-R
5 10 Yellow PUR 22 MDCP-5FP-10M-R
6 5 Yellow PVC Shielded 24 MDCM-6FP-5M-R
8 1 Yellow PUR 24 MDCP-8FP-1M-R
8 2 Yellow PUR 24 MDCP-8FP-2M-R
8 5 Yellow PUR 24 MDCP-8FP-5M-R
8 10 Yellow PUR 24 MDCP-8FP-10M-R
8 20 Yellow PUR 24 MDCP-8FP-20M-R
12 2 Black PUR Shielded 24 MDCPM-12FP-2M-R-B
12 5 Black PUR Shielded 24 MDCPM-12FP-5M-R-B
12 10 Black PUR Shielded 24 MDCPM-12FP-10M-R-B
