Lumberg Automation RKWT 4-295/5M M12 Cordset, Female Right Angle, 4 Pin, 5 M

Lumberg Automation RKWT 4-295/5M M12 Cordset
Lumberg Automation RKWT 4-295/5M M12 Cordset, Female Right Angle, 4 Pin, 5 M



Alternative Views:


Price: $17.06
MFG P/N: 7907
MFG: Lumberg Automation
Weight (lbs): 0.4

Quantity in Stock :6


Availability:
In Stock
Product Code: 7907
Qty:


Description


The Lumberg Automation 7907 RKWT 4-295/5M M12 female right angle cordset features a 4 pin insert with a rated voltage of 250V, a rated current of 4A and 5 meters of cable. Protection class IP 65, IP 67. The cable has a black PVC jacket, and the connector has gold plated copper alloy contacts. The A-coded connector has a translucent body. Intended for applications with sensors and actuators. Oil and chemical resistant.

Pin #1- Brown
Pin #2- White
Pin #3- Blue
Pin #4- Black

Specifications

  • Cable Type- Black PVC
  • Type of Contact- Female Right Angle
  • Number of Pins- 4
  • Rated Voltage- 250 V
  • Rated Current- 4 Amps
  • Conductor Size- 0.34mm2
  • Cable OD- .2" (5.2 mm)
  • Contact Resistance- </= 10 mOhm
  • Insulation Resistance- > 109 Ohm
  • Protection Class- IP 65, IP 67
  • Contact Material- Gold Plated Copper Alloy
  • Housing Material- Translucent TPU
  • Insert Material- Orange TPU
  • Coupling Nut Material- Nickel Plated Brass
  • O-Ring- FKM
  • Operating Temperature- -40 C to +90 C (-40 F to 194 F)
  • Cable Length- 5 meters (16.4 ft)
  • Approvals- C UR US, RoHS Compliant

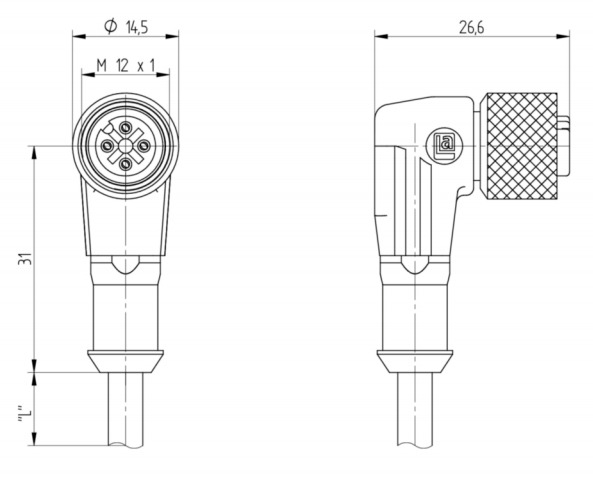

Lumberg Automation RKWT 4-295/5M 4 Pin Female M12 Molded Cable

Additional Product Information
Lumberg Automation M12 Molded Cordset Part Number Guide
M12 Molded Cable Cordsets & Connectors Overview

Lumberg Automation Female Right Angle M12 Molded Cable Cordsets
Pin Count Cable Length (meters) Cable Type Wire AWG Part Number
3 2 Gray PVC 22 RKWT 4-3-659/2M
3 5 Gray PVC 22 RKWT 4-3-659/5M
3 10 Gray PVC 22 RKWT 4-3-659/10M
4 2 Black PUR 22 RKWT 4-225/2M
4 2 Gray PVC 22 RKWT 4-646/2M
4 2 Orange PVC 22 RKWTH 4-182/2M
4 5 Black PVC 22 RKWT 4-295/5M
4 5 Gray PVC 22 RKWT 4-646/5M
4 10 Yellow PVC 22 RKWT 4-633/10M
4 10 Gray PVC 22 RKWT 4-646/10M
5 2 Gray PVC 22 RKWT 5-647/2M
5 5 Gray PVC 22 RKWT 5-647/5M
5 5 Yellow PVC 22 RKWT 5-612/5M
5 10 Gray PVC 22 RKWT 5-647/10M
8 2 Gray PVC 24 RKWT 8-661/2M
8 5 Gray PVC 24 RKWT 8-661/5M
8 10 Gray PVC 24 RKWT 8-661/10M
