Mencom MDCPM-12FP-10M-R-B M12 Cordset, 12 Pole, Female Right Angle, Black PUR, 10 M

12 Pole M12 Molded Cable - MDCPM-12FP-10M-R-B
Mencom MDCPM-12FP-10M-R-B M12 Cordset, 12 Pole, Female Right Angle, Black PUR, 10 M

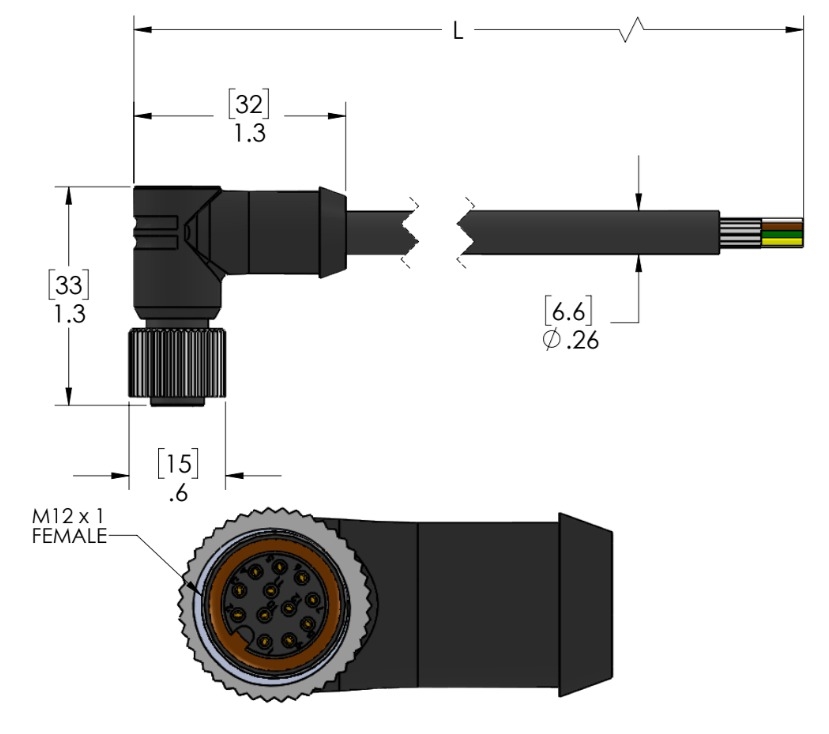

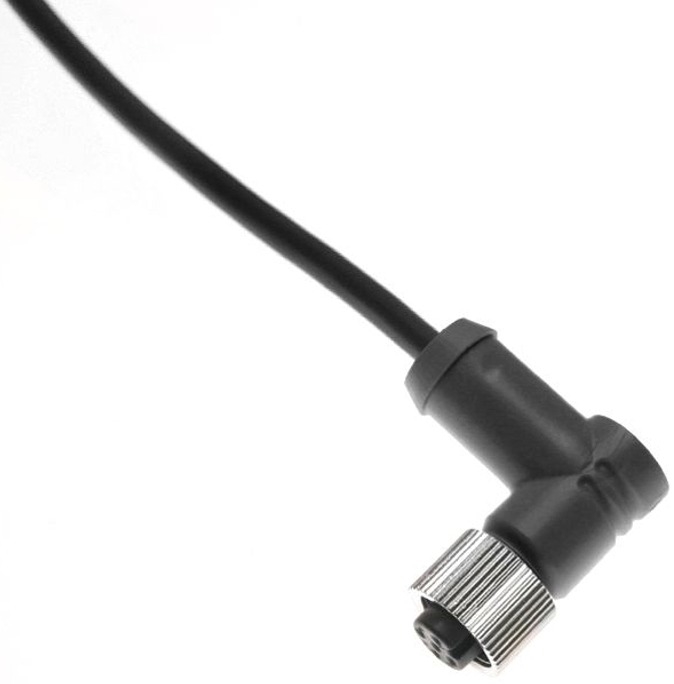

Alternative Views:
Price: $96.41
Note: Delivery: 2-5 Business Days
MFG P/N: MDCPM-12FP-10M-R-B
MFG: Mencom
Weight (lbs): 1.25

Quantity in Stock :19


Availability: In Stock
Product Code: MDCPM-12FP-10M-R-B
Qty:

Description


The Mencom MDCPM-12FP-10M-R-B Micro DC (M12) shielded female right angle molded cable features a 12 pin insert, 24 gauge wire and 10 meters of cable. The body is black polyurethane with contacts made from gold plated copper alloy and a foil mylar shield with 26 AWG drain wire. The cable is rated at 60V and 80 C. Rated IP 69. This Mencom MDC series cordset is classified by its M12 coupling nut. It has plug and play abilities for various applications. The shield is not connected to the coupling nut and the drain wire is left long on the free end.

Specifications

  • Body- Black PUR
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- Black PUR Jacket, 24/12 UL/CSA Foil Shield w/ 26 AWG Drain Wire
  • Shielding- Yes
  • Rated Voltage- 60 V
  • Rated Current- 2 Amps
  • Wire Gauge- 24
  • Pin Count- 12
  • Cable Length- 10 meters (32.8 ft)
  • Cable O.D.- 0.26
  • Temperature- -40 C to 80 C (-40 F to 176 F)
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Right Angle
  • Coupling Thread- Female
  • Mating Thread / Type Head- M12
  • Nut- No

M12 Molded Cable Cordsets & Connectors Overview

Mencom M12 Molded Cordset Part Number Guide
Additional Product Information
Mencom Female Right Angle M12 Molded Cable Cordsets
Pin Count Cable Length (meters) Cable Type Wire AWG Part Number
2 4 Yellow PVC 22 MDC-2FP-4M-R
3 1 Yellow PVC 22 MDC-3FP-1M-R
3 2 Yellow PVC 22 MDC-3FP-2M-R
3 4 Yellow PVC 22 MDC-3FP-4M-R
3 5 Yellow PVC 22 MDC-3FP-5M-R
3 10 Yellow PVC 22 MDC-3FP-10M-R
3 4 Yellow PVC 18 MDC-3FPX-4M-R
3 1 Yellow PUR 22 MDCP-3FP-1M-R
4 1 Yellow PVC 22 MDC-4FP-1M-R
4 2 Yellow PVC 22 MDC-4FP-2M-R
4 4 Yellow PVC 22 MDC-4FP-4M-R
4 5 Yellow PVC 22 MDC-4FP-5M-R
4 5 Black PVC 22 MDC-4FP-5M-R-B
4 10 Yellow PVC 22 MDC-4FP-10M-R
4 15 Yellow PVC 22 MDC-4FP-15M-R
4 20 Yellow PVC 22 MDC-4FP-20M-R
4 1 Yellow PVC 18 MDC-4FPX-1M-R
4 2 Yellow PVC 18 MDC-4FPX-2M-R
4 4 Yellow PVC 18 MDC-4FPX-4M-R
4 5 Yellow PVC 18 MDC-4FPX-5M-R
4 10 Yellow PVC 18 MDC-4FPX-10M-R
4 15 Yellow PVC 18 MDC-4FPX-15M-R
4 2 Yellow PVC Shielded 22 MDCM-4FP-2M-R
4 4 Yellow PVC Shielded 22 MDCM-4FP-4M-R
4 5 Yellow PVC Shielded 22 MDCM-4FP-5M-R
5 1 Yellow PVC 22 MDC-5FP-1M-R
5 2 Yellow PVC 22 MDC-5FP-2M-R
5 2 Black PVC Jacketed
Stainless Steel 		22 MDC-5FP-2M-R-A03
5 4 Yellow PVC 22 MDC-5FP-4M-R
5 5 Yellow PVC 22 MDC-5FP-5M-R
5 5 Black PVC Jacketed
Stainless Steel 		22 MDC-5FP-5M-R-A03
5 10 Yellow PVC 22 MDC-5FP-10M-R
5 2 Yellow PVC 18 MDC-5FPX-2M-R
5 5 Yellow PVC 18 MDC-5FPX-5M-R
5 10 Yellow PVC 18 MDC-5FPX-10M-R
5 15 Yellow PVC 18 MDC-5FPX-15M-R
5 2 Yellow PVC Shielded 22 MDCM-5FP-2M-R
5 4 Yellow PVC Shielded 22 MDCM-5FP-4M-R
5 5 Yellow PVC Shielded 22 MDCM-5FP-5M-R
5 5 Yellow PUR 22 MDCP-5FP-5M-R
5 10 Yellow PUR 22 MDCP-5FP-10M-R
6 5 Yellow PVC Shielded 24 MDCM-6FP-5M-R
8 1 Yellow PUR 24 MDCP-8FP-1M-R
8 2 Yellow PUR 24 MDCP-8FP-2M-R
8 5 Yellow PUR 24 MDCP-8FP-5M-R
8 10 Yellow PUR 24 MDCP-8FP-10M-R
8 20 Yellow PUR 24 MDCP-8FP-20M-R
12 2 Black PUR Shielded 24 MDCPM-12FP-2M-R-B
12 5 Black PUR Shielded 24 MDCPM-12FP-5M-R-B
12 10 Black PUR Shielded 24 MDCPM-12FP-10M-R-B
