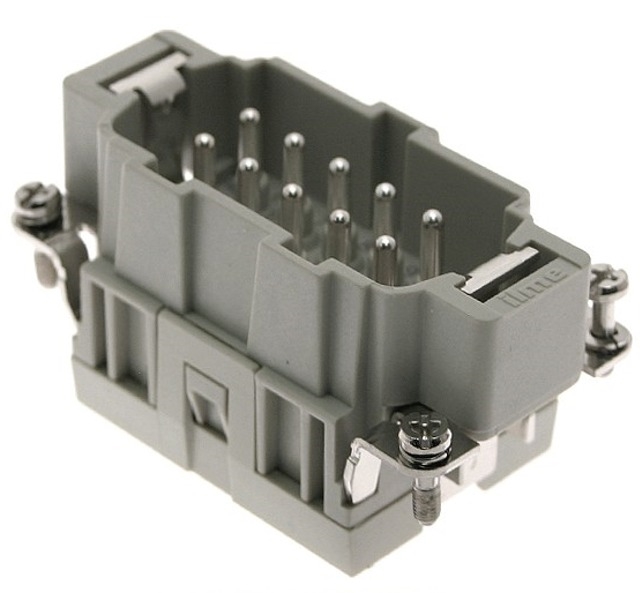

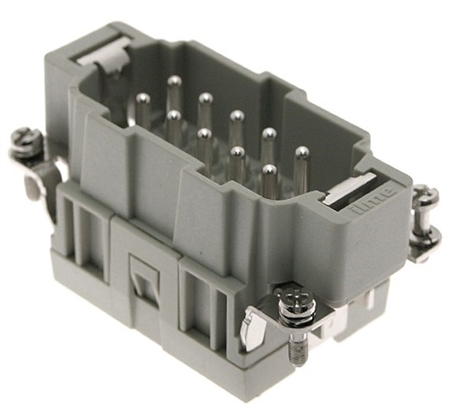

ILME CSEM-10 CSE Series Insert, Male, Size 57.27, 10 Pin, 16A

CSEM-10
ILME CSE Series Insert, Male, Size 57.27, 10 Pin, 16A - CSEM-10



Alternative Views:


Our Price: $10.70
MFG P/N: CSEM-10
MFG: ILME
Weight (lbs): 0.14


Availability:
Ships in 1-2 business days
Product Code: CSEM-10
Qty:


Description


The ILME CSEM-10 CSE series standard male insert fits size 57.27 enclosures and is 10 pin + ground with a voltage rating of 600V and a rated current of 16A. The housing is glass reinforced thermoplastic with silver plated contacts. The thermoplastic housing is self-extinguishing and is rated UL 94 V0. Rated IP 20. Termination: spring. The CSEM-10 is especially useful in automation applications when a fast, easy disconnect is needed.

Specifications

  • Housing- Glass Reinforced Thermoplastic
  • Contacts- Silver Plated
  • Gender- Male
  • Pin Count- 10 + Ground
  • Rated Current- 16 Amps
  • Rated Voltage- 600 V
  • ILME Series- CSE
  • Housing Type- Standard
  • Operating Temperature- -40 C to 125 C (-40 F to 257 F)
  • Insert Dimension- 57.27
  • Enclosure Dimension- 57.27
  • Termination- Spring
  • Upper AWG- 14
  • Lower AWG- 26
  • Insulation Resistance- >= 10GOhm
  • Mechanical Life- >= 500 Cycles
  • Contact Resistance- <= 3mOhm
  • Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
  • Approvals- UL, CSA, CCC, GL, GOST

Compatible Enclosures

Series Part Number
CH CHI-10C, CHI-10CS, CHI-10L, CHI-10LS, CHI-10, CHI-10YC
CH, CA, MH CHP-10, CHP-10.2, CHP-10CS, CHP-10CS2, MHP-10L20
CHP-10L, CHP-10L2, CHP-10LS, CHP-10LS2
CAP-10.21, CAP-10.221, CAP-10.229, CAP-10.29, CAP-10CS2, CAP-10L2
CAP-10L229, CAP-10L29, CAP-10LS, CAP-10LS2, CAP-10LS229, CAP-10LS29
CAPW-10.221, CAP-10L, CHC-10C
CH, CA, MH CHO-10, CHO-10L, CHO-10X, CHC-10,
CAO-10.21, CAO-10.29, CAO-10L21, CAO-10L29, CAO-10X
CAO-10X29, CAF-10, MHO-10L20, MHO-10L25, CAV-10X
CH,CA, MH, MA CHV-10, CHV-10L, CHV-10G, CHC-10G, CHC-10L, CHC-10LG
CAV-10.21, CAV-10.29, CAV-10L21, CAV-10L29, CAV-10.213
CAV-10G, CAV-10G29, CAV-10LG21, CAV-10LG29, CAV-10X29
MHV-10L25, MAV-10.40, MHO-10.20, MAV-10L32, CHV-10LG, CHV-10X, MHV-10L20
MHV-10.20, MHO-10.25, MHV-10.25, MAV-10.32
MAO-10.32
CH, CA-AGGRESSIVE ENVIRONMENTS CHIW-10, CHCW-10, CAOW-10L21, CHCW-10LG, CAOW-10.21
CH, CA-EMC CHIS-10, CHCS-10
TC, TM TCHI-10, TCHC-10, THIH-10
TMAP-10.25, TMAP-10.32, TMAO-10.25, TMAO-10.32
JCVI JCVI-10, JCVI-10L
CG CGI-10

ILME 57.27 10 Pin Male Insert with Spring Termination CSEM-10
