ILME C-Type Metallic Hood, Size 57.27, M20, 2 Pegs


ILME MHV-10L20
ILME MHV-10L20 C-Type Metallic Hood, Size 57.27, M20, 2 Pegs

Alternative Views:


Price: $15.70
Note: Please call or email [email protected] for alternatives
MFG P/N: MHV-10L20
MFG: ILME
Weight (lbs): 0.27

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: MHV-10L20
Qty:


Description

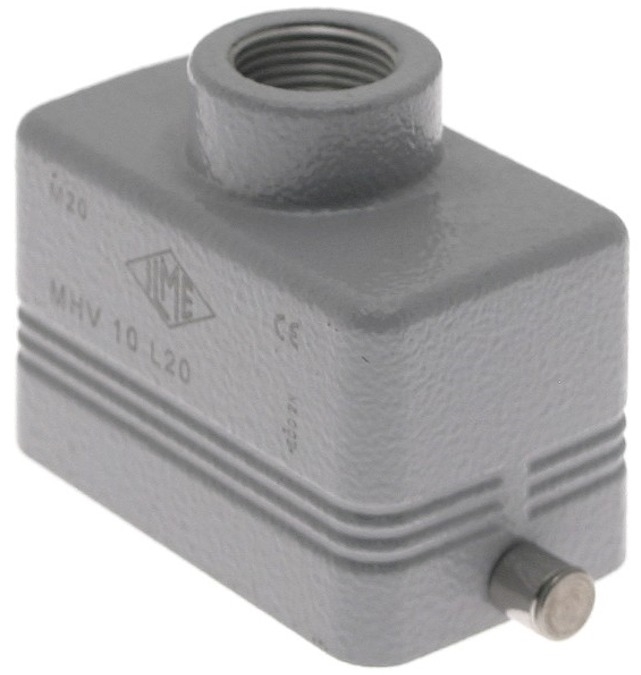

The ILME MHV-10L20 C-Type standard metallic hood is size 57.27 and features 2 pegs with an M20 cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 57 x 27 mm (2.24" x 1.06"). Rated IP 66 when attached and locked down. The MHV-10L20 is intended to be durable and has a life expectancy over 500 cycles.

Specifications

  • Body- Die Cast Aluminum
  • ILME Series- MH
  • Insert Dimension- 57.27
  • Enclosure Dimension- 57.27
  • Housing Type- Metallic, Standard
  • Enclosure Type- Hoods for Single Lever
  • Mounting Style- Cable
  • Hood Entry- Top
  • Hood Thread- M20
  • Pegs- 2 Pegs
  • Temperature Range- -40 C to +125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Approvals- C UR US, CCC, GL

Compatible Inserts

Series Part Number
CDD CDDF-42, CDDM-42
CQE CQEF-18, CQEM-18
CSH, CDSH CSHF-10, CSHM-10, CDSHM-18, CDSHF-18, CMSHF-03, CMSHM-03
CCE CCEF-10, CCEM-10
CNE, CSE CNEF-10T, CNEM-10T, CNEF-10TX, CNEM-10TX
CSEF-10, CSEM-10
CSS CSSF-10, CSSM-10
CMSE CMSEF-03, CMSEM-03
CMCE CMCEF-03
CMCEM-03
CX CXF-8/24, CXM-8/24

ILME MHV-10L20 57.27 M20 Top Entry Hood
