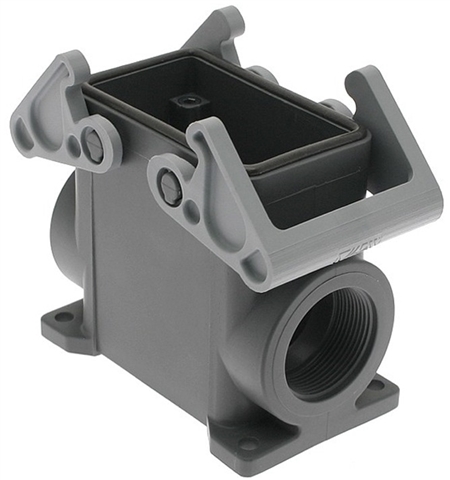

ILME TMAP-10.32 T-Type Surface Mount Housing, Size 57.27, Double Lever, M32


TMAP-10.32
ILME T-Type Surface Mount Housing, Size 57.27, Double Lever, M32 - TMAP-10.32



Alternative Views:


Price: $26.68
Note: Please call or email [email protected] for alternatives
MFG P/N: TMAP-10.32
MFG: ILME
Weight (lbs): 0.35

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: TMAP-10.32
Qty:


Description


The ILME TMAP-10.32 T-Type surface mount insulating housing is size 57.27 and features two levers with an M32 cable entry. The body is plastic with plastic levers. Insert center distance: 57 x 27 mm. Rated IP 65 when attached and locked down. The TMAP-10.32 is resistant to corrosion and is a low cost solution for use under extreme conditions.

Specifications

  • Body- Plastic
  • ILME Series- TM
  • Insert Dimension- 57.27
  • Enclosure Dimension- 57.27
  • Housing Type- Insulating
  • Enclosure Type- 2 Levers
  • Mounting Style- Surface Mount
  • Temperature Range- -40 C to 90 C (-40 F to 194 F)
  • Gasket- Yes
  • Hood Entry- Side
  • Hood Thread- M32
  • Ingress Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)
  • Insert Center Distance- 57 x 27 mm (2.24" x 1.06")
  • Approvals- C UR US, CCC

Compatible Inserts

Series Part Number
CDD CDDF-42
CDDM-42
CQE CQEF-18
CQEM-18
CSH, CDSH CSHF-10, CDSHF-18
CSHM-10, CDSHM-18, CMSHF-03, CMSHM-03
CCE CCEF-10
CCEM-10
CNE, CSE CNEF-10T, CNEF-10TX, CNEM-10T, CNEM-10TX
CSEF-10, CSEM-10
CSS CSSF-10
CSSM-10
CMSE CMSEF-03, CMSEM-03
CMCE CMCEF-03
CMCEM-03
CXF CXF-8/24
CXM-8/24

ILME 2 Lever 57.27 Insulating Surface Mount Base TMAP-10.32
