Mencom Panel Interface Connectors (PIC) attach to the exterior of the control panel to allow access to the PLC or PAC without opening the control cabinet. The Mencom GF-DB15-RJ45-USB-BFAF-32 PIC has a 120V GFCI Duplex Receptacle, a 15 Pin Female Ext/Male Interior D-Sub, female/female ethernet and a Style B to Style A USB port in a size 32 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

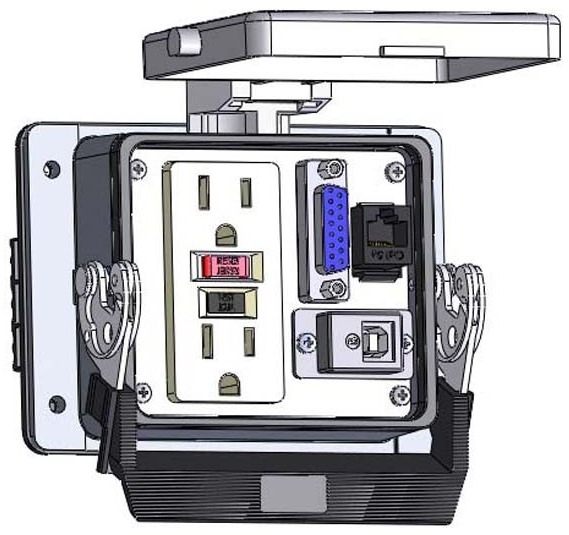

Note: Image is an approximation, actual item may differ
Specifications
- Body- Epoxy coated die cast aluminum
- Gasket- Thermoplastic elastomer
- Handle- Polyamide
- Levers- Stainless Steel
- Volts- 125 V
- Amps- 15 Amps
- SCCR- 10kA
- Housing- Size 32 Bulkhead Housing
- Power Ports- 120V GFCI Duplex Receptacle
- D-Sub- 15 Pin D-Sub Female Ext. / Male Int.
- RJ / Ethernet- RJ45 Ethernet Female / Female
- USB- Style B Female to Style A Female
- IP Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Approvals- UL & CUL Recognized
|
|
|
 |
|
 |
|
