Mencom DP-USB-06-R-32 Panel Interface Connector, Duplex outlet, USB, 3A reset - 6 Foot

Alternative Views:

Price: $192.67

Note: Please call or email [email protected] for alternatives
MFG P/N: DP-USB-06-R-32
MFG: Mencom
Weight (lbs): 1.55

Quantity in Stock :(Out of Stock)

Availability: Out of Stock
Product Code: DP-USB-06-R-32

Qty:

Description

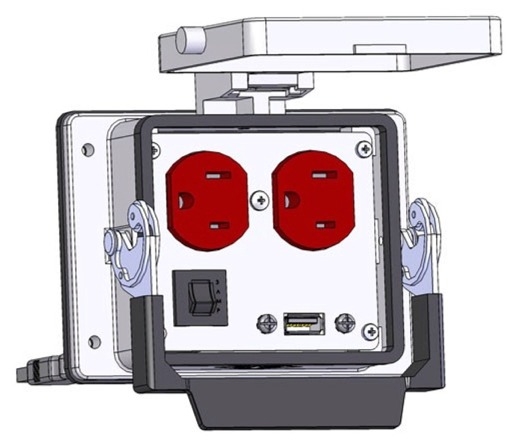

Mencom Panel Interface Connectors (PIC) mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The Mencom DP-USB-06-R-32 PIC features a 120V Duplex Receptacle, 6 feet of USB Type A connector cable, and a 3 Amp Resettable fuse in a size 32 housing. Cable is female form A to male form A. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

Body- Epoxy coated die cast aluminum
Gasket- Thermoplastic elastomer
Handle- Polyamide
Levers- Stainless Steel
Volts- 125 V
Amps- 3 Amps
SCCR- 10kA
Housing- Size 32 Bulkhead Housing

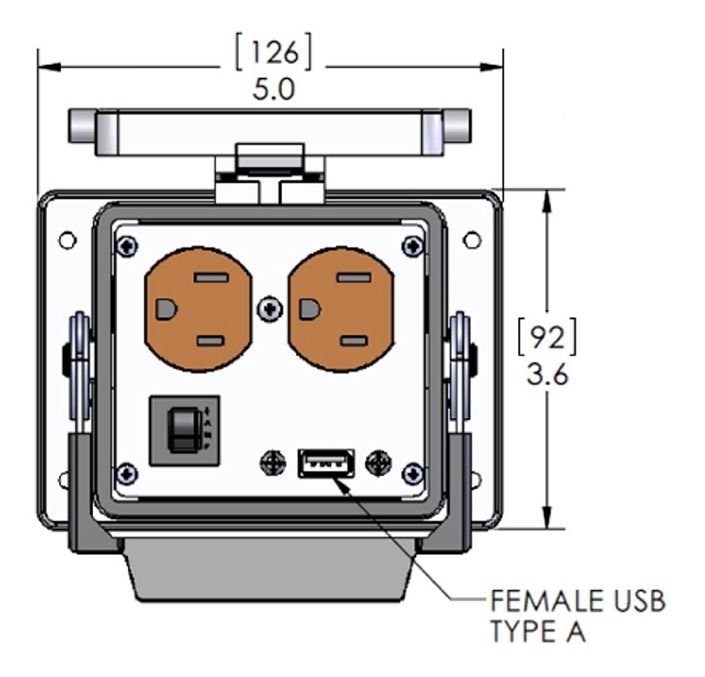

Power Ports- 120V Duplex Receptacle

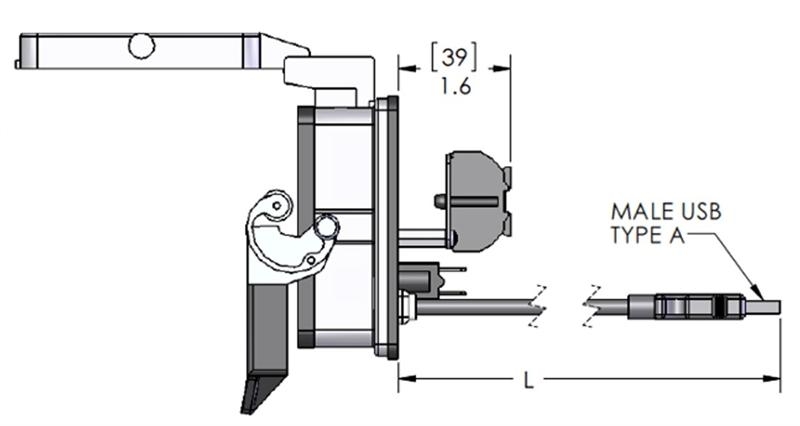

USB- 6 Foot Cable, Female Form A to Male Form A
Fuse- 3 Amp Resettable

Mencom Panel Interface Connector Part Number Guide

Mencom Panel Interface Connector Guide
