Mencom GF-DB15-R-32 Panel Interface Connector, GFCI Duplex outlet, DB15, 3A reset

Mencom GF-DB15-R-32 PIC with 15 Pin D-Sub & GFCI Outlet
Mencom Panel Interface Connector, GFCI Duplex outlet, DB15, 3A reset

Alternative Views:
Price: $254.81
Note: Delivery: Up to 7-10 business days
MFG P/N: GF-DB15-R-32
MFG: Mencom
Weight (lbs): 1.65

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: GF-DB15-R-32
Qty:


Description

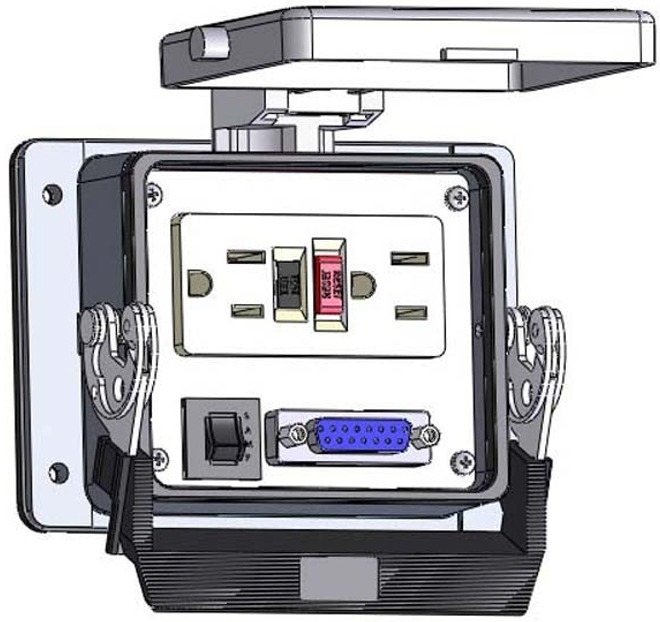

Mencom Panel Interface Connectors (PIC), or programming interfaces, mount to the exterior of the control panel and permit access to the PLC or PAC without needing to open the control cabinet. The Mencom GF-DB15-R-32 PIC features a 120V GFCI Duplex Receptacle, a 15 Pin Female Ext/Male Interior D-Sub, and a 3 amp resettable fuse in a size 32 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

  • Body- Epoxy coated die cast aluminum
  • Gasket- Thermoplastic elastomer
  • Handle- Polyamide
  • Levers- Stainless Steel
  • Volts- 125 V
  • Amps- 3 Amps
  • SCCR- 10kA
  • Housing- Size 32 Bulkhead Housing
  • Power Ports- 120V GFCI Duplex Receptacle
  • D-Sub- 15 Pin D-Sub Female Ext. / Male Int.
  • Fuse- 3 Amp resettable
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Approvals- UL & CUL Recognized

GF-DB15-R-32 Mencom Panel Interface Connector with 15 Pin D-Sub
