Home > Liquid Tight Cable Glands > Stainless Steel Dome Fittings > PG Stainless Steel Dome Fittings >

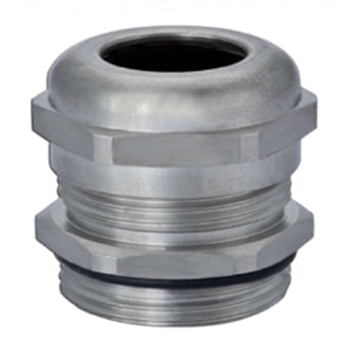

Sealcon CD36AR-SS PG 36 Dome .79" - 1.02" (20 - 26 mm) O.D. Cord Grip w/ NBR Insert

Sealcon CD36AR-SS PG 36 Cable Gland
Sealcon CD36AR-SS PG 36 Dome .79" - 1.02" (20 - 26 mm) O.D. Cord Grip w/ NBR Insert



Alternative Views:


Price: $77.90
Note: Please call or email [email protected] for alternatives
MFG P/N: CD36AR-SS
MFG: Sealcon
Weight (lbs): 0.25

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: CD36AR-SS
Qty:


Description


Sealcon CD36AR-SS high quality stainless steel cord grip is designed for the toughest applications. Also known as Hummel 1.695.3600.15. Sold Individually. Locking nut sold separately. Note: This is a made to order item, so please allow for a longer lead time.

Specifications

  • Thread Size: PG 36
  • Cable O.D. Range: .79" - 1.02" (20 - 26 mm)
  • Through Hole Diameter: 1.85" (47 mm)
  • Body Length: 1.38" (35 mm)
  • Thread Length: .31" (8 mm)
  • Wrench Flat Dome: 1.97" (50 mm)
  • Wrench Flat Body: 1.97" (50 mm)

Features

  • 303 Stainless Steel Material with Buna-N Seal & Nylon Clamping Insert
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd

Sealcon CD36AR-SS stainless steel cable glands, also known as strain relief fittings or cord grips, are used in many industries when assisting customers in connecting wire or cable to different applications. This cord grip provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. This stainless steel fitting with PG 36 thread provides a product of exceptional quality for your application. Applications where corrosion is a primary concern are typically most benefitted the most from a stainless steel cord grip. Examples include marine applications, off-shore rigs, food processing, chemical plants and other jobs that are in harsher environments.

Sealcon Reduced Insert PG 36 Stainless Steel Fitting CD36AR-SS

Additional Product Information
Sealcon PG Stainless Steel Dome Fittings
Part Numbers Cable Range Thread Range
NBR Insert Viton Insert Inches (mm)
CD07AA-SS CD07AA-SV .12" - .26" (3 - 6.5 mm) PG 7
CD07AR-SS CD07AR-SV .08" - .20" (2 - 5 mm) PG 7
CD09AA-SS CD09AA-SV .16" - .31" (4 - 8 mm) PG 9
CD09AR-SS CD09AR-SV .08" - .24" (2 - 6 mm) PG 9
CD11AA-SS CD11AA-SV .20" - .39" (5 - 10 mm) PG 11
CD11AR-SS CD11AR-SV .12" - .28" (3 - 7 mm) PG 11
CD13AA-SS CD13AA-SV .24" - .47" (6 - 12 mm) PG 13 / 13.5
CD13AR-SS CD13AR-SV .20" - .35" (5 - 9 mm) PG 13 / 13.5
CD16AA-SS CD16AA-SV .39" - .55" (10 - 14 mm) PG 16
CD16AR-SS CD16AR-SV .28" - .47" (7 - 12 mm) PG 16
CD21AA-SS CD21AA-SV .51" - .71" (13 - 18 mm) PG 21
CD21AR-SS CD21AR-SV .35" - .63" (9 - 16 mm) PG 21
CD29AA-SS CD29AA-SV .71" - .98" (18 - 25 mm) PG 29
CD29AR-SS CD29AR-SV .51" - .79" (13 - 20 mm) PG 29
CD36AA-SS CD36AA-SV .87" - 1.26" (22 - 32 mm) PG 36
CD36AR-SS CD36AR-SV .79" - 1.02" (20 - 26 mm) PG 36
