Sealcon CD29AR-SS PG 29 Dome .51" - .79" (13 - 20 mm) O.D. Cord Grip w/ NBR Insert

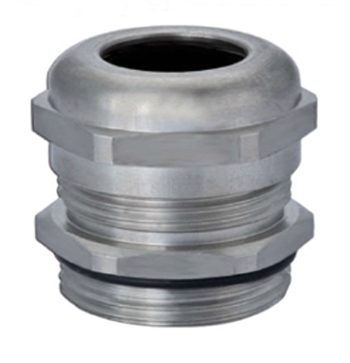

Sealcon CD29AR-SS PG 29 Cable Gland
Sealcon CD29AR-SS PG 29 Dome .51" - .79" (13 - 20 mm) O.D. Cord Grip w/ NBR Insert



Alternative Views:


Price: $61.37
Note: Please call or email [email protected] for alternatives
MFG P/N: CD29AR-SS
MFG: Sealcon
Weight (lbs): 0.2

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: CD29AR-SS
Qty:


Description


Sealcon CD29AR-SS high quality stainless steel cord grip is designed for the toughest applications. Also known as Hummel 1.695.2900.15. Sold Individually. Locking nut sold separately. Note: This is a made to order item, so please allow for a longer lead time.

Specifications

  • Thread Size: PG 29
  • Cable O.D. Range: .51" - .79" (13 - 20 mm)
  • Through Hole Diameter: 1.47" (37.3 mm)
  • Body Length: 1.14" (29 mm)
  • Thread Length: .31" (8 mm)
  • Wrench Flat Dome: 1.61" (41 mm)
  • Wrench Flat Body: 1.61" (41 mm)

Features

  • 303 Stainless Steel Material with Buna-N Seal & Nylon Clamping Insert
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd

Sealcon CD29AR-SS stainless steel cord grips, also known as cable glands or strain relief fittings, are used to assist customers in many industries when connecting wire or cable to different applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. This stainless steel cable gland with PG 29 thread provides a high quality product for your application. Applications that receive the most benefit from a stainless steel cord grip are those in which corrosion is a main concern. This can include marine applications, off-shore rigs, food processing, chemical plants and other applications that are in harsh environments.

Sealcon CD29AR-SS PG 29 Strain Relief Fitting

Additional Product Information
Sealcon PG Stainless Steel Dome Fittings
Part Numbers Cable Range Thread Range
NBR Insert Viton Insert Inches (mm)
CD07AA-SS CD07AA-SV .12" - .26" (3 - 6.5 mm) PG 7
CD07AR-SS CD07AR-SV .08" - .20" (2 - 5 mm) PG 7
CD09AA-SS CD09AA-SV .16" - .31" (4 - 8 mm) PG 9
CD09AR-SS CD09AR-SV .08" - .24" (2 - 6 mm) PG 9
CD11AA-SS CD11AA-SV .20" - .39" (5 - 10 mm) PG 11
CD11AR-SS CD11AR-SV .12" - .28" (3 - 7 mm) PG 11
CD13AA-SS CD13AA-SV .24" - .47" (6 - 12 mm) PG 13 / 13.5
CD13AR-SS CD13AR-SV .20" - .35" (5 - 9 mm) PG 13 / 13.5
CD16AA-SS CD16AA-SV .39" - .55" (10 - 14 mm) PG 16
CD16AR-SS CD16AR-SV .28" - .47" (7 - 12 mm) PG 16
CD21AA-SS CD21AA-SV .51" - .71" (13 - 18 mm) PG 21
CD21AR-SS CD21AR-SV .35" - .63" (9 - 16 mm) PG 21
CD29AA-SS CD29AA-SV .71" - .98" (18 - 25 mm) PG 29
CD29AR-SS CD29AR-SV .51" - .79" (13 - 20 mm) PG 29
CD36AA-SS CD36AA-SV .87" - 1.26" (22 - 32 mm) PG 36
CD36AR-SS CD36AR-SV .79" - 1.02" (20 - 26 mm) PG 36
