Sealcon CD16MR-SS M16 Dome .12" - .28" (3 - 7 mm) O.D. Cord Grip w/ NBR Insert

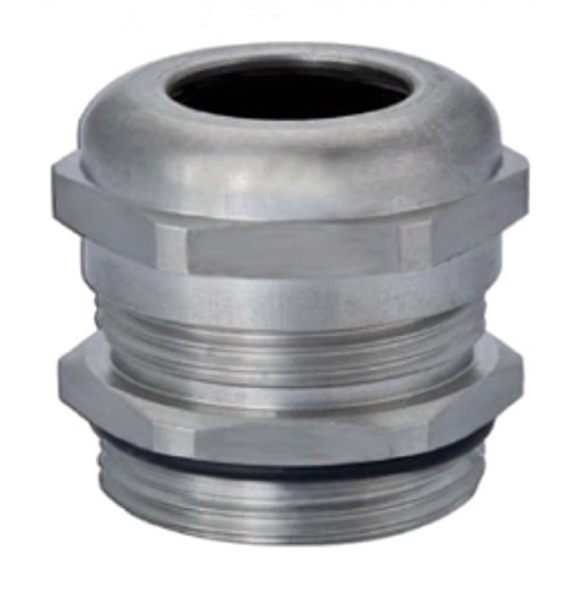

Sealcon CD16MR-SS M16 Cable Gland
Sealcon CD16MR-SS M16 Dome .12" - .28" (3 - 7 mm) O.D. Cord Grip w/ NBR Insert



Alternative Views:


Price: $37.12
MFG P/N: CD16MR-SS
MFG: Sealcon
Weight (lbs): 0.12

Quantity in Stock :110


Availability:
In Stock
Product Code: CD16MR-SS
Qty:


Description


Sealcon CD16MR-SS high quality stainless steel cord grip is designed for the toughest applications. Also known as Hummel 1.695.1600.51. Sold Individually. Locking nut sold separately. Note: Please allow for a longer lead time, as this is a special order item.

Specifications

  • Thread Size: M16 x 1.5
  • Cable O.D. Range: .12" - .28" (3 - 7 mm)
  • Through Hole Diameter: .63" (16 mm)
  • Body Length: .87" (22 mm)
  • Thread Length: .24" (6 mm)
  • Wrench Flat Dome: .87" (22 mm)
  • Wrench Flat Body: .87" (22 mm)

Features

  • 303 Stainless Steel Material with Buna-N Seal & Nylon Clamping Insert
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd
  • VDE

Sealcon CD16MR-SS stainless steel cable glands, also referred to as strain relief fittings or cord grips, are used to help customers in many industries when connecting wire or cable to various applications. This cord grip can provide a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. This stainless steel fitting with M16 x 1.5 thread provides a product of high quality for your application. Applications that benefit the most from a stainless steel cable gland are those in which corrosion is a primary concern. This includes food processing, marine applications, off-shore rigs, chemical plants and other jobs that are in harsh environments.

Sealcon M16 Metal Strain Relief Cord Grip CD16MR-SS

Additional Product Information
Sealcon Metric Stainless Steel Dome Fittings
Part Numbers Cable Range Thread Range
NBR Insert Viton Insert
CD12MA-SS CD12MA-SV .12" - .26" (3 - 6.5 mm) M12 x 1.5
CD12MR-SS CD12MR-SV .08" - .20" (2 - 5 mm) M12 x 1.5
CD16MA-SS CD16MA-SV .20" - .39" (5 - 10 mm) M16 x 1.5
CD16MR-SS CD16MR-SV .12" - .28" (3 - 7 mm) M16 x 1.5
CD20MA-SS CD20MA-SV .39" - .55" (10 - 14 mm) M20 x 1.5
CD20MR-SS CD20MR-SV .28" - .47" (7 - 12 mm) M20 x 1.5
CD25MA-SS CD25MA-SV .51" - .71" (13 - 18 mm) M25 x 1.5
CD25MR-SS CD25MR-SV .35" - .63" (9 - 16 mm) M25 x 1.5
CD32MA-SS CD32MA-SV .71" - .98" (18 - 25 mm) M32 x 1.5
CD32MR-SS CD32MR-SV .51" - .79" (13 - 20 mm) M32 x 1.5
CD40MA-SS CD40MA-SV .87" - 1.26" (22 - 32 mm) M40 x 1.5
CD40MR-SS CD40MR-SV .79" - 1.02" (20 - 26 mm) M40 x 1.5
