Sealcon CD40MR-SV M40 Dome .79" - 1.02" (20 - 26 mm) O.D. Cord Grip w/ Viton Insert

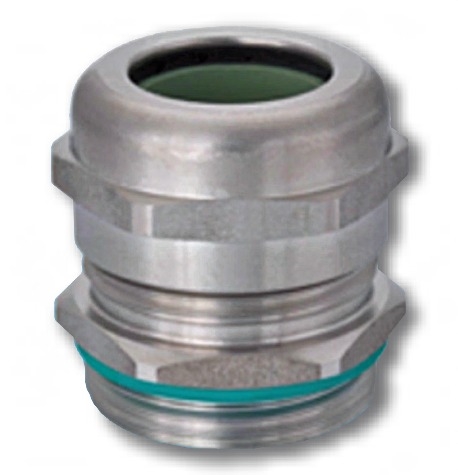

Sealcon CD40MR-SV M40 Cable Gland
Sealcon CD40MR-SV M40 Dome .79" - 1.02" (20 - 26 mm) O.D. Cord Grip w/ Viton Insert



Alternative Views:


Price: $88.12
Note: Please call or email [email protected] for alternatives
MFG P/N: CD40MR-SV
MFG: Sealcon
Weight (lbs): 0.33

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: CD40MR-SV
Qty:


Description


Sealcon CD40MR-SV high quality stainless steel cord grip is designed for the toughest applications. Also known as Hummel #1.696.4000.51. Sold Individually. Locking nut sold separately. Note: This is a special order item, so please allow for a longer delivery time.

Specifications

  • Thread Size: M40 x 1.5
  • Cable O.D. Range: .79" - 1.02" (20 - 26 mm)
  • Through Hole Diameter: 1.57" (40 mm)
  • Body Length: 1.38" (35 mm)
  • Thread Length: .31" (8 mm)
  • Wrench Flat Dome: 1.97" (50 mm)
  • Wrench Flat Body: 1.97" (50 mm)

Features

  • 303 Stainless Steel Material with Viton Seal & PVDF Clamping Insert
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • German Lloyd
  • VDE

Sealcon CD40MR-SV stainless steel strain relief fittings, cord grips and cable glands are used in many industries to assist customers in connecting their cable or wire to their applications. This cord grip can provide a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. This stainless steel cable gland with M40 x 1.5 thread provides a high quality product for your application. Applications that receive the biggest advantage from stainless steel fittings are those in which corrosion is a main concern. This includes food processing, marine applications, off-shore rigs, chemical plants and other areas that are in harsh environments.

Sealcon M40 Reduced Insert Stainless Steel Fitting CD40MR-SV

Additional Product Information
Sealcon Metric Stainless Steel Dome Fittings
Part Numbers Cable Range Thread Range
NBR Insert Viton Insert
CD12MA-SS CD12MA-SV .12" - .26" (3 - 6.5 mm) M12 x 1.5
CD12MR-SS CD12MR-SV .08" - .20" (2 - 5 mm) M12 x 1.5
CD16MA-SS CD16MA-SV .20" - .39" (5 - 10 mm) M16 x 1.5
CD16MR-SS CD16MR-SV .12" - .28" (3 - 7 mm) M16 x 1.5
CD20MA-SS CD20MA-SV .39" - .55" (10 - 14 mm) M20 x 1.5
CD20MR-SS CD20MR-SV .28" - .47" (7 - 12 mm) M20 x 1.5
CD25MA-SS CD25MA-SV .51" - .71" (13 - 18 mm) M25 x 1.5
CD25MR-SS CD25MR-SV .35" - .63" (9 - 16 mm) M25 x 1.5
CD32MA-SS CD32MA-SV .71" - .98" (18 - 25 mm) M32 x 1.5
CD32MR-SS CD32MR-SV .51" - .79" (13 - 20 mm) M32 x 1.5
CD40MA-SS CD40MA-SV .87" - 1.26" (22 - 32 mm) M40 x 1.5
CD40MR-SS CD40MR-SV .79" - 1.02" (20 - 26 mm) M40 x 1.5
