Sealcon CD16MA-SV M16 Dome .20" - .39" (5 - 10 mm) O.D. Cord Grip w/ Viton Insert

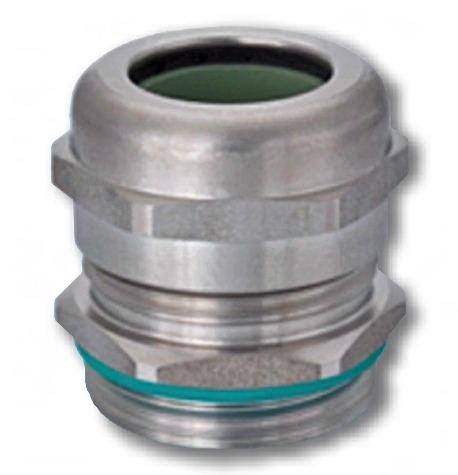

Sealcon CD16MA-SV M16 Cable Gland
Sealcon CD16MA-SV M16 Dome .20" - .39" (5 - 10 mm) O.D. Cord Grip w/ Viton Insert



Alternative Views:


Price: $39.61
MFG P/N: CD16MA-SV
MFG: Sealcon
Weight (lbs): 0.12

Quantity in Stock :506


Availability:
In Stock
Product Code: CD16MA-SV
Qty:


Description


Sealcon CD16MA-SV high quality stainless steel cord grip is designed for the toughest applications. Also known as Hummel 1.696.1600.50. Sold Individually. Locking nut sold separately. Note: Please allow for a longer delivery time, as this is a special order item.

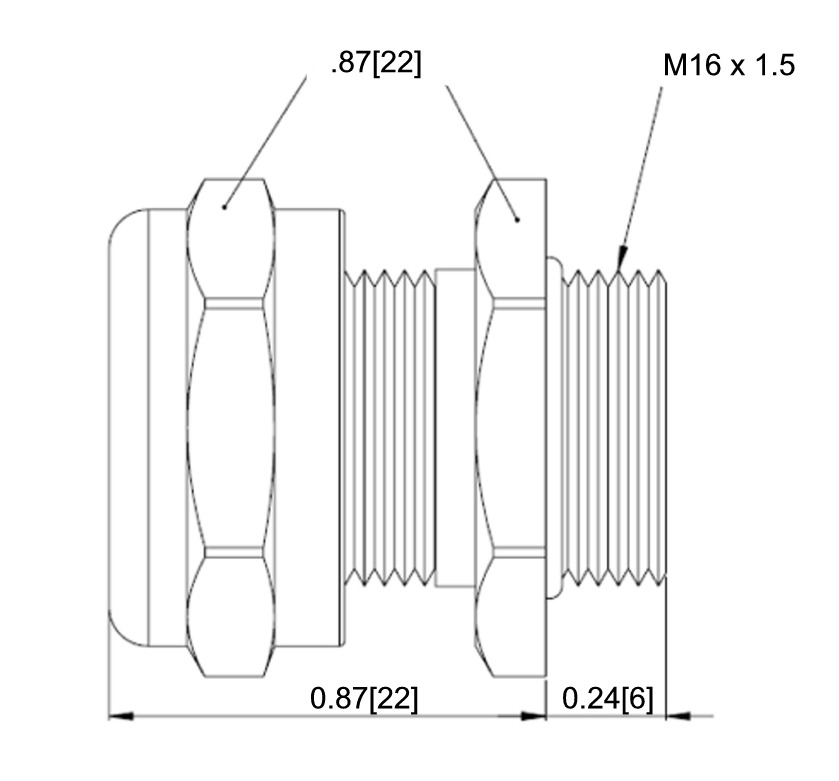

Specifications

  • Thread Size: M16 x 1.5
  • Cable O.D. Range: .20" - .39" (5 - 10 mm)
  • Through Hole Diameter: .63" (16 mm)
  • Body Length: .87" (22 mm)
  • Thread Length: .24" (6 mm)
  • Wrench Flat Dome: .87" (22 mm)
  • Wrench Flat Body: .87" (22 mm)

Features

  • 303 Stainless Steel Material with Viton Seal & PVDF Clamping Insert
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • German Lloyd
  • VDE

Sealcon CD16MA-SV stainless steel cable glands, strain relief fittings and cord grips are used to help customers in a number of industries when connecting wire or cable to various applications. This cord grip can provide a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. This stainless steel fitting with M16 x 1.5 thread provides your application with a high quality product. Applications that are benefitted the most from a stainless steel cable gland are those in which corrosion is a chief concern. This includes food processing, marine applications, off-shore rigs, chemical plants and other jobs that are in harsh environments.

Hummel 1.696.1600.50 Steel Cable Gland with M16 Thread

Additional Product Information
Sealcon Metric Stainless Steel Dome Fittings
Part Numbers Cable Range Thread Range
NBR Insert Viton Insert
CD12MA-SS CD12MA-SV .12" - .26" (3 - 6.5 mm) M12 x 1.5
CD12MR-SS CD12MR-SV .08" - .20" (2 - 5 mm) M12 x 1.5
CD16MA-SS CD16MA-SV .20" - .39" (5 - 10 mm) M16 x 1.5
CD16MR-SS CD16MR-SV .12" - .28" (3 - 7 mm) M16 x 1.5
CD20MA-SS CD20MA-SV .39" - .55" (10 - 14 mm) M20 x 1.5
CD20MR-SS CD20MR-SV .28" - .47" (7 - 12 mm) M20 x 1.5
CD25MA-SS CD25MA-SV .51" - .71" (13 - 18 mm) M25 x 1.5
CD25MR-SS CD25MR-SV .35" - .63" (9 - 16 mm) M25 x 1.5
CD32MA-SS CD32MA-SV .71" - .98" (18 - 25 mm) M32 x 1.5
CD32MR-SS CD32MR-SV .51" - .79" (13 - 20 mm) M32 x 1.5
CD40MA-SS CD40MA-SV .87" - 1.26" (22 - 32 mm) M40 x 1.5
CD40MR-SS CD40MR-SV .79" - 1.02" (20 - 26 mm) M40 x 1.5
