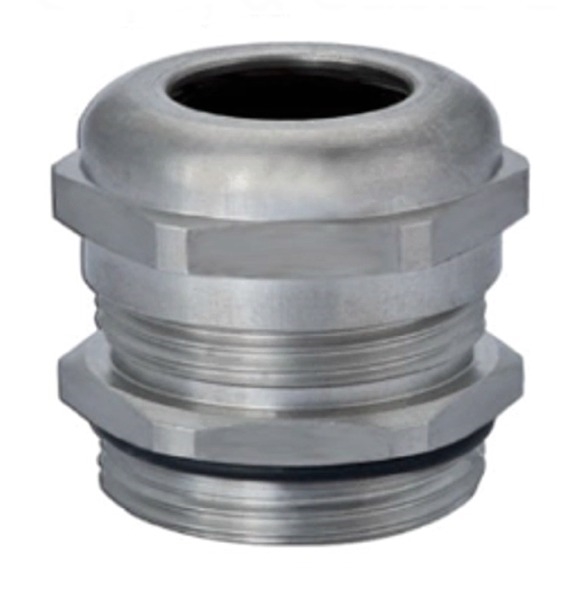

Sealcon CD40MA-SS M40 Dome .87" - 1.26" (22 - 32 mm) O.D. Cord Grip w/ NBR Insert

Sealcon CD40MA-SS M40 Cable Gland
Sealcon CD40MA-SS M40 Dome .87" - 1.26" (22 - 32 mm) O.D. Cord Grip w/ NBR Insert



Alternative Views:


Our Price: $66.41
MFG P/N: CD40MA-SS
MFG: Sealcon
Weight (lbs): 0.33

Product Code: CD40MA-SS
Qty:


Description


Sealcon CD40MA-SS high quality stainless steel cord grip is liquid tight to 150 psi. M40 x 1.5 Metric Thread, Accommodates .87" - 1.26" (22 - 32 mm) O.D cable. Sold Individually. (Locking nut sold separately) Also known as Hummel # 1.695.4000.50. Made from 303 stainless steel and features a Buna-N (NBR) insert. Note: This is a special order item. Please allow for a longer lead time.

Thread Size/Type M40 x 1.5
  • 303 Stainless Steel Material with Buna-N Seal & Nylon Clamping Insert
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval
Through Hole Dia. 1.57" (40 mm)
Body Length 1.38" (35 mm)
Thread Length .31" (8 mm)
Wrench Flat Dome/Body 1.97" (50 mm)

Sealcon CD40MA-SS stainless steel strain relief fittings, cable glands and cord grips are used in different industries when helping customers connect their wire or cable to various applications. This cable gland can provide a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. This stainless steel cord grip with M40 x 1.5 thread provides a product of exceptional quality for your application. When the risk of corrosion is a serious concern, stainless steel cord grips provide the highest benefit. Examples of applications can include food processing, marine applications, off-shore rigs, chemical plants and other jobs that are in harsh environments.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd
  • VDE
