Sealcon CD16NA-BR 1/2" NPT Dome .39" - .55" (10 - 14 mm) O.D. Cord Grip

Sealcon CD16NA-BR
Sealcon CD16NA-BR 1/2" NPT Dome .39" - .55" (10 - 14 mm) O.D. Cord Grip



Alternative Views:


Our Price: $8.25
MFG P/N: CD16NA-BR
MFG: Sealcon
Weight (lbs): 0.12

Quantity in Stock:33

Availability:
In Stock - Ships Today by 2PM EST
Product Code: CD16NA-BR
Qty:


Description

Sealcon CD16NA-BR high quality nickel plated brass cord grips are liquid tight to 150 psi. 1/2" NPT thread, Accommodates .39" - .55" (10 - 14 mm) O.D cable. Sold Individually. (Locking nut sold separately) Also known as Hummel# 1.609.1216.70


Thread Size/Type 1/2" NPT
  • Nickel Plated Brass Material with Buna-N Seal & Nylon 6/6 Splined Bushing
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval
  • Can be compatible with Arlington LPCG 507Z (Zinc, Cable O.D. 0.375"-0.75")
Through Hole Dia. .83" (21.1 mm)
Body Length 1.46" (37 mm)
Thread Length .51" (13 mm)
Wrench Flat Dome/Body .94" (24 mm)

Sealcon CD16NA-BR Nickel Plated Brass Cord Grips, Strain Relief Fittings or Cable Glands are used to help customers in all industries connect their cable or wire to their applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. This Nickel Plated Brass Strain Relief with 1/2" NPT thread will provide your application with a product made of exceptional quality. Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts. The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd

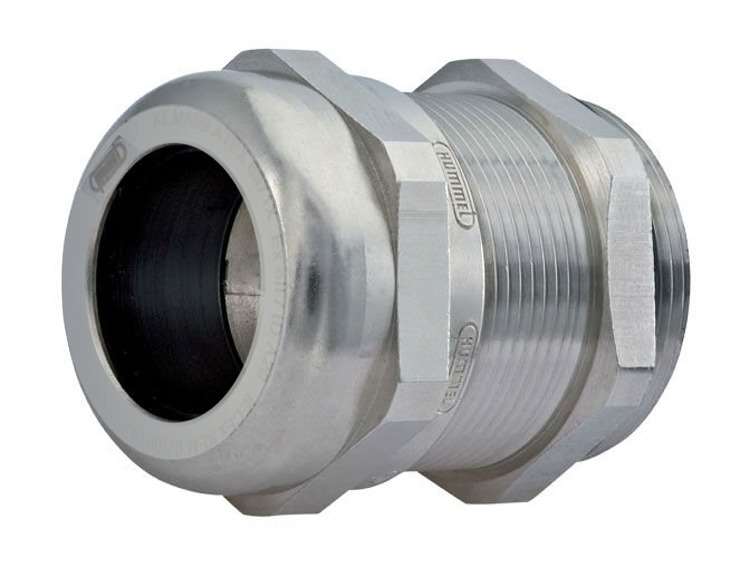

Sealcon CD16NA-BR Nickel Plated Brass Dome Cord Grip

Additional Product Information

Sealcon NPT Dome Cable Glands Comparison Chart
